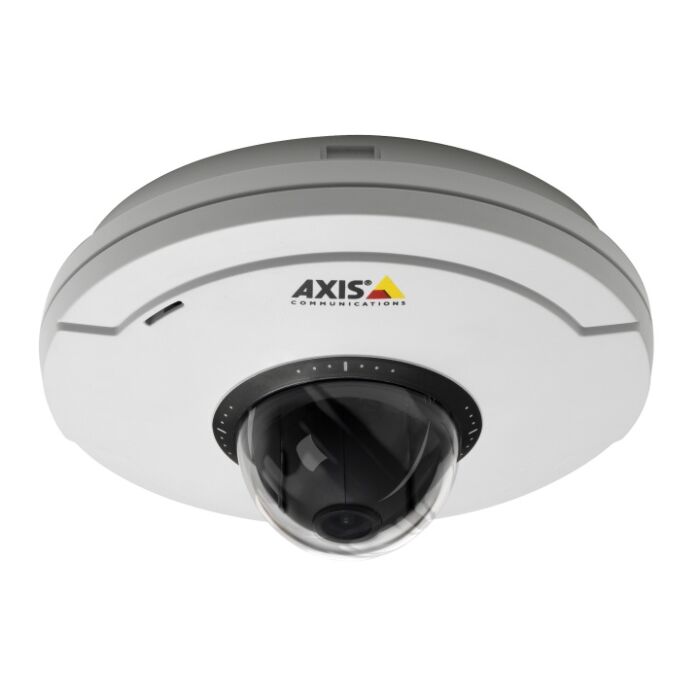

Axis M5014 Indoor PTZ Network Dome Camera 0399-001
Be the first to review this product
Quick Overview
The Axis M5014 Indoor PTZ Network Dome Camera provides a discreet security solution, measuring only 13cm in diameter and 5.6cm in depth. However, thanks to its Pan, Tilt, Zoom functionality, the M5014 can provide coverage of an area of up to 400 sq. m. whilst its IP51 rated housing ensures protection against dust and dripping water. What's more, the M5014 provides HDTV 720p image resolution at 1280x720 and is easy to install thanks to its Power over Ethernet support, allowing for video, power and PTZ control to be taken to and from the camera over one ethernet cable when used with a PoE midspan (not included).
More Key Features:
- Built-in microphone and audio detection
- MicroSD/SDHC card slot for on-board storage
- H.264 and Motion JPEG compression
- Frame rate of 30fps in all resolutions
Axis M5013/14 PTZ Quick Guide
Axis M5014 User Manual
Axis Product Comparison Sheet
Axis Network Cameras Portfolio
Axis Network Cameras Guide
FREE 30-day trial of Axis Camera Station software
Articles about Axis Network Cameras
More Key Features:
- Built-in microphone and audio detection
- MicroSD/SDHC card slot for on-board storage
- H.264 and Motion JPEG compression
- Frame rate of 30fps in all resolutions
Axis M5013/14 PTZ Quick Guide
Axis M5014 User Manual
Axis Product Comparison Sheet
Axis Network Cameras Portfolio
Axis Network Cameras Guide
FREE 30-day trial of Axis Camera Station software
Articles about Axis Network Cameras
Product Datasheets
Axis M5014 Indoor PTZ Network Dome Camera 0399-001 Datasheet (0.32MB)
Frequently bought together
Product Description
The Axis M5014 Indoor PTZ Network Dome Camera features:
- 1/4" Progressive scan CMOS image sensor
- 3.6mm lens with horizontal angle of view of 71°
- Minimum illumination of 1.4lux
- H.264 and Motion JPEG compression
- HDTV 720p image resolution up to 1280x720
- Frame rate of 30fps in all resolutions
- Built-in microphone for one-way audio
- Video motion detection and audio detection
- IP51 rated casing and clear dome
- Power over Ethernet IEEE 802.3af Class 3
- MicroSDHC memory card slot
Included in price:
- Drill template
- Mounting brackets for soft and hard ceilings
- Quick Guide
- CD with installation tools
- Recording software and User’s Manual
- Windows decoder 1-user license
- 1/4" Progressive scan CMOS image sensor
- 3.6mm lens with horizontal angle of view of 71°
- Minimum illumination of 1.4lux
- H.264 and Motion JPEG compression
- HDTV 720p image resolution up to 1280x720
- Frame rate of 30fps in all resolutions
- Built-in microphone for one-way audio
- Video motion detection and audio detection
- IP51 rated casing and clear dome
- Power over Ethernet IEEE 802.3af Class 3
- MicroSDHC memory card slot
Included in price:
- Drill template
- Mounting brackets for soft and hard ceilings
- Quick Guide
- CD with installation tools
- Recording software and User’s Manual
- Windows decoder 1-user license
Product Questions
Questions on Axis M5014 Indoor PTZ Network Dome Camera 0399-001
- From Colin at 28/11/2011 11:42
- Is this PTZ IP camera quiet? We'd like to use it in a quiet room to observe the desk and screen of a computer workstation operator working through a series of examined scenarios.
- Unfortunately Colin, the pan motor on this compact PTZ is relatively noisy. If you placed this camera adjacent to somebody working in quiet conditions they would certaily be aware of its pan motor moving the camera left/right.
- Do you find this question helpful? Yes No
- From Iain at 08/07/2011 14:09
- Can this camera be mounted with its base back to the wall?
Does the software/configuration allow for flip & mirror settings? - Hello Iain,
Sorry, No. This camera must be mounted with its dome downwards e.g. ceiling-mounted.
There are no flip/mirror settings in the software. - Do you find this question helpful? Yes No
- Can this camera be mounted with its base back to the wall?
Ask Your Own Question
Additional Information
| Image chip size | 1/4" |
| Image chip type | CMOS |
| Image Compression | H.264 & Motion JPEG |
| Compatible Recording Software | Axis |
| Audio | Listen to the camera |
| Auto-Focus | No |
| Indoor / Outdoor | Indoors only |
| Ingress Protection | IP51 |
| Colour / monochrome | Colour |
| POE built-in | Yes - no splitter required |
| POE Class | Class 3 (6.49-12.95W) |
| Max. Resolution | 1280 X 720 |
| Min. low-light lux | 1.5 |
| Supply Volts | POE only |
| Lens Mount | N/A |
| Lens Focal Length | 3.6mm |
| Viewing Angle | 71° |
| Aspect ratio | 16:9 |
| Megapixels | No |
| Supplied with lens | Yes |
| Accepts auto-iris lens | N/A |
| Max. Images per second | 30 |
| PSU included | No |
| Power Consumption | No |
| Built-In Storage | micro-SD, SDHC |
| Warranty | 3 Years |
| Video |
