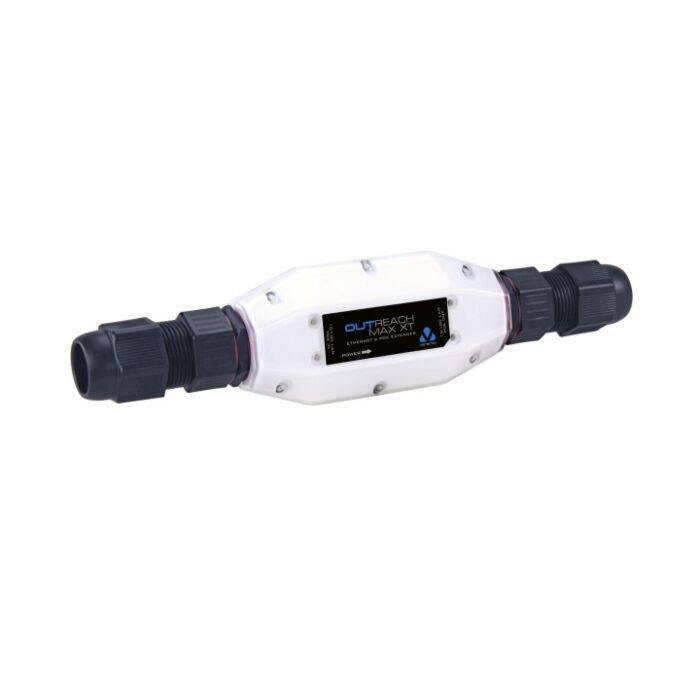

Veracity OUTREACH Max XT VOR-ORM-XT Outdoor Ethernet and PoE Extender
SKU: VOR-ORM-XT
Contact Us for Stock Levels
Key Features:
- Power Over Ethernet and Network Range Extender
- Instantly Doubles Cable Range to 200 Metres
- Extends Up To 800 Metres With Multiple Units
- No Local Power Required
- Full Unrestricted Network Bandwidth
- Universal 10/100 Compatibility
- Extends POE and POE+ Up To 60 Watts
- LED Status Indicators
- Dimensions: 105mm(L) x 40mm(W) x 22mm(H)
Please note that the VOR-ORM-XT may not be available for Next Working Day delivery. Please contact our sales team at [email protected] for stock inquiries.
Veracity Product Guide 2021
Veracity VOR-ORM-XT User Manual
Veracity VOR-ORM-XT Additional Installation Instructions
Veracity VOR-ORM-XT Product Brief
Details
OUTREACH Max XT lets you locate your external IP camera or wireless transmitter right where you want it, without being restricted by the standard 100 metre limit for Ethernet cables.
Based on Veracity's established OUTREACH Max extender, compatibility with regular 802.3af PoE and 802.3at PoE plus is assured, with no configuration or setup required.
Its rugged and streamlined enclosure features IP66-rated connector covers that assemble easily around conventionally terminated Cat 5e and Cat 6 cables. Guaranteed operation over an extended temperature range and versatile mounting options mean OUTREACH Max XT is suited to a wide range of installation scenarios.
The below diagram shows how a single OUTREACH Max device doubles the cable range to a POE IP camera. Each cable segment can be up to 100 metres.
If POE and network extension beyond 200 metres is required, more than one OUTREACH Max may be installed in series. For example, a 300 metre connection between a POE switch and a 10 watt IP camera can be achieved by fitting two OUTREACH Max units at 100 metre intervals along the cable.
Or, a 5 watt IP camera may be located up to 800 metres away, using seven OUTREACH Max units and an OUTSOURCE POE Injector.
The second diagram shows Veracity's OUTSOURCE Plus providing enough power to allow 300 metres of extension to a POE Plus wireless access point, using two OUTREACH Max units located at 100 metre intervals.
And, because the OUTREACH Max simply restores the network connection every 100 metres, the full (200 Mbit/s) bandwidth of 100Base-T Ethernet is maintained across the entire link. This maximises performance and transparency with no risk of a reduced or unpredictable bandwidth, even at distances of several hundred metres.
By installing an OUTREACH Max for every extra 100 metres of cable, POE and Ethernet can be extended for considerable distances with no loss of network bandwidth. The limit depends on which POE Source is used and on how much power the IP camera or other device requires.
Maximum Extension Distance Comparison Table
