TP-Link EAP650-Wall AX3000 Wall Plate WiFi 6 Access Point
SKU: EAP650-Wall
In stock

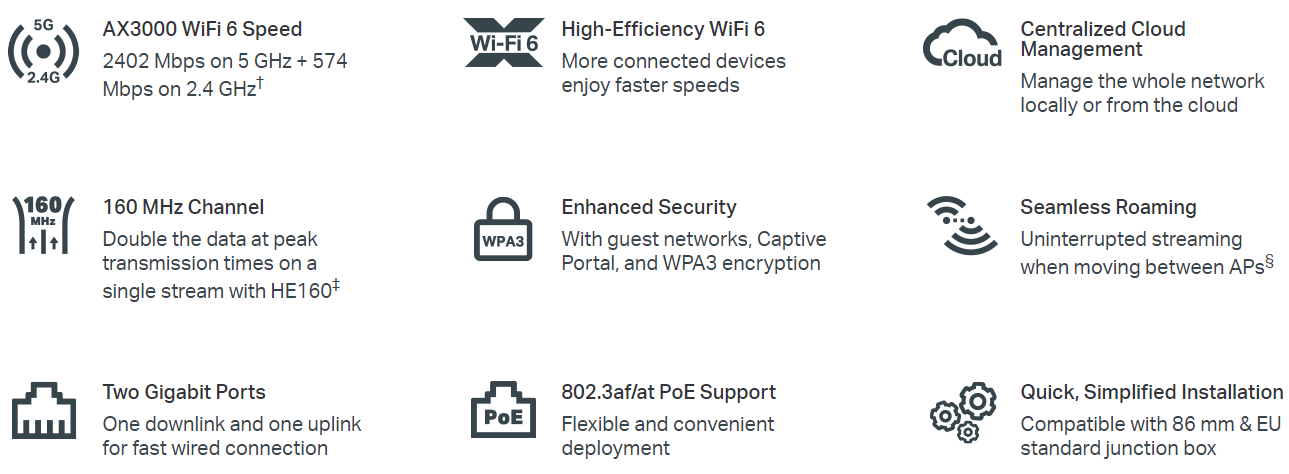

Key Features:
- Blazing-fast AX3000 WiFi 6 speeds
- High network efficiency
- Complete in-room WiFi coverage
- Centralised cloud management
- Gigabit port
- Secure guest network
- Easy installation and PoE support
TP-Link Omada Access Point User Guide
TP-Link Omada Access Point Installation Guide
TP-Link Wall Plate EAP Regulatory Compliance
This product may not be immediately available from UK stock.
Please contact us before purchasing for an accurate lead time.
Details
The TP-Link EAP650-Wall is an AX3000 Wall Plate WiFi 6 access point with WiFi speeds of 574Mbps on 2.4GHz and 2402Mbps on 5GHz. WiFi 6 is able to provide users with faster speeds, lower lag, less interference and higher capacity.
The EAP650-Wall features a Gigabit port to bridge the network. The gigabit downlink port allows users to connect a wired device such as a switch, PC, printer or smart TV to the gigabit network. Extra wiring is not necessary thanks to support for 802.3af/802.3at PoE. Simply plug it into your existing Ethernet cables and you're ready.
Other Features:
- Secure Guest Network up to 16 SSIDs: provides enhanced security to guests. Different SSIDs also enable flexible access management.
- Boost business with Facebook WiFi and SMS login: captive portal and 802.1x authentication help maintain authorised guests to use the network.
- WPA3 for worry-free open public networks: provides more data security for previously unsecured and open WiFi hotspots.
| Hardware Features | |
| Interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 1× 10/100/1000 Mbps Ethernet Port |
| Power Supply | 802.3af/at PoE |
| Power Consumption | 11.5W |
| Dimensions | 86 × 86 × 42.6 mm mm |
| Antenna Type | 2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 5 dBi |
| Mounting | Wall Plate Mounting (Kits included) |
| Wireless Features | |
| Concurrent Clients | 100+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming§ • Beamforming • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm (2.4GHz, EIRP) <22 dBm (5GHz band1 & 2, EIRP) <22 dBm (5GHz band3, EIRP) |
| Management | |
| Omada App | Yes |
| Centralised Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Others | |
| Certification | CE, RoHS |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Package Contents:
- EAP650-Wall
- Mounting kits
- Installation guide
