TP-Link EAP650 AX3000 Ceiling Mount WiFi 6 Access Point
SKU: EAP650
In stock
Key Features:
- Ultra-fast WiFi 6 speeds
- High-efficiency WiFi 6
- Centralised cloud management
- 160 MHz channel
- Seamless roaming
- Omada mesh
- PoE+ powered
- Ultra-slim design
TP-Link Omada Access Point User Guide
TP-Link Omada Access Point Installation Guide
This product may not be immediately available from UK stock.
Please contact us before purchasing for an accurate lead time.
Details
The TP-Link EAP650 is a dual-band WiFi 6 access point that is able to provide WiFi speeds of 574 Mbps on 2.4GHz and 2402 Mbps on 5GHz.
This access point has been designed for use in business environments that require high-performance WiFi such as; hospitality, education, retail, and offices. WiFi 6 features such as OFDMA and MU-MIMO can handle multiple clients across congested environments enabling users to enjoy faster speeds on more devices with less lag.

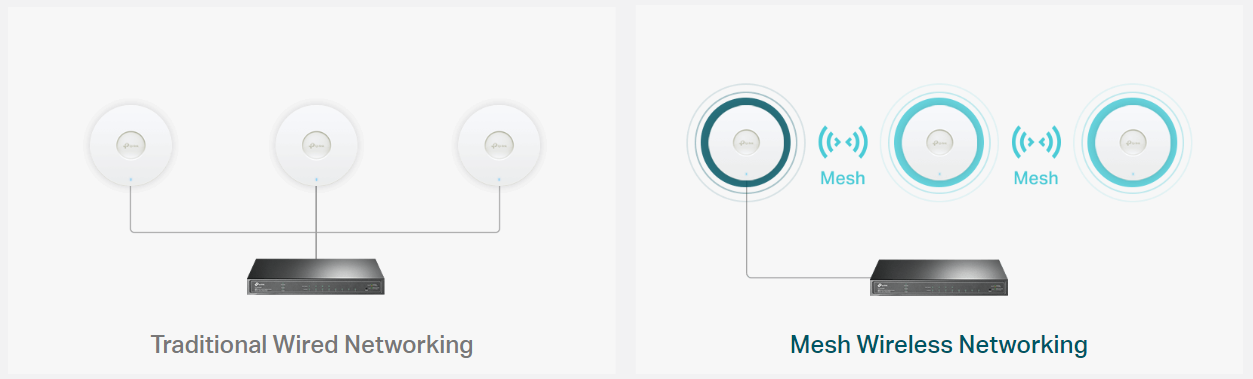

Mesh technology means that the EAP650 saves users from extra wires by wirelessly extending their WiFi signal further and providing flexibility for hard-to-wire areas.
As well as this fast roaming ensures smooth and uninterrupted streaming for users even when moving around by switching the client automatically to the access points with the optimal signal.
Other Features:
- Secure Guest Network up to 16 SSIDs: provides enhanced security to guests. Different SSIDs also enable flexible access management.
- Boost business with Facebook WiFi and SMS login: captive portal and 802.1x authentication help maintain authorised guests to use the network.
- WPA3 for worry-free open public networks: provides more data security for previously unsecured and open WiFi hotspots.
- Band steering: automatically moves dual band devices onto wider 5GHz band for faster connections.
- Load balance: ensure large numbers of users have smooth network experiences in high-density business networks.
- Airtime fairness: increases average network throughput in heavily congested environments.
| Hardware Features | |
| Interface | 1 x 2.5 Gigabit Ethernet (RJ45) Port (supports IEEE802.3at PoE) |
| Power Supply | • 802.3at PoE • 12 V / 1.0 A DC (EU), 12 V / 1.5 A DC (US) • 48V Passive PoE |
| Power Consumption | 13.5W |
| Dimensions | 160 x 160 x 33.6mm |
| Antenna Type | Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
| Mounting | • Ceiling /Wall Mounting (Kits included) • Junction Box Mounting |
| Wireless Features | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, , band1 & band2, EIRP) <30 dBm(5 GHz, , band3, EIRP) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz) |
| Management | |
| Omada App | Yes |
| Centralised Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Others | |
| Certification | CE, FCC, RoHS |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Package Contents:
- EAP650
- Power Adapter
- Ceiling/wall mounting kits
- Installation guide
