Axis Audio Manager Pro C7050 Mk II Software 02071-003
SKU: 02071-003 ~ EOL
Out of stock
The Axis C7050 Mk II is now End of Life.
May we recommend the Axis C7050 Mk III as a direct replacement.
Key Features:
- One single-user interface
- Central control
- Zone management
- Audio content management
- Scheduling
Hardware server specification:
- Processor: Intel Pentium Gold G5400T
- Memory: 8GB
- Storage: 128GB
Axis C7050 Mk II User Manual
Axis C7050 Mk II Installation Guide
Axis C7050 Mk II Guide
Axis Product Comparison Table
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
The Axis Audio Manager Pro C7050 Mk II is a complete audio management package that is inclusive of both hardware and software. The software comes pre-installed on a Windows PC running Windows 10 IoT.
This audio package provides easy, remote management of large IP audio installations. Users can take control of their audio system from one single user interface which handles system setup of audio devices, zone management, audio content management, and audio scheduling.
The C7050 Mk II enables users to handle live or scheduled announcements, emergency messages, broadcast background music etc. This can be done individually in separate zones or to all devices in all zones.
Axis Audio Manager Pro C7050 Mk II
| Processor | Intel Pentium Gold G5400T |
| Memory | 8GB (2 x 4GB) |
| Storage | 128GB |
| Operating System | Microsoft Windows 10 IoT Enterprice Operating system recovery: Yes |
| Power | Max. 60W, 100V AC to 240V AC, 1.8A, 50/60 Hz, 12V DC, 5 A, External power adapter |
| Connectors | 4 x USB 3.1 (2 front and 2 rear) 1 x RJ45 Ethernet 2 x DP++ 1 x Audio line in 1 x Audio line out |
| Operating Conditions | 0°C to 35°C Humidity 5% ~ 95% |
| Dimensions | 207 x 207 x 43mm |
| Weight | 1.8kg |
Axis Audio Manager Pro
| Supported Devices | 5000 audio devices |
| Licenses | Unlimited |

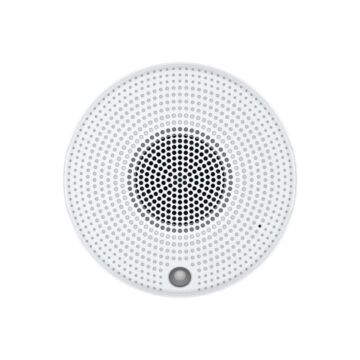

| Compatible Products | C1004-E White C1044-E Black C2005 C3003-E C8033 C8210 C1310-E C1410 |
| Operating System | Windows 10 IoT 2016 LTSB Windows Server 2016, 2019 |
| Minimum Requirements | Hardware installation: Intel Core i3-7100T Virtual machine support: VMware ESXi, Microsoft Hyper-V, and Microsoft Windows Datacenter |
| Audio Streaming | Opus 48 kHz stereo with 64, 192 or 320kbps |
| Audio Sources | C8033 and C8210 as line-in audio sources Internet radio supported file formats: m3u, pls, asx |
| Supported Audio File Formats | mp3, mp4, mpeg, aac, wma, ogg, flac, wav |
| Supported Protocols | IPv4, HTTP, HTTPS, DNS, NTP, RTP, RTSP, TCP, UDP, DHCP, SIP, mDNS, M3U |
