4.7 1 Axis F34 4 Channel HDTV 720P/1080P Quad View Main Unit 0778-001

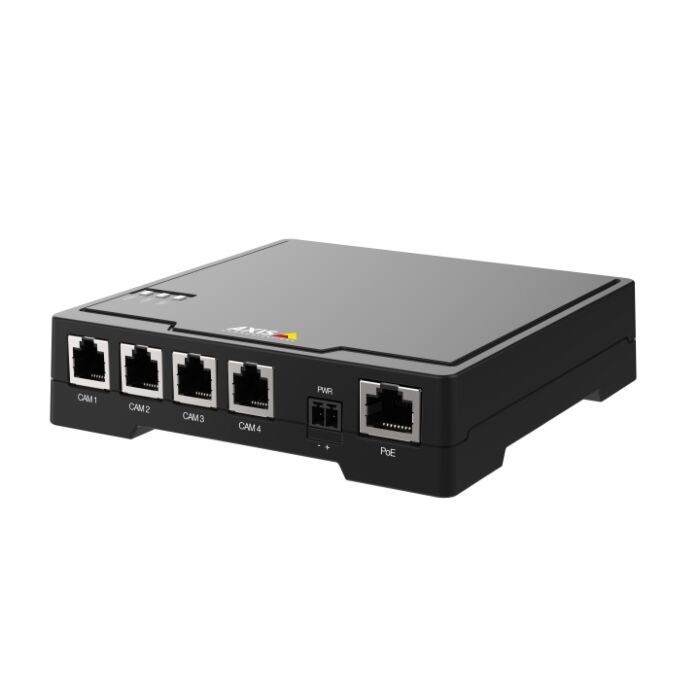

Axis F34 4 Channel HDTV 720P/1080P Quad View Main Unit 0778-001

Availability: Contact Us for Stock Levels

£435.60 Incl VAT Excl VAT. £363.00

Axis 0778-001

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Axis F34 supports up to four Axis F sensor units for surveillance of four closely situated areas. It enables a cost-effective, highly discreet solution for multi-view surveillance.

Included Accessories:
- Rubber feet
- Mounting bracket
- Installation guide
- Windows decoder 1-user license
- AVHS Authentication key
Axis F34 User Manual
Axis F34 Installation Guide
Axis Assigning IP Address User Manual
Axis Product Comparison Table
Axis Product Guide
FREE 30-day trial of Axis Camera Station software
Articles about Axis Network Cameras

Product Datasheets

Axis F34 4 Channel HDTV 720P/1080P Quad View Main Unit 0778-001 Datasheet (0.26MB)

Find use-IP on Youtube   Find out more at the use-IP forum

Key Features

- Streams 1080P/HDTV 720P video from four sensor units simultaneously
- Quad view stream
- Axis' Zipstream technology
- Two built-in SD card slots

Additional Information

Weight 238.0000
Image chip size N/A
Image chip type N/A
Image Compression H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles Motion JPEG
Indoor / Outdoor Indoors or Outdoors
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 1920 X 1080
Supply Volts 8-28V DC or PoE
Lens Mount N/A
Aspect ratio 16:9
Supplied with lens Yes
Accepts auto-iris lens Yes
Max. Images per second 25
Power Consumption max. 12.5W
Warranty 1 Year
Launch Date Autumn 2015

Product Questions (0)

No questions yet. Be the first to ask the question!


A compact Main Unit that can be installed remotely thanks to its POE abilities Review by Richard Bucks

Allowing up to 4 camera units to be attached, I now have the ability to expand and add to the one IP camera I already have, at a later date. The unit is compact and easy to install. Configuration is u...
