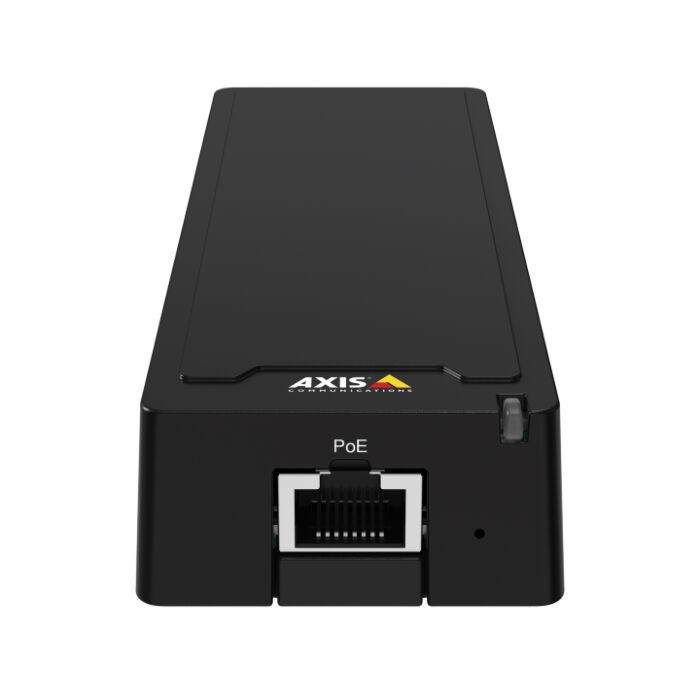

Axis FA51 Single Channel Main Unit with HDMI Output 02196-001
SKU: 02196-001
Contact Us for Stock Levels
Key Features:
- Single Channel
- Main Unit for FA Sensors
- HDMI Output
- HDTV 1080p
- Axis Face Detector Pre-Installed
- 2 Configurable I/O Ports
- Compatible With All Axis FA Sensor Units
- Axis Edge Vault
- 1024 MB RAM
- 512 MB Flash
- H.264 Video Compression
- On-board Storage Space for MicroSD/SDHX/SDXC
This product is powered by PoE.
Please note: this product does not come with a power supply.

This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.

Details
The Axis FA51 is a single channel main unit to be used in conjunction with any of the FA sensor units (including IR sensors). Featuring an HDMI output enabling users to display the live view on a public viewing monitor, this compact system allows for discreet surveillance in stores, banks or offices.
When connected to a PVM (Public Viewing Monitor) this cost-effective main unit can use Axis Face Detector to highlight faces within bounding boxes. This is a proactive way to reduce shoplifting as the subjects will clearly see they are being monitored. The FA51 also supports audio and one configurable input/output port enabling users to connect external devices to activate lights and trigger audio messages to act as a further deterrent.
As well as Axis Face Detector, other analytics included are:
Axis Fence Guard - Detects and triggers an event when objects cross a pre-defined virtual line within the camera view.
Axis Loitering Guard - Tracks moving objects and triggers an event if they have been in an area for too long.
Axis Motion Guard - Detects and triggers an event when objects move within a predefined area within the camera view.

The FA51 is compatible with all Axis FA sensors and supports one HDTV 1080p video stream at full frame rate to deliver excellent video quality. Also, thanks to Forensic WDR the FA51 provides a clear image when faced with both light and dark areas in one scene.
When connected directly to the PVM, the FA51 main unit offers lower latency and reduces the risk of network issues. So long as there is power, if the network goes down the main unit will continue to display images.
The divided network camera concept consists of the main unit connected to a highly discreet sensor unit (which is made up of a lens and image sensor). This allows for seamless blending into environments such as ATMs, self-service check-outs and monitors.
Please note, the sensor units are sold separately.
Included Accessories:
- Installation Guide
- Windows Decoder 1-user license
- Terminal Block Connector
