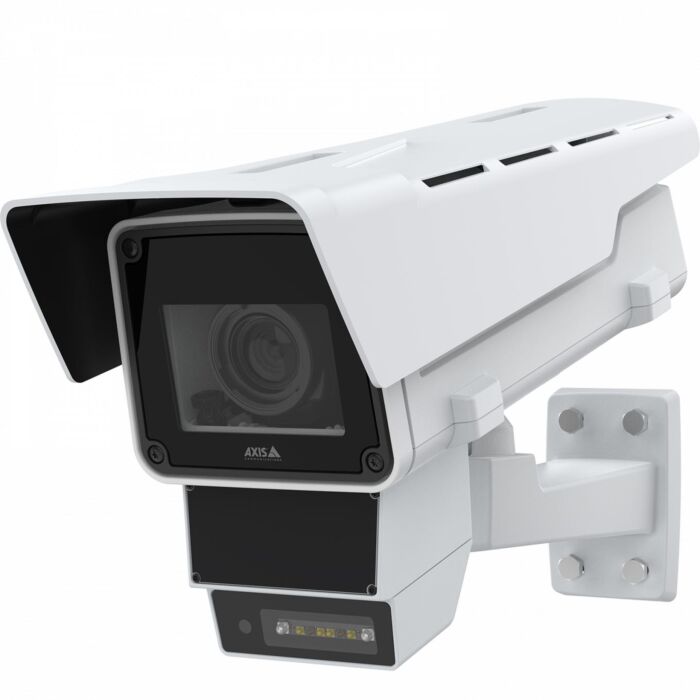

Axis Q1656-DLE Radar-Video Fusion Camera 02420-001
SKU: 02420-001
Contact Us for Stock Levels
Key Features:
- 4MP resolution
- Two powerful technologies in one device
- Increased scene intelligence
- Reliable detection 24/7
- Built-in cybersecurity features
- Premium Axis Q-link camera functionality
- IP66 weather-resistant
- IK08 impact-resistant
- Support For MicroSD/MicroSDHC/MicroSDXC Card
- ONVIF
This product is can be powered by 10-28V DC or PoE.
We recommend using PoE.
Please note: this product does not come with a power supply and must be purchased separately.
Axis Q1656-DLE User Manual
Axis Q1656-DLE Installation Guide
Axis Product Comparison Table
This product may not be immediately available from UK stock, in which case it will incur a lead time to fetch from European stock.
Please contact us before purchasing for an accurate lead time.
Details
The Axis Q1656-DLE combines both video and radar analytics in one device. Video analytics provide precise localisation and object classification powered by deep learning and radar analytics add distance and speed measurements and classification based on deep learning. This combination provides improved scene intelligence and the forensic value of video.
Not only this but the Q1656-DLE joins two premium devices, and users get a superior Q-line camera with excellent image usability combined with a fully integrated radar. The radar is able to detect objects over wide areas with little to no light and visualises the speed and distance of moving objects directly in the application view. As well as this users can use the radar separately to guide a standalone PTZ camera.
Featuring a robust design, the Q1656-DLE is protected by an IP66 weather-resistant and IK08 impact-resistant housing. This protects the camera against both harsh outdoor weather conditions and vandal attempts.
Users of this camera benefit from double the technology with just one device to install, one IP address and one video management software reducing both installation and lifetime costs. Along with this users can save energy as radar 'sees' in the dark enabling triggers to activate floodlights, IR or facade lights to be set only when deterrence, visual verification, or forensic detail is required.
Radar
| Sensor | FMCW (Frequency Modulated Continuous Wave) |
| Object Data | Range, direction, velocity, object type |
| Frequency | Channel 1: 61.00–61.25 GHz Channel 2: 61.25–61.50 GHz |
| RF Transmit Power | <100 mW (EIRP) License free. Unharmful radio-waves |
| Recommended Mounting Height | 3.5–12 m (11–39 ft)a |
| Recommended Mounting Tilt | 15–45° |
| Detection Range | 5–60 m (16–200 ft) when detecting a person 5–90 m (16–300 ft) when detecting a vehicle |
| Radial Speed | Up to 55 km/h (34 mph) |
| Field of Detection | Horizontal: 95° |
| Speed Accuracy | +/- 2 km/h (1.25 mph) |
| Distance Accuracy | 0.5 m (1.6 ft) |
| Angle Accuracy | 1° |
| Spatial Differentiation | 3 mc |
| Data Refresh Rate | 10 Hz |
| Coverage | 2700 m2 (29000 sq ft) |
| Object Classification | Humans, vehicles |
| Radar Controls | Multiple detection zones, crossline detections, and exclude zones with filters for short-lived objects, object speed, and object type. Radar transmission on/off, reference map with rotation and cropping, grid opacity, zone opacity, colour scheme, trail lifetime, detection sensitivity, swaying object filter, frequency channel |
Included Accessories:
- Axis T94Q01A wall mount
- Sunshield
- Connector kit
- Resistorx T20 tool
- Installation guide
- Windows decoder 1-user license
