Axis Q1656-BE 4MP Outdoor Network Box Camera 02168-031
SKU: 02168-031
Contact Us for Stock Levels
Key Features:
- 4MP resolution
- 1/1.8" progressive scan RGB CMOS
- Up to 60fps
- Forensic WDR
- Lightfinder 2.0
- Support for analytics with deep learning
- Built-in cybersecurity features
- Support for i-CS lens (lens NOT included)
- Customisable for specific needs
- IP66/IP67 rated weather-resistance
- IK10 impact-resistance
- Multiple language options
- ONVIF
This product can be powered by 10-28V DC or PoE.
We recommend PoE for ease of use.
Please note: this product does not come with a power supply.

Axis Q1656-BE Repainting Instructions
Axis Assigning IP Address User Manual
Axis Product Comparison Table

Details

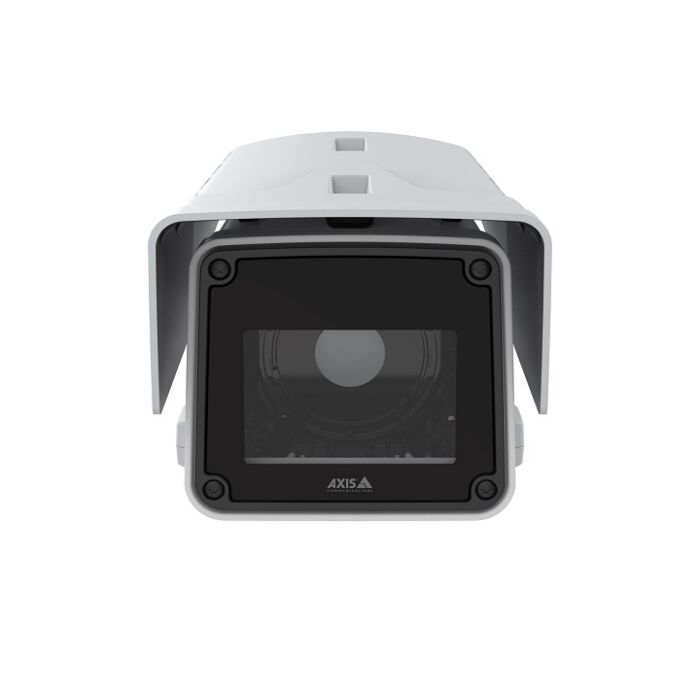

The Axis Q1656-BE is a 4-megapixel box camera that delivers high quality images even in poor lighting conditions thanks to features such as Lightfinder 2.0. This unit is supplied without a lens or mount to enables users to fully customise the camera in order to meet their specific requirements.
Based on the latest Axis system-on-chip (SoC) ARTPEC-8 and featuring a deep learning processing unit (DLPU) the need for expensive servers is eliminated and allows for a faster and more scalable system. Axis Object Analytics offers detection and classification of humans, vehicles and types of vehicles tailored to users specific requirements.
The Q1656-BE has been designed for easy and reliable installation in a wide range of applications including car parks, city centres, train stations, construction sites etc. The unit is enclosed in a robust, impact resistant IK10-rated housing to protect the unit from vandal attempts. The IP66/IP67, NEMA 4X, and NEMA TS2 water and weather-resistant camera can also withstand winds up to 60m/s.
Remote zoom and focus and support for PoE and redundant DC power offers users flexible installation and maintenance without the need for physically adjusting the cameras focus yourself. As well as this surge protection and an intrusion switch ensure secure operation and built-in cybersecurity features prevent unauthorised access and safeguard the system.
Included Accessories:
- Sunshield
- Connector kit
- Resistorx T20 tool
- Installation guide
- Windows decoder 1-user license
Optional Accessories:
- Lens CS 4~10mm F0.9 P-Iris
- Lens i-CS 9~50mm F1.5 8MP
- Lens i-CS 1/1.8" 3.9~10mm F1.5
- T94Q01F Ceiling and Column Mount
- TQ1501-E Crane and Traffic Mount
- TQ1601-E Conduit Back Box
- T98A16-VE Surveillance Cabinet
