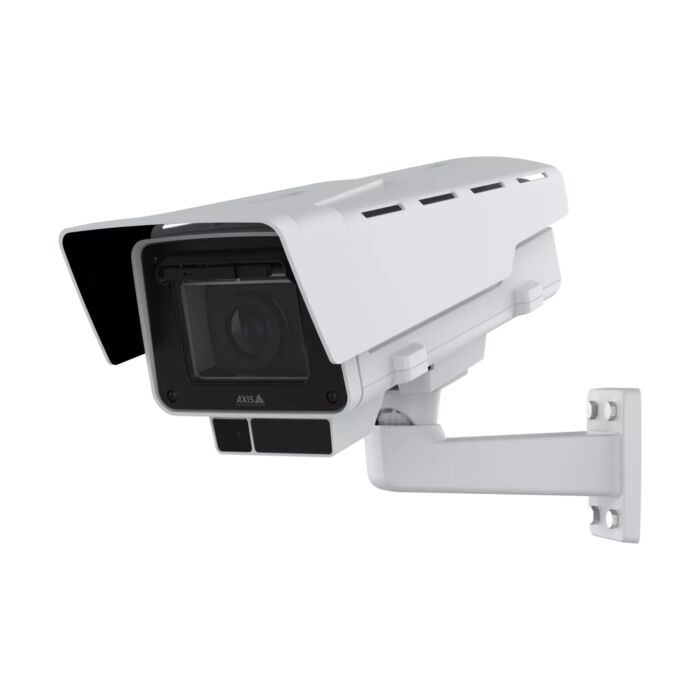

Axis Q1728-LE Outdoor 8MP Block Camera
SKU: 03210-001/03211-001
Contact Us for Stock Levels
Key features:
- 8MP (3840x2160) Resolution
- Varifocal Lens with Remote Zoom and Focus
- Lens Focal Length: 13mm or 48mm
- Forensic WDR up to 120dB
- Lightfinder 2.0
- OptimizedIR
- Zipstream
- Next-generation AI analytics
- DLPU compute capabilities (Deep Learning Processing Unit)
- Built-in cybersecurity with Axis Edge Vault
- IP66/67- and IK10-rated
- Built-in Wiper
- Operating Conditions (temperature: -40°c to 50°c) (humidity: 10 to 100% RH (non-condensing)
- 5 year warranty

This product is powered by 10-28V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Axis Q1728-LE User Manual
Axis Q1728-LE Installation Guide
Axis Q1728-LE Repainting Instructions
Axis Q1728-LE Dimensions
Axis Q1728-LE 48mm Dimensions
Axis Product Comparison Table

Details
Built on ARTPEC-9, the Axis Q1728-LE AI-powered camera offers 8MP resolution and a large 1/1.2" sensor for outstanding performance even in low-light. A deep learning processing unit lets you run advanced features and powerful analytics on the edge. Preinstalled with Axis Object Analytics, it detects and tracks objects, and Axis Image Health Analytics notifies you if your image is blocked, degraded, underexposed, or redirected. Axis Zipstream with support for AV1 and H.264/H.265 significantly reduces bandwidth and storage needs. Furthermore, it's available with a wide or tele lens, and a front window with carbon nanotube film heater guarantees great images every time.
Features Explained:
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- AXIS Object Analytics comes pre-installed, and offers a selection of analytics for human and vehicle classification, powered by AI-based algorithms.
Object classes: humans / vehicles (types: cars, buses, trucks, bikes)
Features: line crossing, object in area, occupancy in area, up to 10 scenarios, visualised metadata (with trajectories and colour-coding), polygon include/exclude areas, and, ONVIF motion alarm event.
- Lightfinder technology helps Axis cameras to deliver high-resolution, full-colour video in near darkness, stripping away noise to make dark areas visible, and discerning colour in low light. This keeps surveillance capabilities working their best at all times, with clear footage regardless of lighting conditions within a scene.
- WDR (Wide Dynamic Range) helps to ensure that camera images are usable and clear. In some scenes, there can be a contrast between the darkest and brightest spots in a scene, this can cause the image to be under or overexposed making it difficult, even impossible to identify objects and people. WDR technology can help rectify this issue, producing clear images regardless of difficult light scenarios.
- Electronic image stabilisation enables the camera to provide smooth video even in scenarios where the camera is subject to vibrations. This can occur when cameras are mounted on high poles or near busy roads and can be shaken by winds or passing traffic
DORI (Detect, Observe, Recognise, Identify):
| Detect | Observe | Recognise | Identify | |
| Definition | 25px/m | 63px/m | 125px/m | 250px/m |
| 13mm (wide/tele) | 84.6m/177.9m | 33.6m/70.6m | 16.9m/35.6m | 8.5m/17.8m |
| 48mm (wide/tele) | 211m/672.9m | 83.7m/267m | 42.2m/134.6m | 21.1m/67.3m |

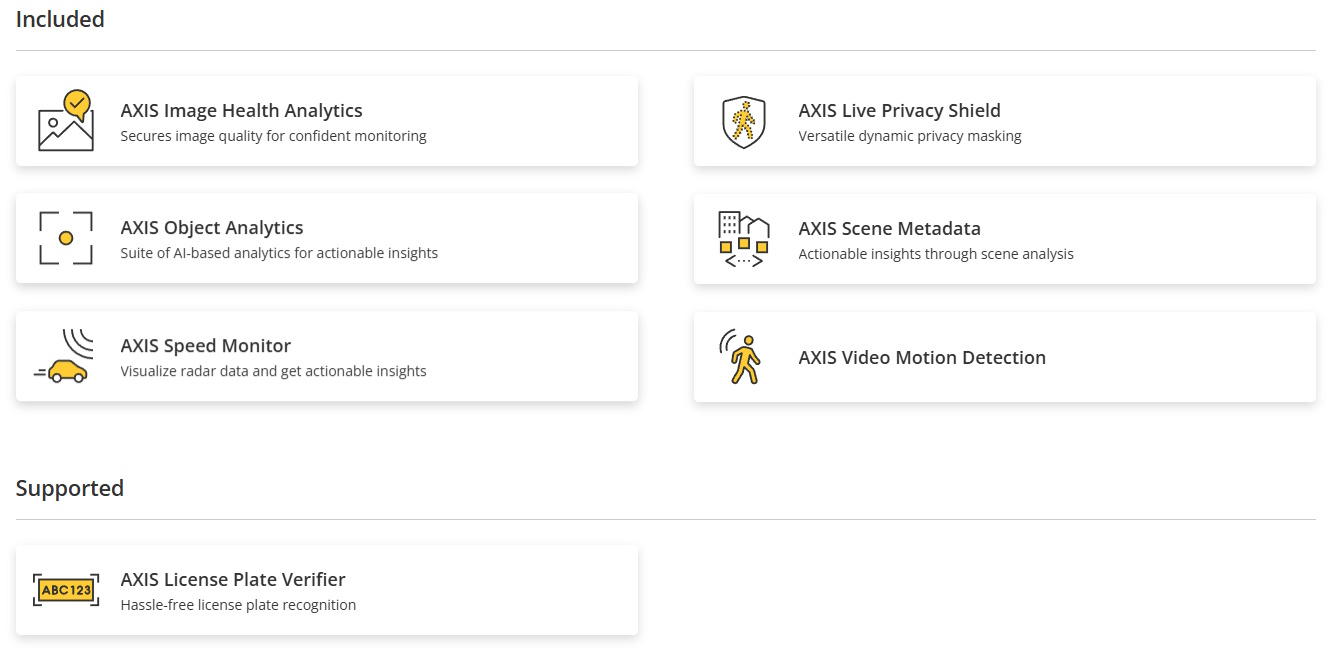

Supported Analytics:

Box Content:
- Q1728-LE Camera
- Installation Guide
- Owner Authentication Key
- Connector Guard
- Cable Gaskets
- TQ1003-E Wall Mount

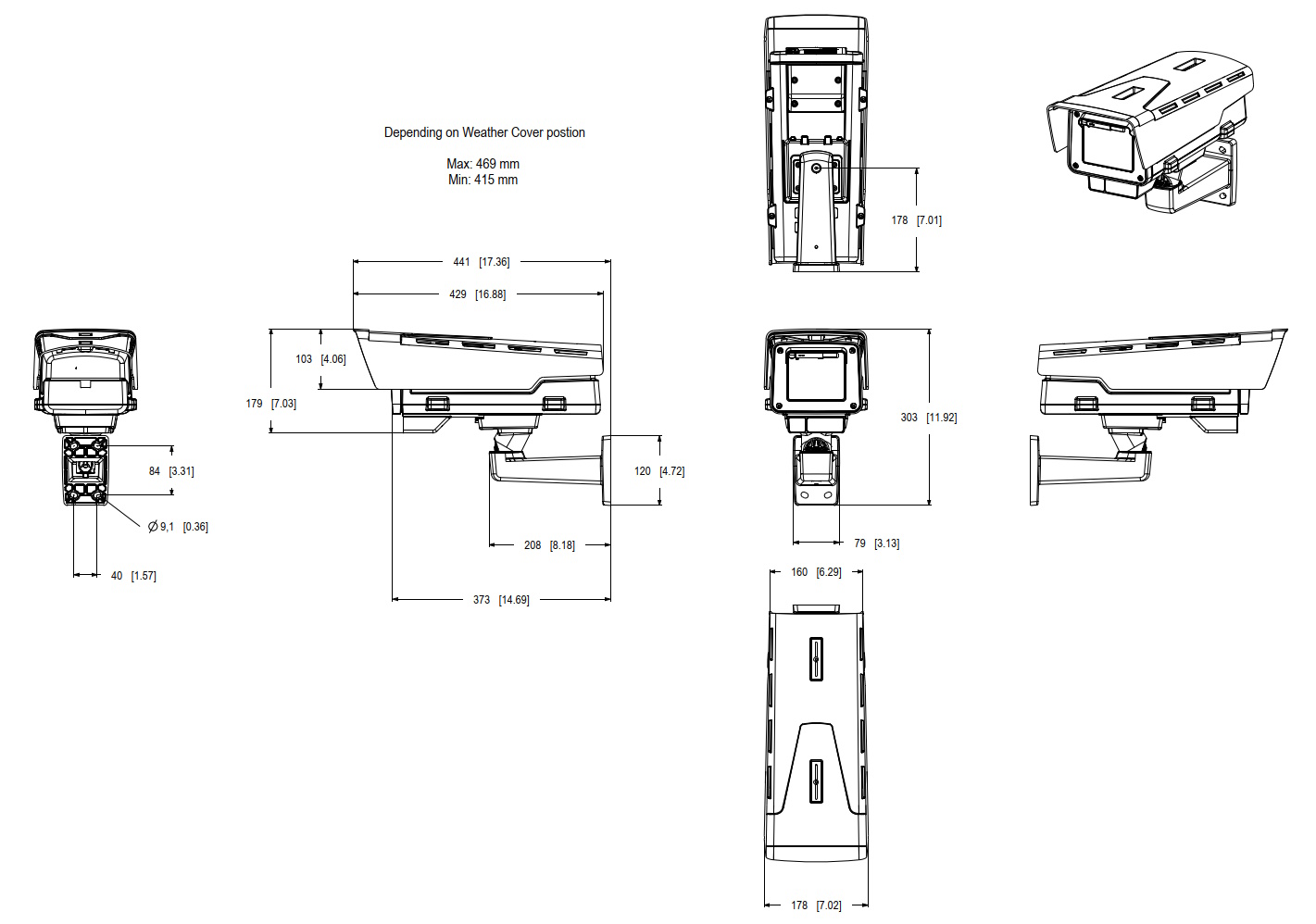

Dimensions:
13mm

48mm
