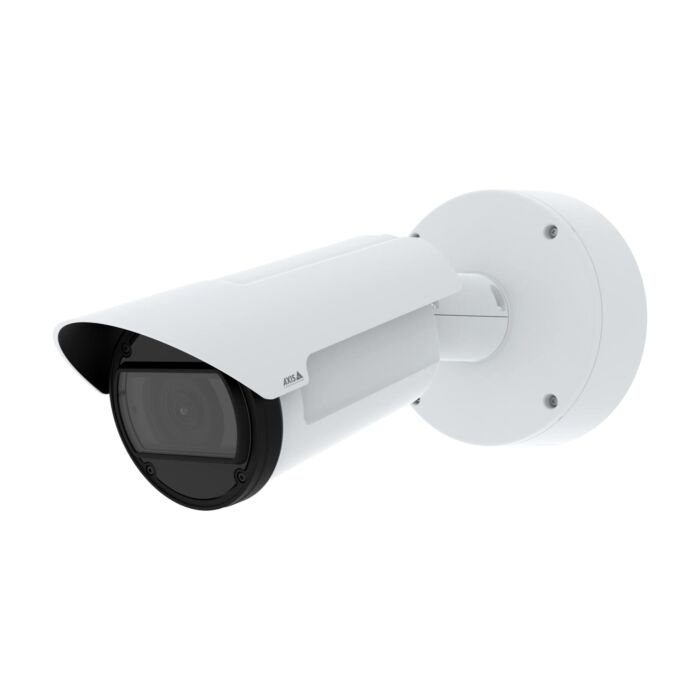

Axis Q1806-LE 4MP Bullet Camera
SKU: 02506-001
Available for delivery in 7~10 days
Key features:
- 4MP (2880x1620) Resolution, up to 90fps
- 32x Optical Zoom
- PoE out to Power an Additional Device
- Electronic Image Stabilisation
- Forensic WDR up to 120dB
- Supports Deep Learning Analytics
- DLPU compute capabilities (Deep Learning Processing Unit)
- Built-in Cybersecurity Features, with Axis Edge Vault
- Memory - 2048 MB RAM, 8192 MB Flash
- Operating Conditions (temperature: -40°c to 60°c) (humidity: 10 to 100% RH (condensing)
- IP66/67 Ingress Protection
- IK10 rated for Vandal Resistance
- 5 year warranty
This product is powered by PoE.
Please note: this product does not come with a power supply.
Axis Q1806-LE User Manual
Axis Q1806-LE Installation Guide
Axis Q1806-LE Repainting Instructions
Axis Q1806-LE Dimensions
Axis Product Comparison Table
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
The Q1806-LE is a 4MP high-performance bullet camera that can achieve up to 32x optical zoom. It is equipped with Electronic Image Stabilisation, Forensic WDR, Deep Learning Analytics, and more. As well as this, the Q1806-LE can supply PoE out to other devices to power them, such as a strobe siren or audio speaker.
DORI (Detect, Observe, Recognise, Identify):
| Detect | Observe | Recognise | Identify | |
| Definition | 25px/m | 63px/m | 125px/m | 250px/m |
| Distance (wide/tele) | 87.7m/2732.1m | 34.8m/1084.2m | 17.5m/546.4m | 8.8m/273.2m |
Features Explained:
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- AXIS Object Analytics comes pre-installed, and offers a selection of analytics for human and vehicle classification, powered by AI-based algorithms.
Object classes: humans / vehicles (types: cars, buses, trucks, bikes)
Features: line crossing, object in area, occupancy in area, up to 10 scenarios, visualised metadata (with trajectories and colour-coding), polygon include/exclude areas, and, ONVIF motion alarm event.
- WDR (Wide Dynamic Range) helps to ensure that camera images are usable and clear. In some scenes, there can be a contrast between the darkest and brightest spots in a scene, this can cause the image to be under or overexposed making it difficult, even impossible to identify objects and people. WDR technology can help rectify this issue, producing clear images regardless of difficult light scenarios.
- Electronic Image Stabilisation provides smooth video in situations where a camera is subject to vibrations. Built-in gyroscopic sensors continuously detect the camera's movements and vibrations, and automatically adjusts the frame to ensure users always capture the details they need.
- Lightfinder technology helps Axis cameras to deliver high-resolution, full-colour video in near darkness, stripping away noise to make dark areas visible, and discerning colour in low light. This keeps surveillance capabilities working their best at all times, with clear footage regardless lighting conditions within a scene.
- OptimizedIR offers a combination of camera intelligence and LED technology, for an advanced camera-integrated IR solution, equipped for complete darkness.
- Zipstream technology preserves important forensic details in the video stream while lowering bandwidth and storage requirements by an average of 50%. It also includes intelligent algorithms, to ensure that forensic information is identified, recorded, and sent in full resolution and framerate.
Supported Analytics:
Box Content:
- Camera (Q1806-LE)
- Installation Guide
- Terminal block connector
- RJ45 cable
- Connector guard
- Cable gaskets
- Owner Authentication key
Dimensions:
