Axis Q1971-E Thermal Camera
SKU: 0294/5x-001
Contact Us for Stock Levels
Key Features:
- Thermal Bullet Camera
- Reliable Detection 24/7
- Support for Axis Perimeter Defender
- Built-in Cybersecurity
- Compact, Robust & Halogen-Free
- Available in 7mm / 13mm / 19mm / 25mm and 35mm Lens
- Supports AI Based Analytics
- Electronic Image Stabilization (EIS)
- IP66/IP67 Weather Resistant Rating
- IK10 Impact Resistant Rating
- 5 year warranty
This product can be powered by 12-28V DC or PoE.
We recommend PoE for ease of use.
Please note: this product does not come with a power supply.
Axis Q1971-E User Manual
Axis Q1971-E Installation Guide

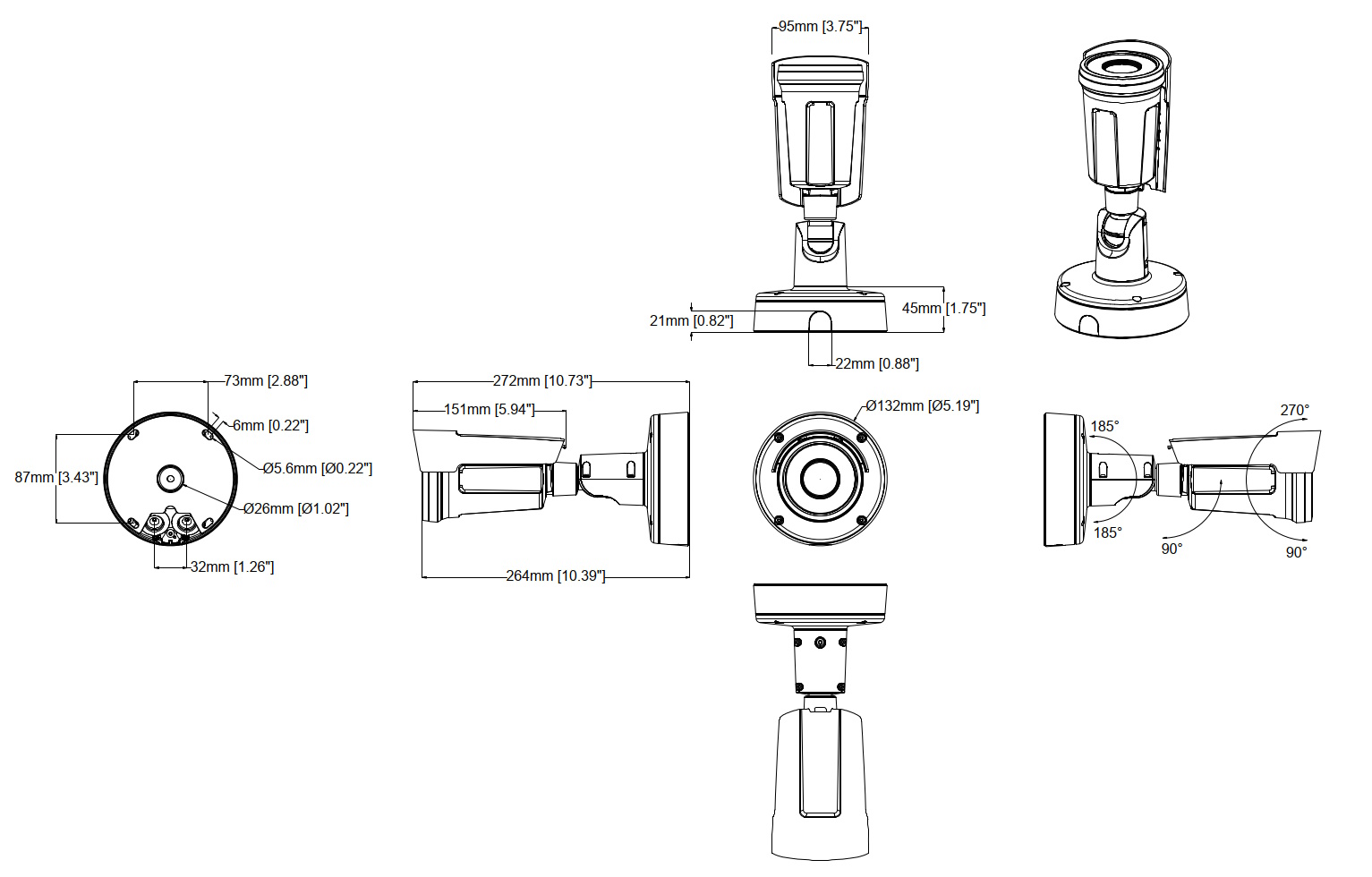

Axis Q1971-E Dimensions
Axis Product Comparison Table
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
The Q1971-E is a robust, halogen-free thermal camera that can detect and verify regardless of weather and light conditions even in low-contrast scenes. With five lens alternatives, it ensures optimal detection to suit specific needs. This AI-based camera enables proactive surveillance and Axis Perimeter Defender is available for enhanced protection. Built on a powerful platform, it supports third-party analytics. It features two I/O ports and with edge-to-edge technology you can connect, for instance, a horn speaker to enable audio alarms. Furthermore, Axis Edge Vault safeguards the device and offers FIPS 140-2 Level 2 certified key storage and operations.
The Axis Q1971-E is available in four different lens options and two different frame rates, please see below for the differences.
| Lens | 7mm | 13mm | 19mm | 25mm | 35mm |
| Horizontal FOV | 55° | 28° | 19.4° | 15° | 10.5° |
| Near Focus Distance | 1.2m | 4.7m | 8.3m | 18.2m | 31.3m |
| 8.3fps Product Code | 02946-001 | 02948-001 | 02950-001 | 02952-001 | 02954-001 |
| 30fps Product Code | 02945-001 | 02947-001 | 02949-001 | 02951-001 | 02953-001 |
Features Explained:
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- Electronic Image Stabilisation provides smooth video in situations where a camera is subject to vibrations. Built-in gyroscopic sensors continuously detect the camera's movements and vibrations, and automatically adjusts the frame to ensure users always capture the details they need.
- Thermal palettes is a mode that allows the user to select a colour range to show relative temperature differences in a scene. The user is able to choose between black-and-white ranges, colour ranges, or a mix between the two. The same input (measured thermal radiation) can result in different visual appearance depending on how each pixel value is mapped to a colour range.
- Zipstream technology preserves important forensic details in the video stream while lowering bandwidth and storage requirements by an average of 50%. It also includes intelligent algorithms, to ensure that forensic information is identified, recorded, and sent in full resolution and framerate.
Box Content:
- Q1971-E Camera
- Installation Guide
- Drill Template
- TORX L-keys
- RESISTORX L-key
- Terminal Block Connector
- Connector Guard
- Cable Gaskets
- Owner Authentication Key
