Axis Q1972-E Thermal Camera
SKU: 030xx-001
Contact Us for Stock Levels
Key Features:
- Thermal Bullet Camera
- Reliable Detection 24/7
- Built-in Cybersecurity
- Compact, Robust & Halogen-Free
- Available in 10mm / 19mm / 25mm and 35mm Lens
- Supports AI Based Analytics
- Electronic Image Stabilization (EIS)
- IP66/IP67 Weather Resistant Rating
- IK10 Impact Resistant Rating
- 5 year warranty

This product can be powered by 12-28V DC or PoE.
We recommend PoE for ease of use.
Please note: this product does not come with a power supply.
Axis Q1972-E User Manual
Axis Q1972-E Dimensions
Axis Product Comparison Table

Details
The Q1972-E delivers a high-resolution thermal video stream for reliable detection 24/7. Ideal for perimeter security, it includes Axis Motion Guard, Axis Fence Guard, and Axis Loitering Guard for proactive surveillance. With a powerful analytics platform, it's easy to add third-party analytics. Built-in cybersecurity features prevent unauthorised access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorisation of Axis products on your network. Axis Q1972-E also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Furthermore, this halogen-free, compact camera is robust and suitable even for harsh conditions.
The Axis Q1972-E is available in four different lens options and two different frame rates, please see below for the differences.
| Lens | 10mm | 19mm | 25mm | 35mm |
| Horizontal FOV | 63° | 31° | 24° | 17° |
| Near Focus Distance | 2.8m | 8.5m | 18.5m | 33m |
| 8.3fps Product Code | 03028-001 | 03030-001 | 03032-001 | 03034-001 |
| 30fps Product Code | 03027-001 | 03029-001 | 03031-001 | 03033-001 |
Features Explained:
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- Electronic Image Stabilisation provides smooth video in situations where a camera is subject to vibrations. Built-in gyroscopic sensors continuously detect the camera's movements and vibrations, and automatically adjusts the frame to ensure users always capture the details they need.
- Thermal palettes is a mode that allows the user to select a colour range to show relative temperature differences in a scene. The user is able to choose between black-and-white ranges, colour ranges, or a mix between the two. The same input (measured thermal radiation) can result in different visual appearance depending on how each pixel value is mapped to a colour range.
- Zipstream technology preserves important forensic details in the video stream while lowering bandwidth and storage requirements by an average of 50%. It also includes intelligent algorithms, to ensure that forensic information is identified, recorded, and sent in full resolution and framerate.

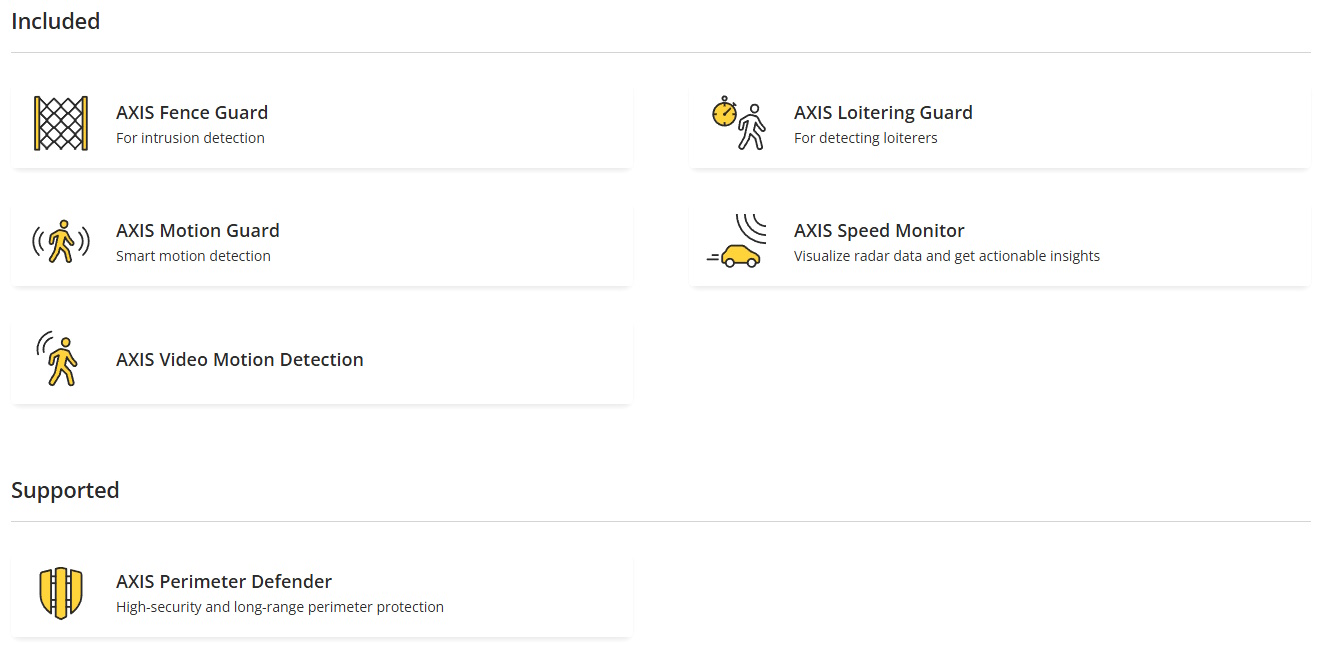

Supported Analytics:

Box Content:
- Q1972-E Camera
- Installation Guide
- Drill Template
- TORX L-keys
- RESISTORX L-key
- Terminal Block Connector
- Connector Guard
- Cable Gaskets
- Owner Authentication Key

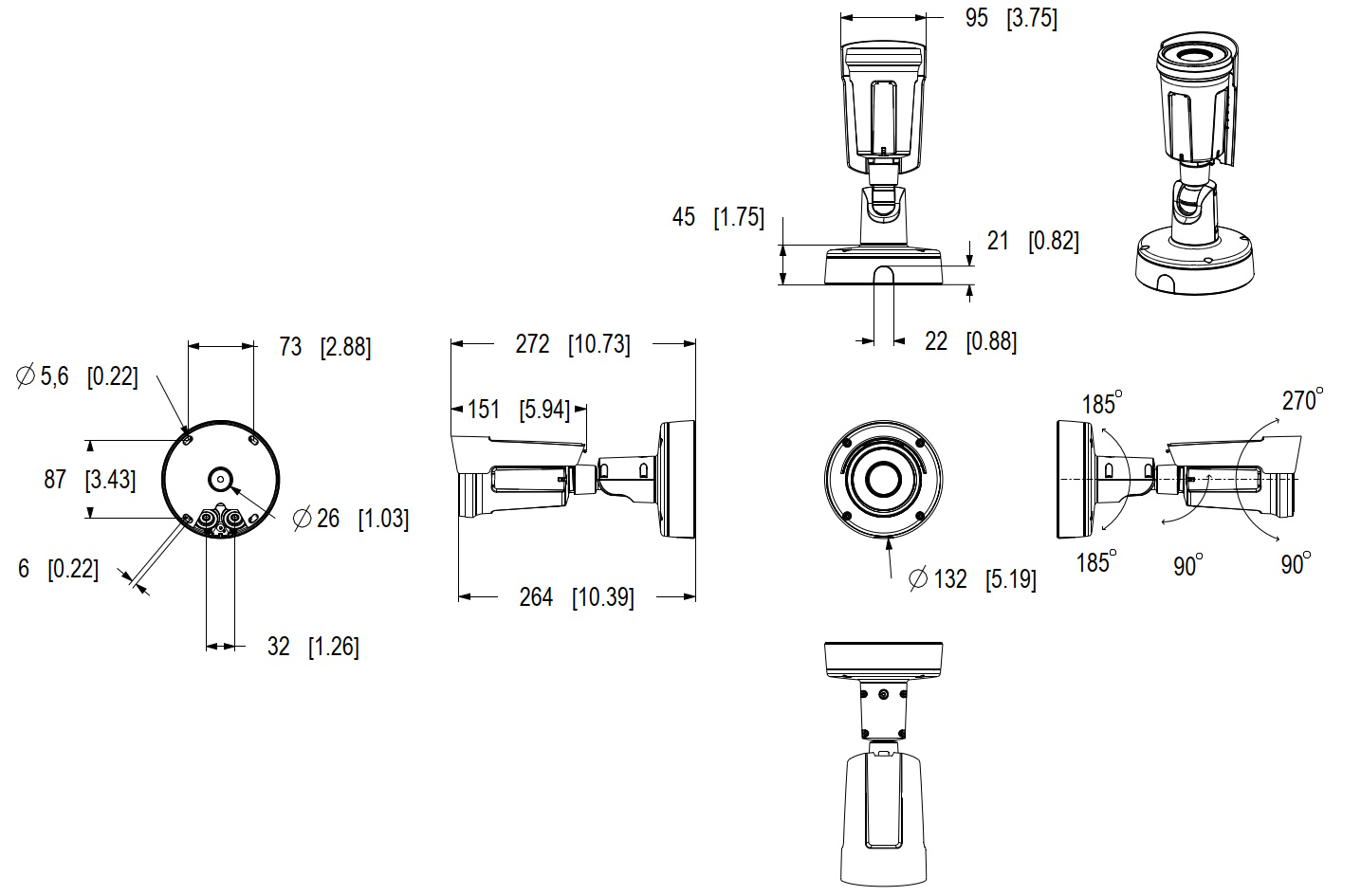

Dimensions

Specs
Reviews
Datasheets
Shipping and Returns
