Axis Q2112-E Thermal Camera
SKU: 02603-001-02612-001
Contact Us for Stock Levels
Key Features:
- Thermal Bullet Camera
- High-resolution detection, low false alarm rate
- Flexible mounting options
- Built-in Cybersecurity
- Compact, Robust & Halogen-Free
- Available in 10mm / 19mm / 25mm / 35mm and 60mm Lens
- Supports powerful analytics
- Electronic Image Stabilization (EIS)
- IP66/IP67 Weather Resistant Rating
- IK10 Impact Resistant Rating
- 5 year warranty
This product can be powered by 10-28V DC or PoE.
We recommend PoE for ease of use.
Please note: this product does not come with a power supply.
Axis Q2112-E User Manual
Axis Q2112-E Installation Guide
Axis Q2112-E Dimensions
Axis Product Comparison Table
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
The Q2112-E is ideal for perimeter security, offering high resolution, reliable detection, and verification 24/7 all while protecting privacy. It features a powerful sensor with extremely high thermal sensitivity for a low false alarm rate. There's a choice of five lens options. It can be mounted on a positioning unit for 360° unobstructed views. Axis Perimeter Defender is available for enhanced protection. Built on a powerful platform, it's possible to add third-party analytics. With edge-to-edge technology, you can easily integrate and trigger other devices such as a network speaker. Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorised access.
The Axis Q2112-E is available in five different lens options and two different frame rates, please see below for the differences.
| Lens | 10mm | 19mm | 25mm | 35mm | 60mm |
| Horizontal FOV | 63° | 31° | 24° | 17° | 10° |
| Near Focus Distance | 2.8m | 8.5m | 18.5m | 33m | 84m |
| 8.3fps Product Code | 02603-001 | 02605-001 | 02607-001 | 02609-001 | 02611-001 |
| 30fps Product Code | 02604-001 | 02606-001 | 02608-001 | 02610-001 | 02612-001 |
Features Explained:
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- Electronic Image Stabilisation provides smooth video in situations where a camera is subject to vibrations. Built-in gyroscopic sensors continuously detect the camera's movements and vibrations, and automatically adjusts the frame to ensure users always capture the details they need.
- Thermal palettes is a mode that allows the user to select a colour range to show relative temperature differences in a scene. The user is able to choose between black-and-white ranges, colour ranges, or a mix between the two. The same input (measured thermal radiation) can result in different visual appearance depending on how each pixel value is mapped to a colour range.
- Zipstream technology preserves important forensic details in the video stream while lowering bandwidth and storage requirements by an average of 50%. It also includes intelligent algorithms, to ensure that forensic information is identified, recorded, and sent in full resolution and framerate.

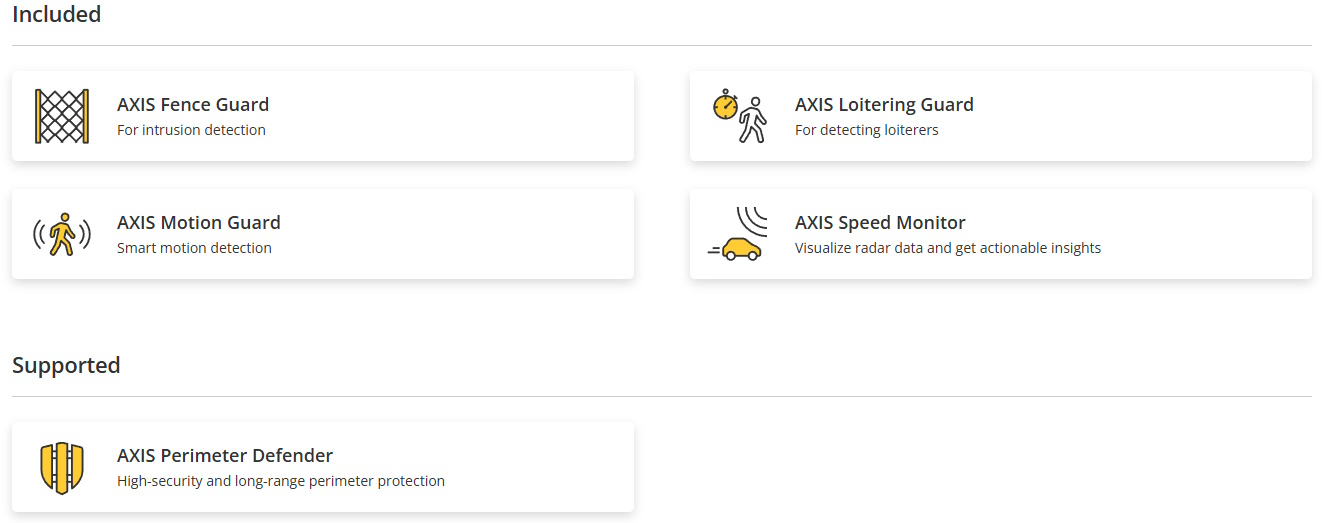

Supported Analytics
Box Content:
- Q2112-E Camera
- Installation Guide
- Terminal Block Connector
- Connector Guard
- Cable Gaskets
- Owner Authentication Key

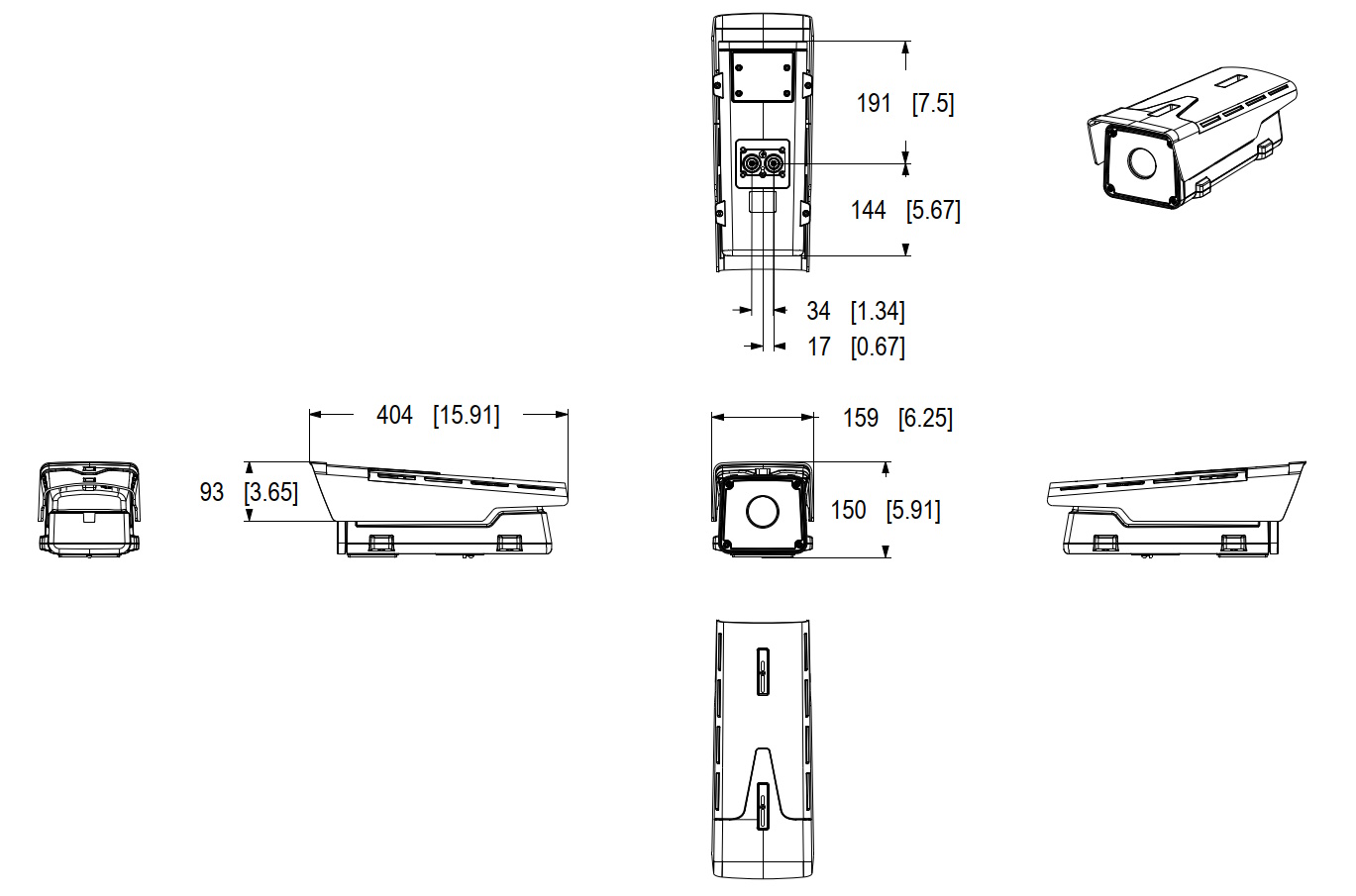

Dimensions
Specs
Reviews
Datasheets
