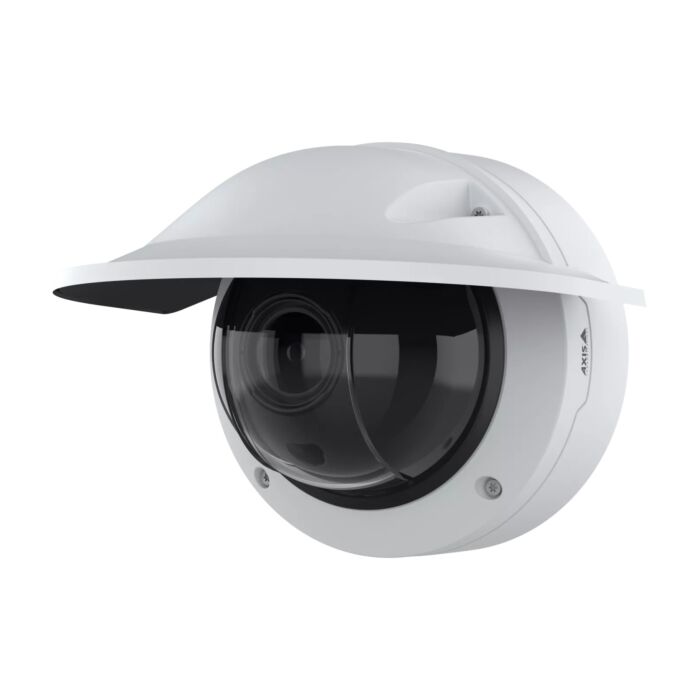

Axis Q3546-LVE 4MP AI-Powered Dome Camera
SKU: 02971-001/02972-001
Contact Us for Stock Levels
Key features:
- 4MP (2688x1512) Resolution
- Up to 30fps with WDR, up to 120fps without WDR
- Next-generation AI-powered analytics
- IR-shielded dome to prevent reflections
- Wide or tele lenses available
- 10mm or 51mm lens focal length
- Min. low-light lux: Q3546-LVE 10mm - 0.01 lux | Q3546-LVE 51mm - 0.04 lux
- OptimizedIR: Q3546-LVE 10mm - up to 60m | Q3546-LVE 51mm - up to 70m
- Electronic Image Stabilisation
- Forensic WDR up to 120dB
- DLPU compute capabilities (Deep Learning Processing Unit)
- Axis Zipstream with storage profile
- Built-in cybersecurity with Axis Edge Vault
- Operating Conditions (temperature: -50°c to 55°c) (humidity: 10 to 100% RH (non-condensing)
- 5 year warranty
This product is powered by 8-28V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Axis Q3546-LVE Installation Guide
Axis Q3546-LVE User Manual
Axis Q3546-LVE Drill Template
Axis Q3546-LVE Repainting Instructions
Axis Product Comparison Table
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
Built on ARTPEC-9, the Q3546-LVE AI-powered camera offers 4MP resolution and delivers outstanding image quality even in the harshest weather conditions. The IR-shielded dome prevents IR reflections, always ensuring clear, sharp video. A deep learning processing unit lets you run advanced features and powerful analytics on the edge. For instance, it comes with Axis Object Analytics preinstalled to detect and track objects. Made from high-grade aluminium, this robust camera is both vandal- and impact-resistant. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorised access.
Choose between the Q3546-LVE 10mm or the Q3546-LVE 51mm
DORI (Detect, Observe, Recognise, Identify):
| Detect | Observe | Recognise | Identify | |
| Definition | 25px/m | 63px/m | 125px/m | 250px/m |
| Q3546-LVE 10mm(wide/tele) | 65m/141m | 26m/56m | 13m/28m | 6.4m/14m |
| Q3546-LVE 51mm(wide/tele) | 183m/698m | 73m/277m | 37m/140m | 18m/70m |
Features Explained:
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- AXIS Object Analytics comes pre-installed, and offers a selection of analytics for human and vehicle classification, powered by AI-based algorithms.
Object classes: humans / vehicles (types: cars, buses, trucks, bikes)
Features: line crossing, object in area, occupancy in area, up to 10 scenarios, visualised metadata (with trajectories and colour-coding), polygon include/exclude areas, and, ONVIF motion alarm event.
- WDR (Wide Dynamic Range) helps to ensure that camera images are usable and clear. In some scenes, there can be a contrast between the darkest and brightest spots in a scene, this can cause the image to be under or overexposed making it difficult, even impossible to identify objects and people. WDR technology can help rectify this issue, producing clear images regardless of difficult light scenarios.
- AXIS Live Privacy Shield remotely monitors activities both indoors and outdoors while safeguarding privacy in real-time, powered by AI-based dynamic masking. Users can choose what to mask or blur while addressing rules and regulations protecting privacy. As well as this, Live Privacy Shield enables masking of moving and still objects such as humans and license plates. The application works in real-time and on both live and recorded video streams.
- Electronic Image Stabilisation provides smooth video in situations where a camera is subject to vibrations. Built-in gyroscopic sensors continuously detect the camera's movements and vibrations, and automatically adjusts the frame to ensure users always capture the details they need.
- OptimizedIR offers a combination of camera intelligence and LED technology, for an advanced camera-integrated IR solution, equipped for complete darkness.

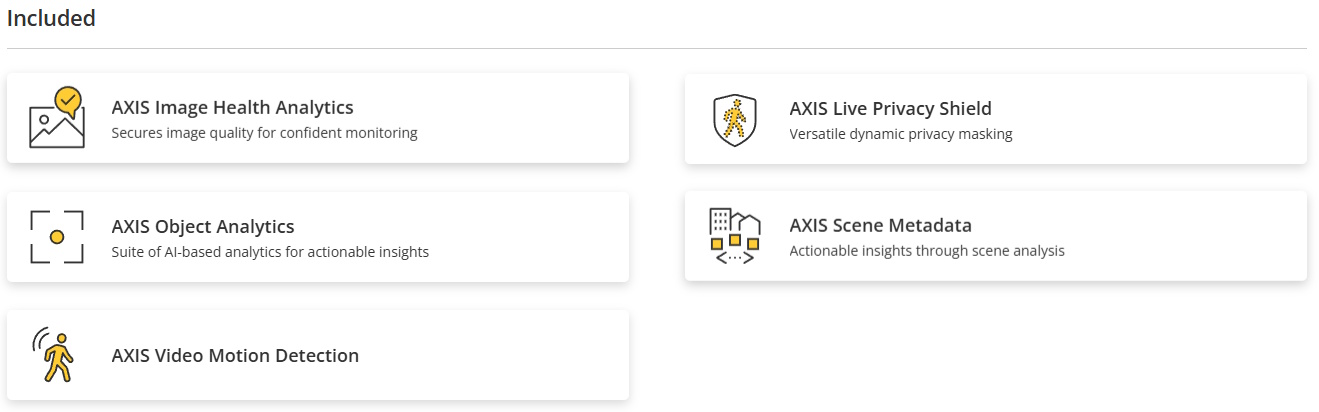

Supported Analytics:
Box Content:
- Q3546-LVE Camera
- Weathershield
- Installation Guide
- Terminal block connectors
- Connector guard
- Cable gaskets
- Owner Authentication key

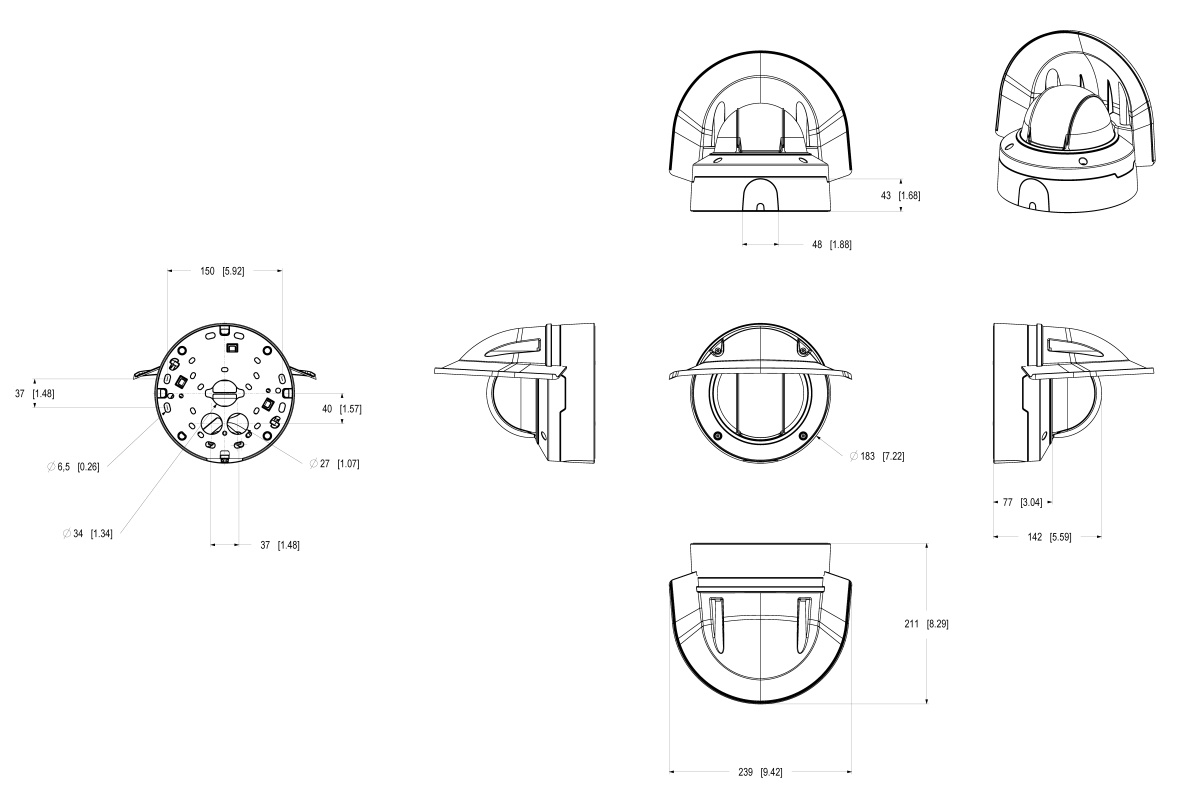

Q3546-LVE 10mm Dimensions:

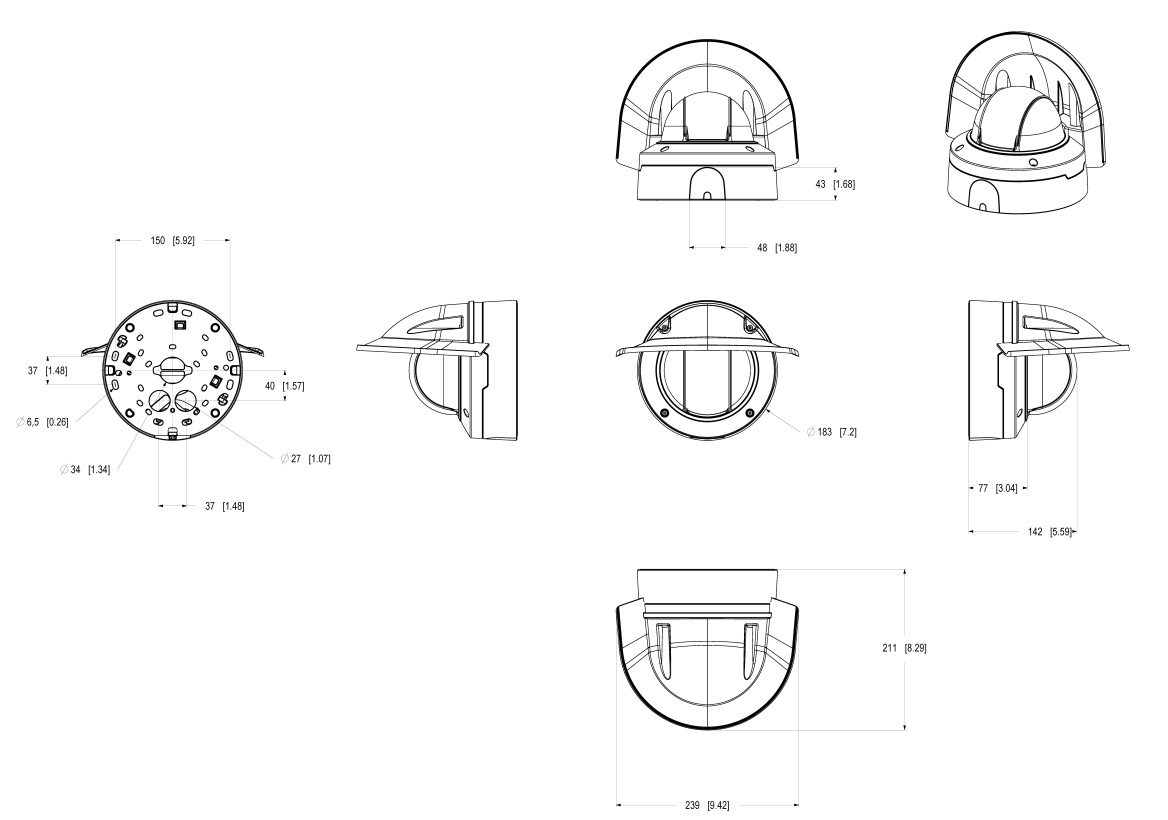

Q3546-LVE 51mm Dimensions:
