Axis M5526-E 50Hz PTZ Camera
SKU: 02768-001
Available for delivery in 7~10 days
Key Features:
- 4MP PTZ Camera
- 10x Optical Zoom
- Continuous 360° Pan
- Compact design
- Forensic WDR - up to 120dB
- Support for analytics with deep learning
- Features Axis Edge Vault
- Memory - 1024MB RAM, 8192MB Flash
- PoE or 24V with audio and I/O connectivity
- Operating conditions - Temperature - -20 °C to 50 °C | Humidity - 15-100% RH (condensing)
- IP66 Ingress Protection for weather resistance
- IK09 rating for vandal resistance
- 5 year warranty
This product can be powered by 20-28V DC or PoE. We recommend using PoE.
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details

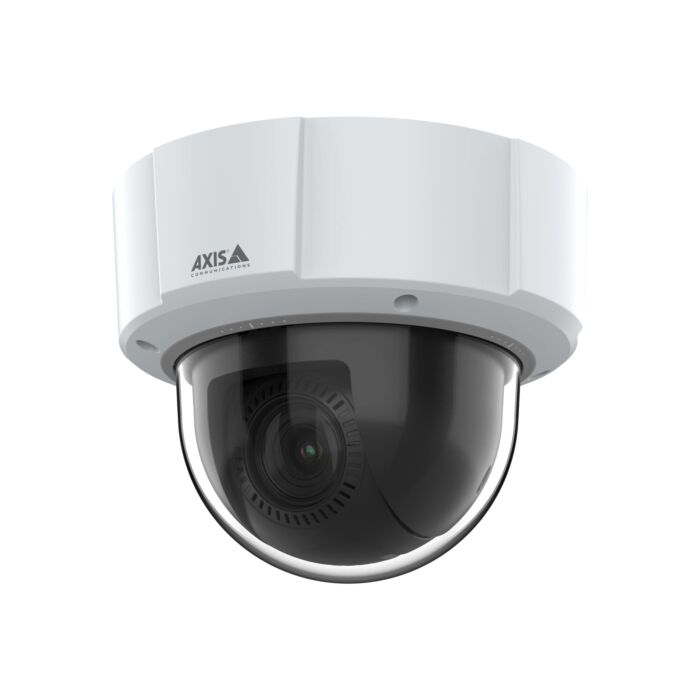

The M5526-E PTZ Camera delivers great image quality at 4MP resolution and up to 10x optical zoom. It offers continuous 360° pan and autofocus ensures detailed, sharp images. Compatible with all Axis PTZ mounts, this camera can be mounted either indoors or outdoors and it includes a deep learning processing unit (DPLU) to enable improved processing and storage capabilities.
Features Explained:
- Zipstream supports H.264 and H.265 video compression, and significantly reduces bandwidth and storage requirements. This allows for improved storage efficiency.
- Lightfinder ensures sharp, colour images in low-light environments, for improved performance in challenging lighting conditions.
- Forensic WDR equipped to help deliver improved image clarity in challenging lighting conditions, where there is both harsh bright, and dark lighting in a scene.
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- AXIS Object Analytics comes pre-installed, and offers a selection of analytics for human and vehicle classification, powered by AI-based algorithms.
Object classes: humans / vehicles (types: cars, buses, trucks, bikes)
Features: line crossing, object in area, occupancy in area, up to 10 scenarios, visualised metadata (with trajectories and colour-coding), polygon include/exclude areas, and, ONVIF motion alarm event.
DORI (Detect, Observe, Recognise, Identify):
| Detect | Observe | Recognise | Identify | |
| Definition | 25px/m | 63px/m | 125px/m | 250px/m |
| Distance (wide/tele) | 96m/938m | 38m/373m | 19m/186m | 10m/93m |
Box Content:
- M5526-E Camera
- Installation Guide
- Bayonet Adapter
- Terminal Block Connectors
- Connector Guard
- Owner Authentication Key

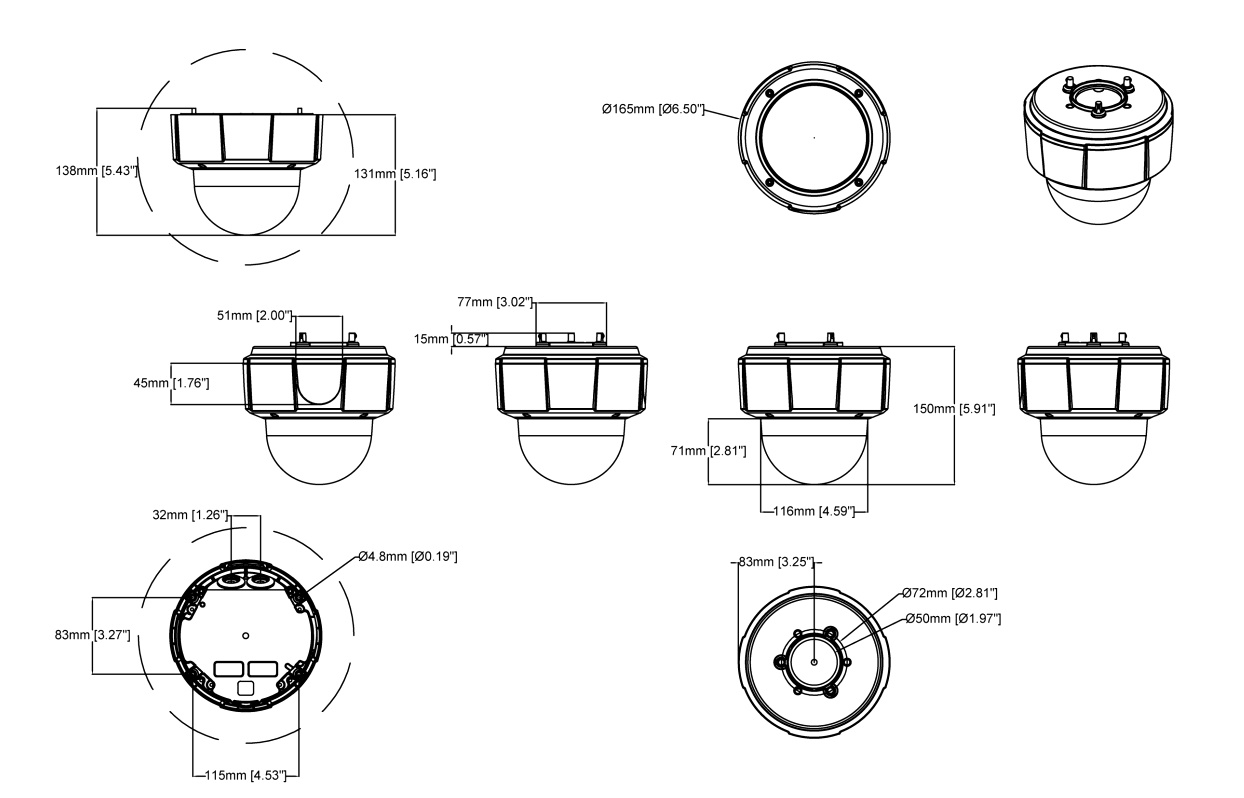

Dimensions:
