Axis P5654-E Mk II 50Hz PTZ Camera
SKU: 02914-001
Available for delivery in 7~10 days
Key Features:
- 2MP PTZ Camera
- 21x Optical Zoom
- 4~84.6mm Varifocal Lens
- Wide 77° Field of View
- Forensic WDR - up to 120dB
- Support for advanced analytics
- Features Axis Edge Vault
- Memory - 1024MB RAM, 512MB Flash
- Operating conditions - Temperature - -30 °C to 50 °C | Humidity - 10-100% RH (condensing)
- IP66 Ingress Protection for weather resistance
- IK10 rating for vandal resistance
- 5 year warranty
This product can be powered by 100-240V AC or PoE. We recommend using PoE.
Axis P5654-E Mk II User Manual
Axis P5654-E Mk II Installation Guide
Axis P5654-E Mk II Dimensions
Axis Product Comparison Table

Details
The P5654-E Mk II is a 2MP PTZ camera that is equipped with a 4~84.6mm varifocal lens. It provides up to 21x optical zoom and wide area coverage with 77° field of view. Because it includes Lightfinder 2.0 and Forensic WDR up to 120dB, the P5654-E Mk II provides high image quality even in the most challenging lighting conditions. With IP66, NEMA 4X, and IK10 ratings, this camera is robust and is weather and vandal resistant, making it suitable for outdoor use.
Features Explained:
- Zipstream supports H.264 and H.265 video compression, and significantly reduces bandwidth and storage requirements. This allows for improved storage efficiency.
- Lightfinder ensures sharp, colour images in low-light environments, for improved performance in challenging lighting conditions.
- Forensic WDR equipped to help deliver improved image clarity in challenging lighting conditions, where there is both harsh bright, and dark lighting in a scene.
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- AXIS Object Analytics comes pre-installed, and offers a selection of analytics for human and vehicle classification, powered by AI-based algorithms.
Object classes: humans / vehicles (types: cars, buses, trucks, bikes)
Features: line crossing, object in area, occupancy in area, up to 10 scenarios, visualised metadata (with trajectories and colour-coding), polygon include/exclude areas, and, ONVIF motion alarm event.
DORI (Detect, Observe, Recognise, Identify):
| Detect | Observe | Recognise | Identify | |
| Definition | 25px/m | 63px/m | 125px/m | 250px/m |
| Distance (wide/tele) | 57m/1120m | 23m/450m | 11m/225m | 6m/110m |
Box Content:
- P5654-E Mk II camera
- Installation guide
- Smoked dome
- RJ45 push-pull connector (IP66)
- Hard ceiling mount
- Spring clip adapter
- U-profile adapter pipe

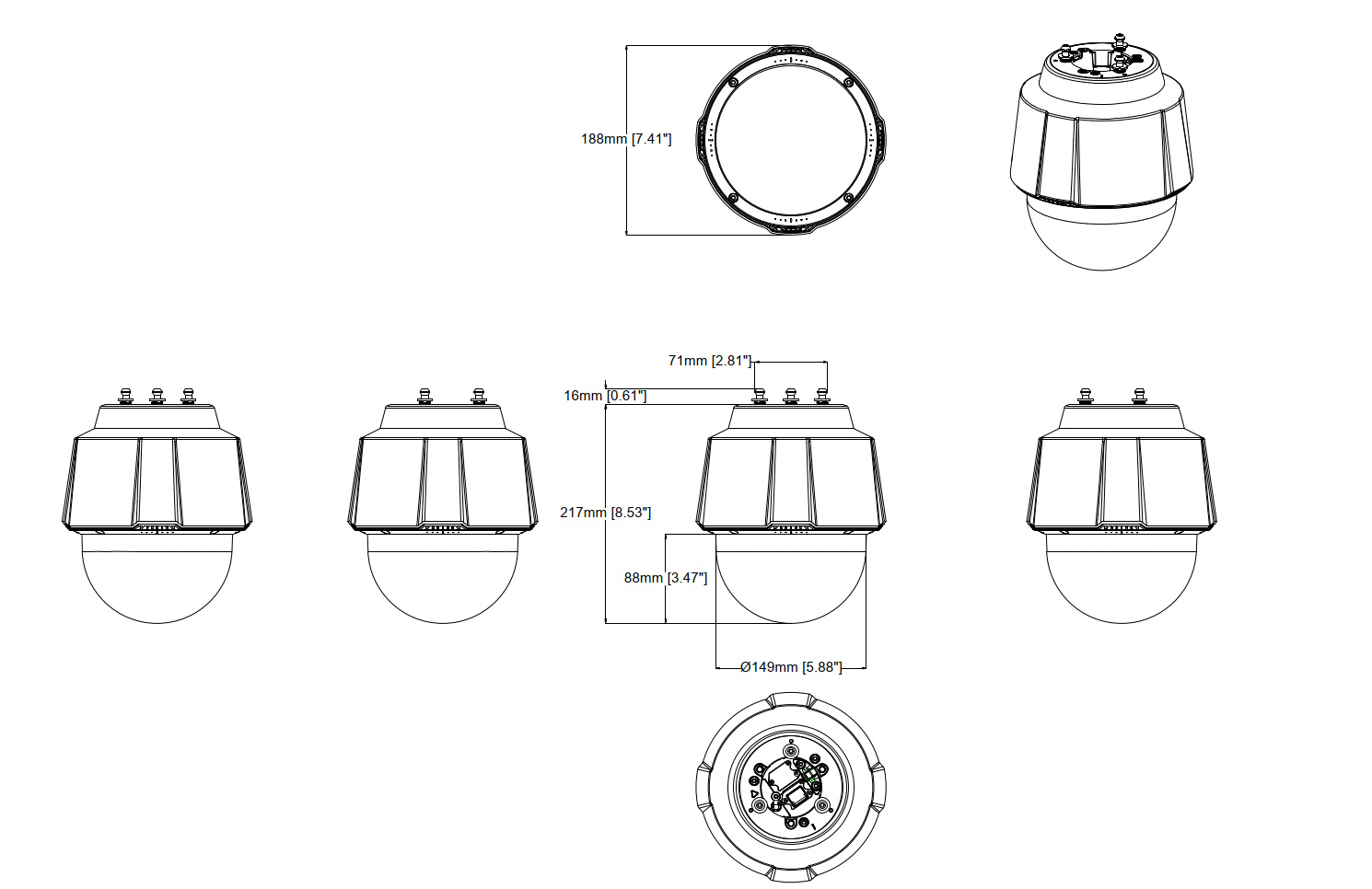

Dimensions:
