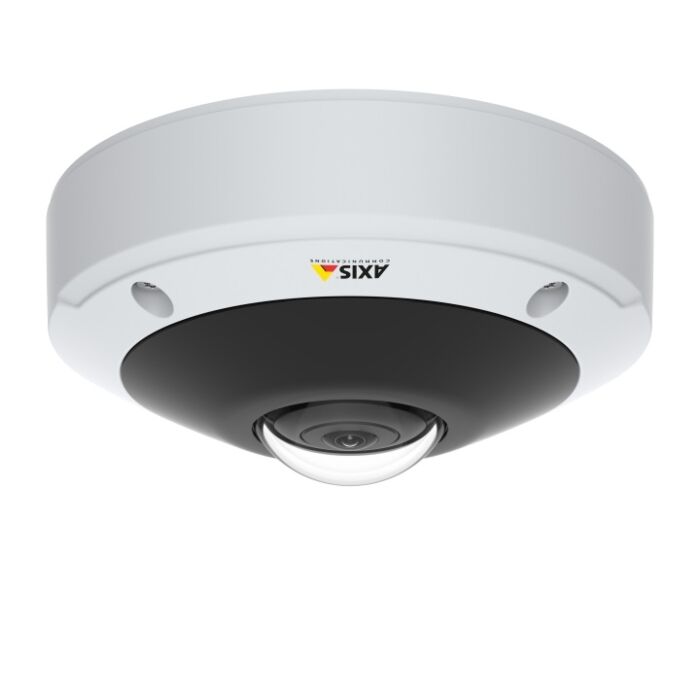

Axis M3057-PLVE 6MP Dome Camera 01177-001

Availability: In Stock

£708.00 Incl VAT Excl VAT. £590.00

Axis 01177-001

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Axis M3057-PLVE is an IP66 rated dome camera that can be mounted in both indoor or outdoor environments for around the clock security. Its IK10 housing protects the camera against vandalism and the IP66 rating shelters the M3057-PLVE from dust and water.

Users are able to stream a complete 360° overview meaning you can record everything with no blind spots with the video management software enabling you to use that stream to produce any dewarped views you'd like as well as being able to digitally pan, tilt and zoom in on areas of interest in up to four areas simultaneously.

This camera has been designed to product sharp images in any level of light, the OptimisedIR enabled great images even in the dark. Equipped with Forensic WDR the M3057-PLVE allows visibility when there are both dark and light areas in the same scene.

Axis Zipstream technology analyses video stream in real time to identify areas of interest, this technology will them preserve important details in full video quality and compress other areas which reducing storage and bandwidth by up to 50%. Resulting in high image quality at significant savings.

Included Camera Accessories:
- Installation guide
- Windows decoder 1-user license
- Drill hole template
- Cable gaskets
- Connector guard
- I/O connector
- Resistorx T20 L-key
- Mounting bracket
- Cable hold lie
- View protector

Axis M3057-PLVE User Manual
Axis M3057-PLVE Installation Guide
Axis Assigning IP Address User Manual Axis Product Comparison Table Autumn 2016 Axis Product Guide

Product Datasheets

Axis M3057-PLVE 6MP Dome Camera 01177-001 Datasheet (0.46MB)



Find use-IP on Youtube   Find out more at the use-IP forum

Key Features

- 6MP Sensor
- OptimisedIR illumination
- Lightfinder technology
- Forensic WDR
- Zipstream for reduced bandwidth and storage

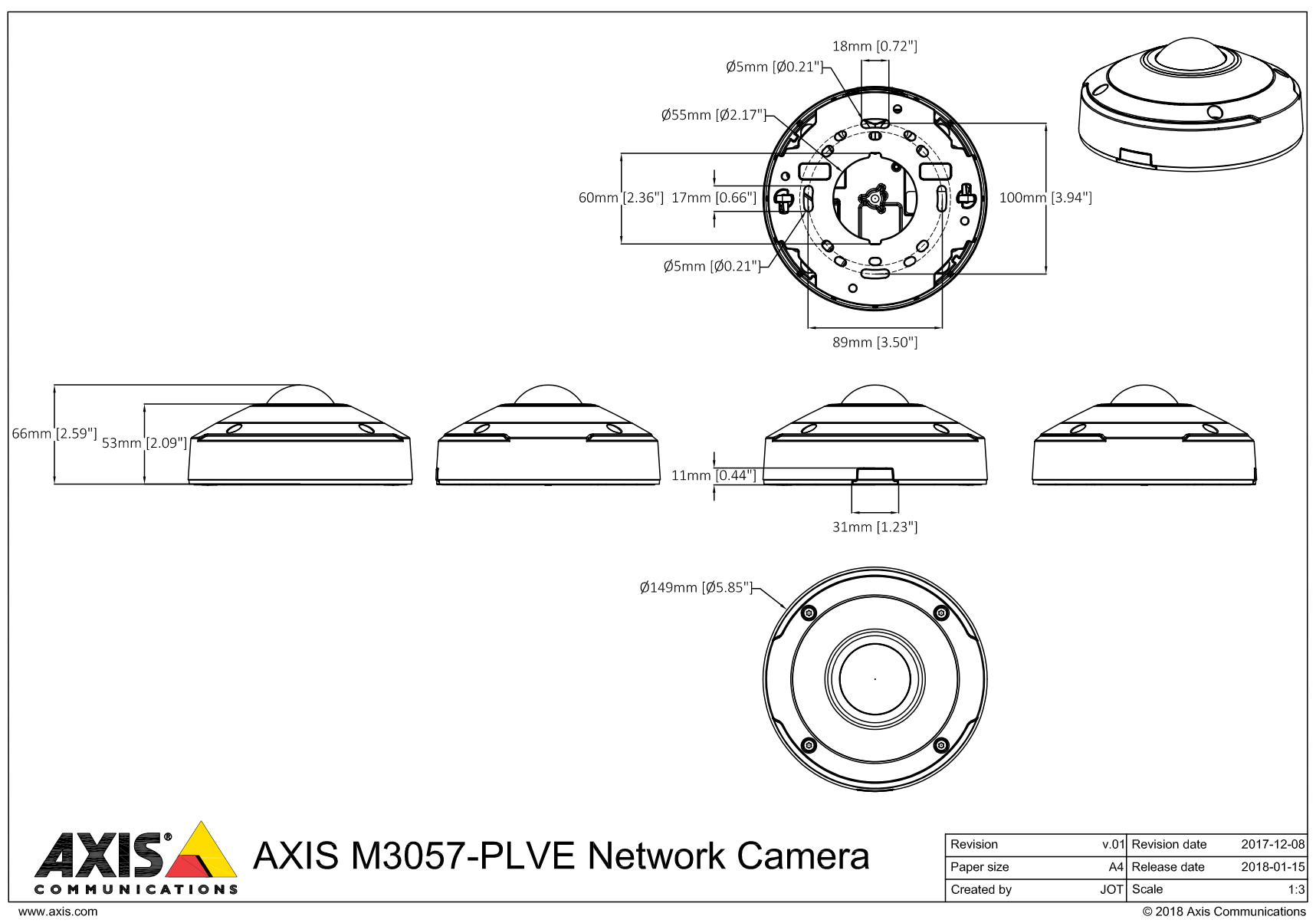

M3057-PLVE Dimensions

Additional Information

Weight 770.0000
Image chip size 1/1.8"
Image chip type Progressive Scan RGB CMOS
Image Compression H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome Colour/Mono switching
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 3072 x 2048
Min. low-light lux 0 Lux (IR LED ON)
Supply Volts POE only
Lens Mount fixed lens
Lens Focal Length 1.6mm
Viewing Angle 185° Horizontal Field of View
Aspect ratio 3:2
Megapixels 6 MP
Supplied with lens Yes
Max. Images per second 50
ONVIF Compatible Yes
Power Consumption max 12.9W
Warranty 3 Years
Launch Date Spring 2018
