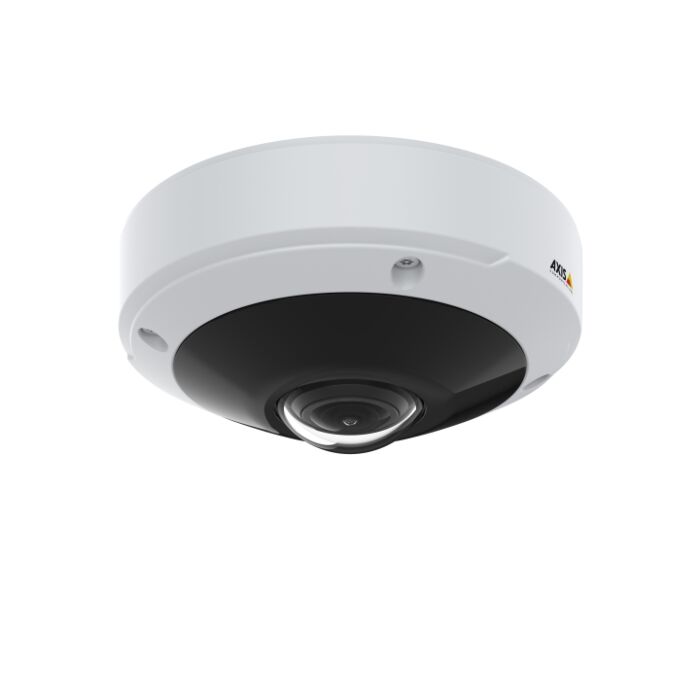

Axis M3077-PLVE 6MP 360° Network Dome Camera With Audio 02018-001

In Stock
SKU
02018-001
£762.00 £635.00

- 6MP Network Dome Camera

- Built-In Microphone

- Complete 180° and 360° Overview

- Lightfinder, Forensic WDR and Optimized IR

- Digital PTZ and Dewarped Views

- Factory-Focused with Digital Roll

- Enhanced Security Features

- IP66 Rated for Outdoor Use

- IK10 Vandal-Proof Rating

Included Accessories

- Installation guide Windows® decoder 1-user license

- Drill hole template

- Cable gaskets

- Connector guard

- I/O connector

- RESISTORX® TR20 bit

- Mounting bracket

- Cable hole lid

- View protector


M3077-PLVE Installation Guide

Product Datasheets

Axis M3077-PLVE 6MP 360° Network Dome Camera With Audio 02018-001 Datasheet (1.13MB)

The Axis M3077-PLVE is a 6MP dome camera featuring 180° or 360° overview - suitable for internal or external use thanks to its IP66, weatherproof rating. With a built-in microphone, the camera adds an extra level or security and surveillance.

This compact mini dome camera offers dewarped views such as Panorama, Quad, Corner and Corridor views directly from the camera itself, making the camera a great option to be installed in a wide variety of scenarios including shops, car parks and reception areas. Plus, with digital PTZ users have additional

Rated IK10, the M3077-PLVE is classed as vandal resistant, making it a great option for use in public spaces where it may be subject to tampering.

Axis also include features such as Lightfinder, Forensic WDR and Otimized IR which can reach a range of up to 20m. These features supply the camera with the best ability to provide high quality images 24/7, even during challenging light conditions or near darkness.

The M3077-PLVE is powered by POE which offers users the chance of simple installation with the use of just one cable. Additionally users can see a reduction in bandwidth and storage requirements with the use of Axis Zipstream which supports H.264 and H.264 video compression.

The device is also loaded with enhanced security functionality, preventing preventing unauthorised access to your system. Your Axis device ID is protected by Axis Edge Vault which simplifies the authorisation of Axis devices on your network.

Please note, this camera may not always be available for next working day delivery as it may need fetching from Axis European warehouse. Please contact our sales team for more information.

Included Accessories

- Installation guide Windows® decoder 1-user license

- Drill hole template

- Cable gaskets

- Connector guard

- I/O connector

- RESISTORX® TR20 bit

- Mounting bracket

- Cable hole lid

- View protector

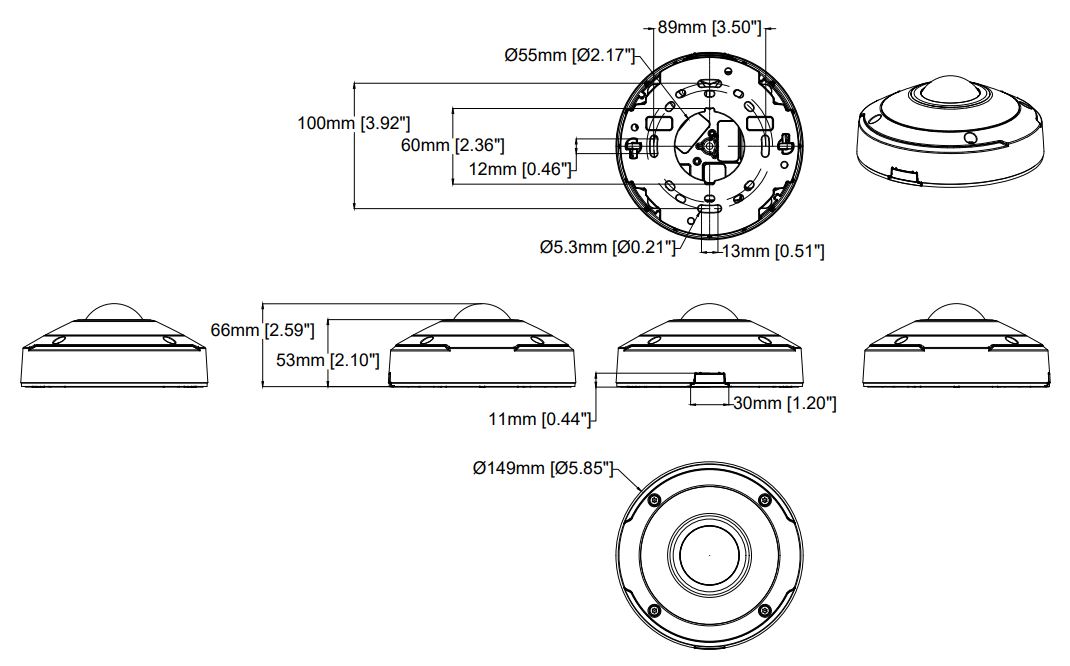

Axis M3057-PLVE MkII Dimensions

Specs
Country Of Origin Thailand
Image chip size 1/1.8"
Image chip type Progressive Scan RGB CMOS
Image Compression H.264 (MPEG-4 Part 10AVC) Baseline, MAin and High Profiles H.265 (MPEG-H Part 2/ HEVC) Main Profile Motion JPEG
Audio Built-in microphone
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 2560 X 1920
Min. low-light lux 0.03
Supply Volts POE only
Lens Mount fixed focus
Lens Focal Length 1.56mm
Viewing Angle 183° Horizontal Field of View
Aspect ratio N/A
Megapixels 6 MP
Supplied with lens Yes
IR Range Up to 20m
Max. Images per second 25
PSU included No
ONVIF Compatible Yes
Power Consumption max. 11.9W
Warranty 5 Years
Launch Date March 2021
Video
Commodity Code 852580
