Axis M3104-LVE Outdoor Mini Dome Network Camera with built-in IR illumination 0866-001

Availability: Out of Stock

£326.40 Incl VAT Excl VAT. £272.00

Axis 0866-001-EOL

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The AXIS M3104-LVE is now End of Life.

It has now been superseded by the AXIS M3115-LVE alternatively, please feel free to browse the wider range of AXIS products that we have to offer.

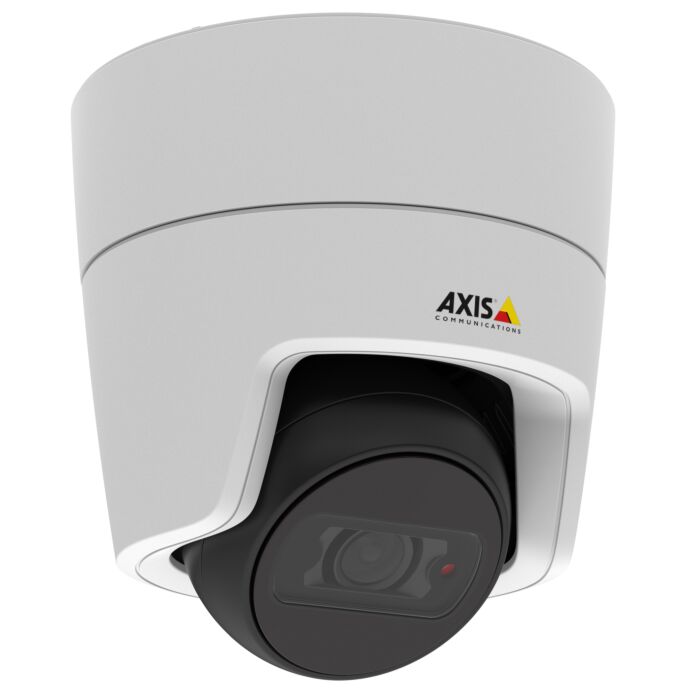

The Axis M3104-LVE is a 720p resolution mini dome with a flat-faced design that reduces reflections. It uses WDR and IR illumination to achieve HDTV images even in the most difficult lighting conditions, its sleek and compact design allows for easy installation in a whole variety positions.

It also features Axis' Zipstream Technology that reduces bandwidth and storage requirements, it is weatherproof up to IP66 and vandal-proof up to IK08.

AXIS M3104-LVE Installation Guide AXIS M3104-LVE User Manual Axis Assigning IP Address User Manual Axis Product Comparison Table

Product Datasheets

Axis M3104-LVE Outdoor Mini Dome Network Camera with built-in IR illumination 0866-001 Datasheet (0.32MB)

Find use-IP on Youtube   Find out more at the use-IP forum

Frequently bought together


Price for all selected :

£385.20Incl VAT

Excl VAT. £ 321.00

  1.      This itemAxis M3104-LVE Outdoor Mini Dome Network Camera with built-in IR illumination 0866-001
  2.    Axis T94B02D Pendant Adaptor Kit 5507-361
  3.    Level One POI-2002-V3 Single Port POE Injector

Key Features

- HDTV 720p resolution
- Built-in IR illumination
- WDR: forensic capture
- Axis' Zipstream Technology
- Weatherproof (IP66) & impact resistant (IK08)
- Smart compact design for easy installation


Additional Information

Weight 380.0000
Image chip size 1/2.8"
Image chip type Progressive Scan RGB CMOS
Image Compression H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles Motion JPEG
Audio N/A
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome Colour/Mono switching
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 1280 X 720
Min. low-light lux 0 Lux (IR LED ON)
Supply Volts POE only
Lens Mount M12 mount
Lens Focal Length 2.8mm
Viewing Angle 80° Horizontal Field of View
Aspect ratio 16:9
Supplied with lens Yes
IR Range Up to 15m
Max. Images per second 30
PSU included N/A
ONVIF Compatible Yes
Power Consumption max. 6.2W
Built-In Storage micro-SD
Warranty 3 Years
Launch Date Autumn 2016
