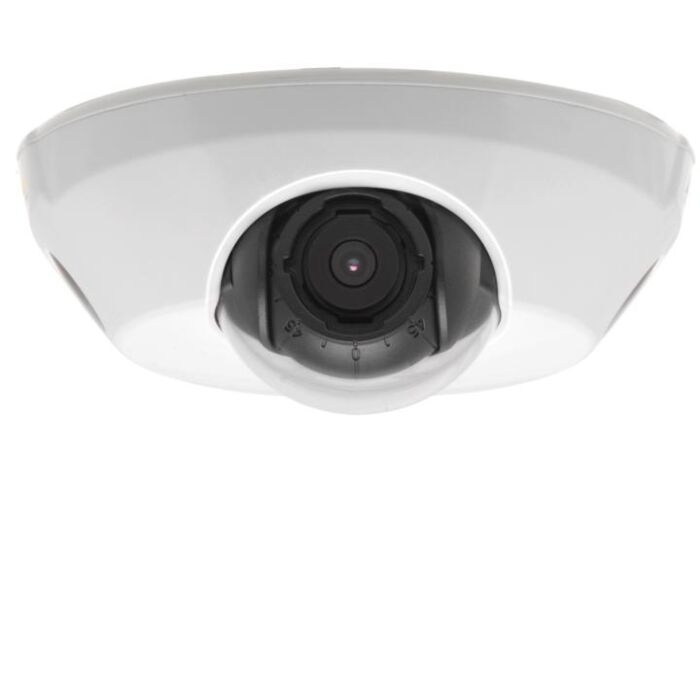

AXIS M3114-R Fixed Dome Network Camera 0342-001

Availability: Out of Stock

£406.80 Incl VAT Excl VAT. £339.00

Axis 0342-001 ~ EOL

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The M3114-R is now End of Life.

May we recommend the Axis P3905-R or please feel free to browse our Axis category.

All features considered, the AXIS M3114-R Fixed Dome Network Camera is specially designed for video surveillance in public transport and emergency vehicles with its rugged and compact design, HD 1MP resolution and H.264 streaming capabilities.

Included Accessories:
- Lens tool
- Top cover tool
- Drill hole template
- Mounting adapters
- Installation guide
- CD with installation tools
- Recording software and user manual
- Windows decoder 1 user license

Axis M31 Series User Manual
Axis M31 Series Installation Guide
Axis Product Brochure 2014
Axis Product Comparison Table September 2014
FREE 30-day trial of Axis Camera Station software
Articles about Axis Network Cameras

Product Datasheets

AXIS M3114-R Fixed Dome Network Camera 0342-001 Datasheet (0.25MB)

Frequently bought together


Price for all selected :

£434.40Incl VAT

Excl VAT. £ 362.00

  1.      This itemAXIS M3114-R Fixed Dome Network Camera 0342-001
  2.    Level One POI-2002-V3 Single Port POE Injector

Key Features

Key Features:
- Flat, rugged design
- Progressive scan and 720p HD resolution
- Multiple H.264 and Motion JPEG streams
- Quick and reliable installation
- Active tampering alarm

The AXIS M3114-R is a highly durable and discreet network camera. It is protected against dust and water, and can withstand tough conditions such as vibrations, shocks, bumps and temperature fluctuations. What's more, the cameras active tampering alarm can detect tampering attempts such as blocking or spray-painting.

The M3314-R is specially designed to respond quickly to changes in light levels, ensuring that high image quality is maintained in difficult lighting conditions. The use of progressive scan also produces clearer images of moving objects reducing blurring and tearing.

The M3114-R supports HDTV 720p streaming and can send multiple H.264 and Motion JPEG streams simultaneously. H.264 compression greatly optimizes bandwidth and storage without compromising all important image quality.

The camera is designed for quick and reliable installation. The desired field of view and a levelled image can be easily achieved by using the supplied lens tool to direct and rotate the ball that holds the lens and image sensor. The tool can also be used to exchange and focus the lens when a lens with a different angle of view is required. The camera provides a pixel counter for verifying that the pixel resolution of an object or a face meets specific requirements.

Power over Ethernet support further simplifies installation since only one cable is needed for carrying power and video.

All features considered, the AXIS M3114-R Fixed Dome Network Camera is specially designed for video surveillance in public transport and emergency vehicles.

Additional Information

Weight 100.0000
Image chip size 1/4"
Image chip type CMOS
Image Compression MJPEG & MPEG-4 & H.264
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP67
Colour / monochrome Colour
POE built-in Yes
POE Class Class 1 (0.44-3.84W)
Max. Resolution 1280 X 800
Supply Volts POE only
Lens Mount built-in lens
Lens Focal Length 2.9mm
Viewing Angle 80 degrees
Aspect ratio 16:9
Megapixels 1 MP
Supplied with lens Yes
Accepts auto-iris lens N/A
Max. Images per second 30
Power Consumption max. 3.2W
Warranty 3 Years
Launch Date April 2010
