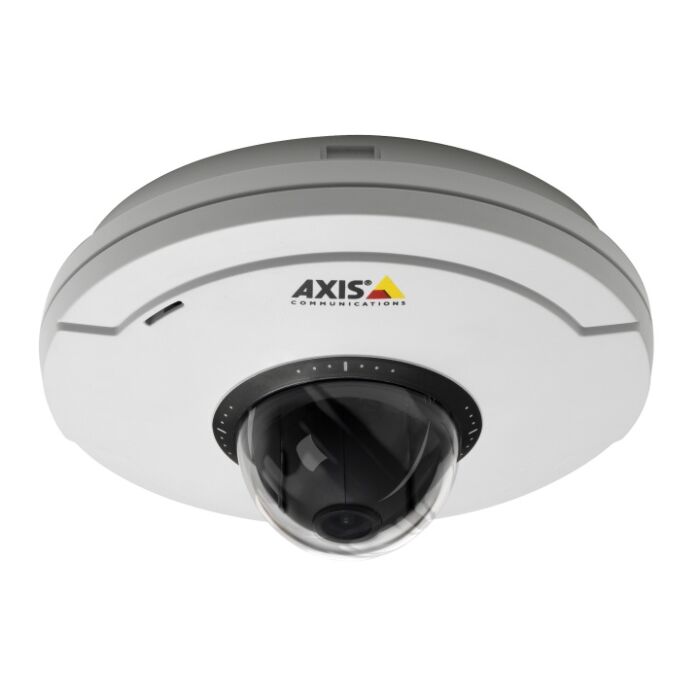

Axis M5014 Indoor PTZ Network Dome Camera 0399-001

Out of stock
SKU
0399-001 ~ EOL
£534.01 £445.01

The Axis M5014 is now End of Life.

May we recommend the Axis M5054  as a replacement or please feel free to browse our Axis category.


The Axis M5014 Indoor PTZ Network Dome Camera provides a discreet security solution, measuring only 13cm in diameter and 5.6cm in depth. However, thanks to its Pan, Tilt, Zoom functionality, the M5014 can provide coverage of an area of up to 400 sq. m. whilst its IP51 rated housing ensures protection against dust and dripping water. What's more, the M5014 provides HDTV 720p image resolution at 1280x720 and is easy to install thanks to its Power over Ethernet support, allowing for video, power and PTZ control to be taken to and from the camera over one ethernet cable when used with a PoE midspan (not included).


Included Accessories:
- Drill template
- Mounting brackets
- Quick guide
- CD with installation tools
- Recording software and user manual
- Windows decoder 1 user license


Axis M5014 User Manual
Axis M5013/14 PTZ Quick Guide
Axis Product Comparison Table
Axis Product Guide
Axis Network Cameras Portfolio
Axis Network Cameras Guide

Product Datasheets

Axis M5014 Indoor PTZ Network Dome Camera 0399-001 Datasheet (0.32MB)


Frequently bought together

  1. Axis M5014 Indoor PTZ Network Dome Camera 0399-001
  2. +
  3. Level One POI-2002 Single Port POE Injector
  4. +
  5. Dedicated Micro DM/433B Bracket
Total price: £0.00INCL VAT
Ex Vat: £0.00

- 1/4" Progressive scan CMOS image sensor - 3.6mm lens with horizontal angle of view of 71° - Minimum illumination of 1.4lux - H.264 and Motion JPEG compression - HDTV 720p image resolution up to 1280x720 - Frame rate of 30fps in all resolutions - Built-in microphone for one-way audio - Video motion detection and audio detection - IP51 rated casing and clear dome - Power over Ethernet IEEE 802.3af Class 3 - MicroSDHC memory card slot Included in price: - Drill template - Mounting brackets for soft and hard ceilings - Quick Guide - CD with installation tools - Recording software and Users Manual - Windows decoder 1-user license
Specs
Image chip size 1/4"
Image chip type CMOS
Image Compression H.264 & Motion JPEG
Audio Listen to the camera
Indoor / Outdoor Indoors only
Ingress Protection IP51
Colour / monochrome Colour
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 1280 X 720
Min. low-light lux 1.5
Supply Volts POE only
Lens Mount N/A
Lens Focal Length 3.6mm
Viewing Angle 71°
Aspect ratio 16:9
Supplied with lens Yes
Accepts auto-iris lens N/A
Max. Images per second 30
PSU included No
ONVIF Compatible Yes
Built-In Storage micro-SD, SDHC
Warranty 3 Years
Launch Date April 2011
Video
Write Your Own Review
You're reviewing:Axis M5014 Indoor PTZ Network Dome Camera 0399-001
Your Rating
Customer Questions
Can this camera be mounted with its base back to the wall? Does the software/configuration allow for flip & mirror settings?

Hello Iain, Sorry, No. This camera must be mounted with its dome downwards e.g. ceiling-mounted. There are no flip/mirror settings in the software.

Is this PTZ IP camera quiet? We'd like to use it in a quiet room to observe the desk and screen of a computer workstation operator working through a series of examined scenarios.

Unfortunately Colin, the pan motor on this compact PTZ is relatively noisy. If you placed this camera adjacent to somebody working in quiet conditions they would certaily be aware of its pan motor moving the camera left/right.

Whats the performance of the camera in low light conditions?

Hello Colin, The Axis M5014 is rated to 1.4 lux. See our lux chart at http://blog.use-ip.co.uk/lux-light-level-chart/ for an indication of that rating.

Can this camera be used on same network as HIK cameras; can the HIK software use the input for HIK track and motion?
