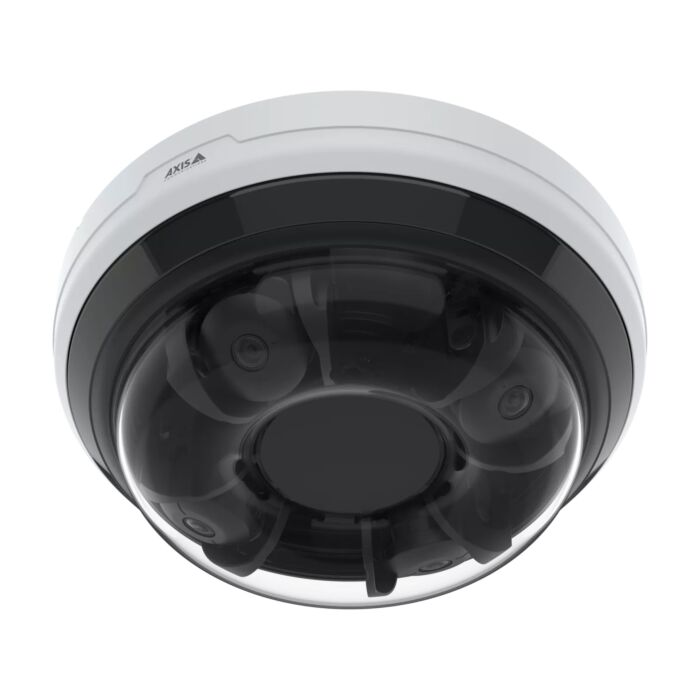

Axis P3747-PLVE 4 x 5MP Panoramic Camera
SKU: 02897-001
Contact Us for Stock Levels
Key Features:
- 4 x 5MP (2592x1944) Resolution, up to 20fps
- Varifocal lens: 3.18 - 7.42mm
- 360° IR illumination with individually controlled LEDs
- Remote pan, tilt, roll, and zoom (PTRZ)
- Flexible mounting options
- Supports powerful analytics
- Supports Forensic WDR up to 120dB
- Built-in cybersecurity with Axis Edge Vault
- Operating Conditions - Temperature: -40°c to 50°c | Humidity: 10-100% RH (non-condensing)
- IP66, NEMA 4X, and IK10 rated casing
- 5 year warranty

This product is powered by PoE.
Please note: this product does not come with a power supply.
Axis P3747-PLVE Dimensions
Axis P37-PLVE Series User Manual
Axis P37-PLVE Series Installation Guide
Axis P37-PLVE Series Repainting Instructions
Axis P37-PLVE Series Drill Template

Details
The Axis P3747-PLVE offers four channels with 5MP per channel at 20fps. It includes 360° IR illumination with individually controllable LEDs and a removable IR cut filter. All four sensors are fully motorised and PTRZ functionality ensures ease of installation and configuration. Plus, presets make it easy to configure multiple devices. This discreet camera can be mounted on ceilings for complete 360° coverage or corner mounted for 270° coverage. It supports advanced analytics on the edge. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-2 Level 2 certified secure key storage and operations.
Features Explained:
- Zipstream supports H.264 and H.265 video compression, and significantly reduces bandwidth and storage requirements. This allows for improved storage efficiency.
- Pan-tilt-roll-zoom functionality includes the ability of a camera to rotate around its vertical, lateral, and longitudinal axes. The focal length is adjustable to achieve a narrower or wider field of view. Thanks to the remote functionality, users can quickly adjust and readjust the camera view remotely over the network, saving time and effort.
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- AXIS Object Analytics comes pre-installed, and offers a selection of analytics for human and vehicle classification, powered by AI-based algorithms.
Object classes: humans / vehicles (types: cars, buses, trucks, bikes)
Features: line crossing, object in area, occupancy in area, up to 10 scenarios, visualised metadata (with trajectories and colour-coding), polygon include/exclude areas, and, ONVIF motion alarm event.
Supported Analytics:

Box Content:
- P3747-PLVE Camera
- Installation Guide
- Connector Guard
- Cable Gasket
- Mounting Plate
- Dome Casing
