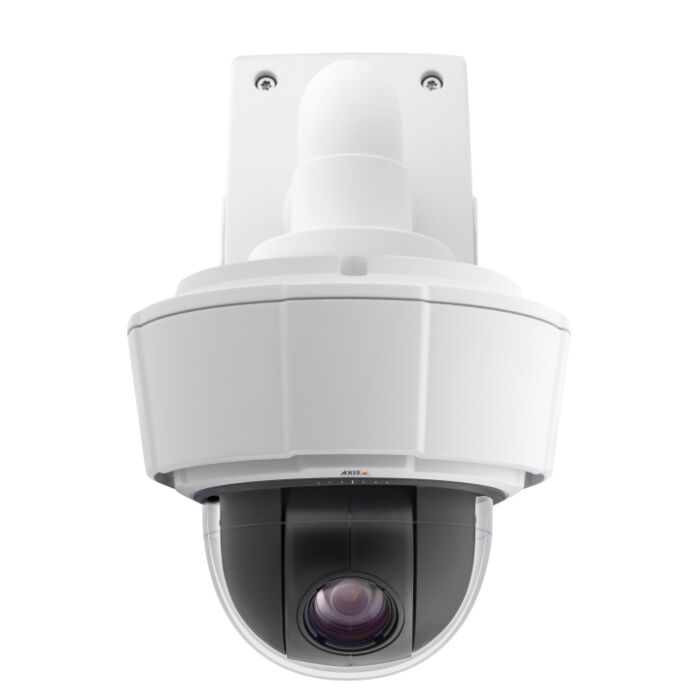

AXIS P5534-E PTZ Dome IP Camera 0315-002

Availability: Out of stock

£1,957.20 Incl VAT Excl VAT. £1,631.00

Axis 0315-002 ~ EOL

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Axis P5534-E is now End of Life.


May we recommend the Axis P5624-E or please feel free to browse our Axis category.


The outdoor-ready AXIS P5534-E PTZ Dome Network Camera offers outstanding HDTV-quality video and 18x zoom, enabling surveillance of a large area and great details when zooming in. With quick and reliable installation features, it is ideal for city and perimeter surveillance, and for use at airports and train stations.


Included Accessories:
- T8123 high PoE 1 port midspan
- IP66 rated RJ45 connector kit
- Clear and smoked dome cover
- Installation guide
- CD with user manual
- Recording software
- Installation and management tools
- Windows decoder 1 user license


Axis P5534-E User Manual
Axis P5534 Installation Guide
Axis IP Camera Articles Axis HDTV zoom performance
Axis P5534 Housing and Accessories
Weatherproof RJ45 Connector
Axis Product Comparison Table February 2015
Axis Product Guide
FREE 30-day trial of Axis Camera Station software
Articles about Axis Network Cameras

Product Datasheets

AXIS P5534-E PTZ Dome IP Camera 0315-002 Datasheet (0.44MB)

Frequently bought together

+
+

Price for all selected :

£2,114.58Incl VAT

Excl VAT. £ 1,762.15

  1.      This itemAXIS P5534-E PTZ Dome IP Camera 0315-002
  2.    Axis T91A67 Pole Bracket 5017-671
  3.    Axis T91A64 Corner Bracket for the latest PTZ Dome Network Cameras 5017-641

Key Features

- HDTV 720p, day/night and H.264
- Outdoor-ready: IP66- and NEMA 4X-rated
- 18x optical zoom
- Advanced Gatekeeper functionality
- High Power over Ethernet (IEEE 802.3at)

Compliance with SMPTE standards
AXIS P5534-E provides HDTV 720p in compliance with SMPTE 296M standard of 1280 x 720 pixel resolution, full frame rate, HDTV color fidelity and a 16:9 format. The day and night camera can deliver multiple H.264 and Motion JPEG streams simultaneously. H.264 greatly optimizes bandwidth and storage use without compromising image quality, while Motion JPEG is supported for increased flexibility.
Advanced pan/tilt/zoom capabilities:

The PTZ functionality of the camera provides 18x optical and 12x digital zoom with autofocus. It can pan 360° due to the unique Auto-flip functionality, which allows the camera to simulate a continuous pan beyond the mechanical stop, thereby enabling an operator to continuously follow an object. What's more, the P5534 incorporates the Advanced Gatekeeper functionality, which enables the camera to automatically pan, tilt and zoom in when there is activity in the scene and zoom out after a preset time.

The PTZ dome camera provides 18x optical and 12x digital zoom with autofocus. Due to its HDTV resolution, the camera's 18x zoom provides not only a level of detail that is comparable to a 36x-zoom, 4CIF camera, but also the extra advantage of a wider, 16:9 field of view.

With the unique Auto-flip functionality, it can pan 360° to continuously follow an object. The camera's Advanced Gatekeeper functionality enables it to automatically move to a preset position when motion is detected in a pre-defined area.

Power over Ethernet for easy installations:
AXIS P5534-E is powered with High Power over Ethernet, which makes installation easy since only one cable is needed for carrying power, video and PTZ commands. A High PoE midspan is supplied.

Additional Information

Weight 2000.0000
Image chip size 1/3"
Image chip type CCD
Image Compression MJPEG & H.264
Audio N/A
Auto-Focus Yes
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes - no splitter required
Max. Resolution 1280 X 720
Min. low-light lux 0.75
Supply Volts 230V AC or POE
Lens Mount built-in lens
Lens Focal Length 4.7-84.6mm
Viewing Angle 3.2-55.2°
Aspect ratio 16:9
Megapixels 1.3 MP
Supplied with lens Yes
Accepts auto-iris lens N/A
Max. Images per second 25
PSU included Yes - POE midspan
Power Consumption max. 25W
Warranty 3 Years
Launch Date July 2010
Resolution N/A
Colour N/A
Built-in PIR N/A
