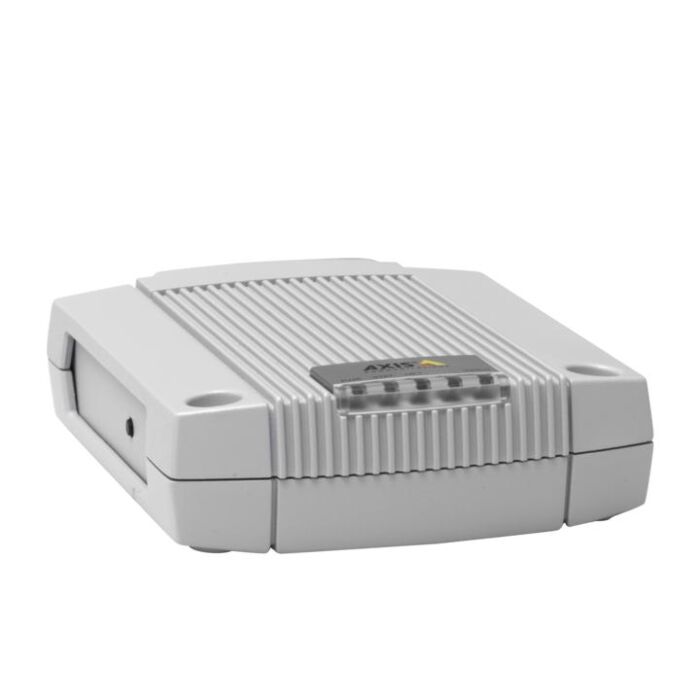

AXIS P7701 Video Decoder 0319-002

In stock
£381.60 £318.00
AXIS P7701 Video Decoder with digital or analog video output and the ability to decode H.264, MPEG-4 and Motion JPEG streams.
Included Accessories: - Power supply - Mounting and connector kits - Installation guide - CD with installation and management tools - Software and user manual
Axis P7701 User Manual Axis P7701 Installation Guide Axis P7701 Drawing Axis Product Comparison Table Axis Product Guide

Product Datasheets

AXIS P7701 Video Decoder 0319-002 Datasheet (0.26MB)

- Decodes H.264, MPEG-4 and Motion JPEG - Digital or analog video output - Sequence mode and auto-connect on alarm - High-quality audio - Power over Ethernet The AXIS P7701 Video Decoder provides a simple monitoring solution by enabling digital or analog monitors to connect to and display live video from Axis network cameras and video encoders. The P7701 is ideal for use with a public view monitor, and in large and small surveillance systems. The P7701 can decode full frame rate video streams in H.264 and MPEG-4 in all resolutions up to D1 (720x480 pixels in NTSC, 720x576 in PAL). Motion JPEG can be decoded in all resolutions up to 720p (1280x720). The P7701 can scale video to a maximum resolution of 800x600 pixels on LCD screens, while on analog monitors, the maximum resolution is D1. The decoder can also output high-quality audio as it can decode audio in AAC, G.726 or G-711 formats. Through an RS-422/RS-485 serial port, the P7701 allows serial commands to be sent to legacy equipment used in a surveillance system. An unlimited number of video sources can be shown in sequence. With auto-connect on alarm, the P7701 can automatically display alarm-triggered video. The decoder can also be powered through Power over Ethernet, which simplifies installation. In situations where only live video display is required such as with a public view monitor at a store entrance, the P7701 offers a more cost-effective solution than connecting a monitor to the network via a PC. The P7701 can also complement a video management system by helping to offload the main server from decoding digital streams simply for display purposes.
Number of Channels 256
Supply Volts 8-20V DC or POE
PSU included Yes
Max. Resolution 1280 X 720
Max. Images per second 30
POE built-in Yes
Warranty 1 Year
Write Your Own Review
You're reviewing:AXIS P7701 Video Decoder 0319-002
Your Rating
Customer Questions
Hi, do they only work with axis cameras?, I have Sony and Panasonic

It's best to use a decoder by the same manufacturer as the IP camera. You'd need to test and prove that it works cross-manufacturer and I'm afraid we just don't have that data.

Will it decode a video stream from a VLC player, or only from axis encoder/camera?

Hi Vinod, The decoder needs to be 'pointed at' another device's network IP address, such as an IP camera or IP video server, so as far as I'm aware I don't think you can decode from a media player.
