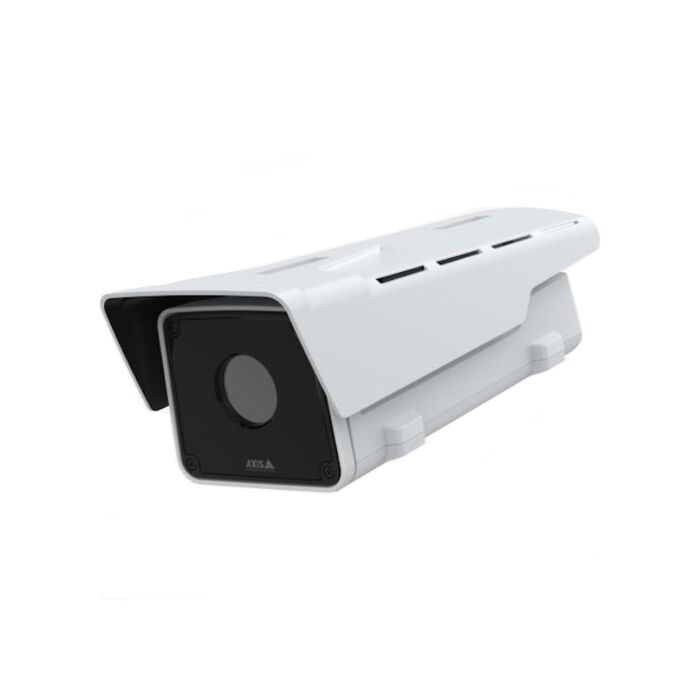

Axis Q2101-TE Thermal Camera
SKU: 026xx-001
Out of stock
Key features:
- Uncooled Microbolometer image sensor, 384x288 resolution
- Pixel size: 17 μm | Spectral range: 8-14 μm
- Athermalised Lens - available with 7mm, 13mm, or, 19mm focal length
- Features Thermometric Guard Tour capabilities and Early Fire Detection analytics
- Designed for Spot Temperature reading
- Object Temperature Range: -40°C to 350°C
- Temperature Accuracy - Below 120°C: ±5 °C (±9 °F) accuracy | Above 120°C: ±15% accuracy
- Equipped with built-in Cybersecurity features
- Supports Edge-to-Edge technology
- Supports DLPU (Deep Learning Processing Unit) for smart compute capabilities
- Memory - 2048 MB RAM, 8192 MB Flash
- Robust casing, with IP66/67 ingress protection, and IK10 impact rating
- Operating Humidity - 10-100% RH (condensing)
This product is powered by PoE.
Please note: this product does not come with a power supply.
Axis Q2101-TE Installation Guide
Axis Q2101-TE Dimensions
Axis Q2101-TE Repainting Instructions
Axis Product Comparison Table
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
The Q2101-TE is a thermal camera, from Axis, designed for large-scale remote temperature monitoring. It comes equipped with a selection of capabilities and analytics allowing it to fulfil this purpose as effectively as possible, these include; thermometric guard tour, early fire detection, spot temperature reading, and more..
Features Explained:
- Thermometry refers to capabilities that allow the camera to detect objects using infared radiation. Thermometric cameras can measure absolute temperatures, and are capable of accurate object detection regardless of lighting conditions - working effectively even in complete darkness.
- Isothermal Palette is a mode that allows the user to select a colour range to represent different temperatures in a scene. Each colour in a isotherm palatte will respond to a specific temperature value. Users can choose between black and white ranges, colour ranges, or a mix.
- Thermometric Guard Tour is a way to measure temperatures in predefined polygonal detection areas. To use this capabillity the camera must be installed on a positioning unit, to move between preset positions. Users can add up to 256 presets, with up to 10 detection areas, effective for large-scale moniotoring.
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed.Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- EIS (Electronic Image Stabalisation) is an image enhancement capability equipped to provide smooth video quality in environments subject to vibrations. This is achieved using built-in gyroscopic sensors that continuously detect the camera's movements and vibrations.
Supported Analytics:
Included - AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, Early Fire Detection, Active Tampering Alarm, Audio Detection.
Supported - AXIS Perimeter Defender, AXIS Camera Application Platform (enables installation of third-party applications)
Box Content:
- Camera (Q2101-TE)
- Installation Guide
- TORX T30 bit
- TORX T20 screwdriver
- Terminal block connectors
- Connector guard
- Cable gaskets
- Owner Authentication key

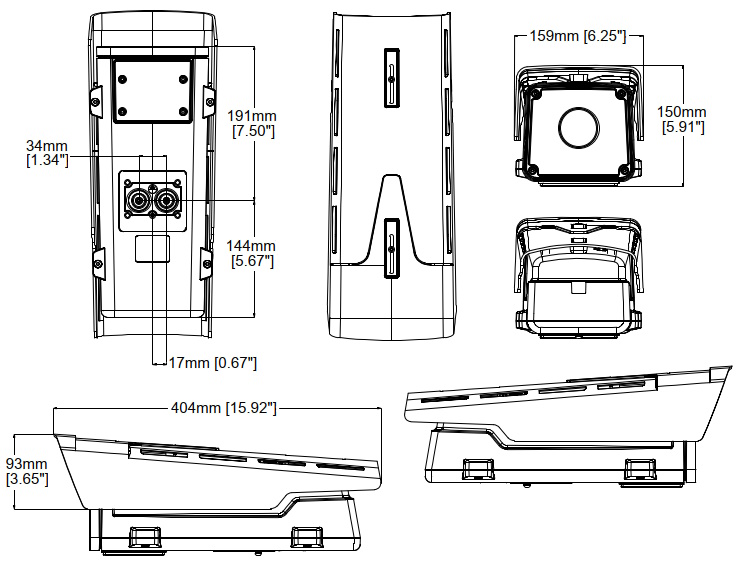

Dimensions:
