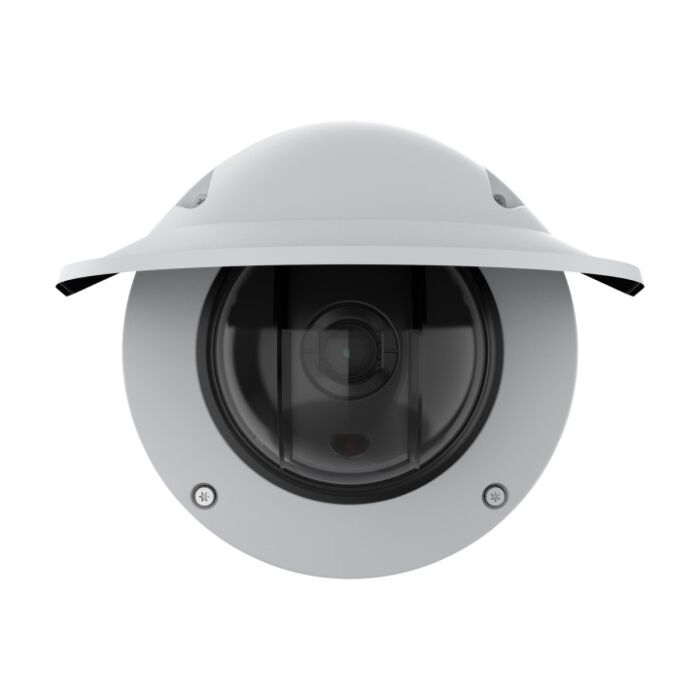

Axis Q3536-LVE 4MP Outdoor Network Dome Camera
SKU: Q3536-LVE~EOL
Out of stock
The Q3536-LVE is now End of Life.
We recommend the Q3546-LVE or Q3556-LVE as suitable replacements.
Key features:
- Outstanding 4-megapixel image quality
- 1/1.8" progressive scan RGB CMOS
- Varifocal lens
- Support for analytics with deep learning
- IR-shielded dome to prevent reflections
- IR effective up to 40m (9mm option) and 60m (29mm option)
- Built-in cybersecurity features
- IP6K9K weather-resistant
- IK10+ vandal-resistant
- MicroSD/SDHC/SDXC card slot for onboard storage
- ONVIF compatible
This product can be powered by 10-28V DC or PoE. We recommend PoE for ease of use.
Please note: this product does not come with a power supply.

Axis Q3536-LVE User Manual
Axis Q3536-LVE Installation Guide
Axis Assigning IP Address User Manual
Axis Product Comparison Table

Details
The Axis Q3536-LVE is a 4-megapixel dome camera that provides users with outstanding image quality and forensic details, regardless of the weather conditions. The camera features OptimisedIR and an innovative IR-shielded dome which prevents IR glare on the dome from rain or snow droplets, ensuring clear, sharp images consistently. Not only this but Lightfinder 2.0 and Forensic WDR deliver true colours and great detail even in challenging lighting conditions as well as near darkness. Electronic image stabilisation ensures that the picture is kept steady when the camera is subject to vibrations.
The Q3536-LVE features a deep learning processing unit (DLPU) which eliminates the need for expensive servers and allows for a faster and more scalable system. As well as this, processing capabilities are improved to enable users to collect and analyse even more data than before. Support for ACAP version 4 means users can add value to their system with tailor-made applications based on deep learning on the edge available from Axis and their partners.
With an IK10+ rated housing the camera is protected against redirections, defocusing and impacts, making the unit incredibly robust. Additionally, the Q3536-LVE can withstand temperatures as low as -50°C and as high as 60°C and has an IP6K9K rating protecting the camera from harsh outdoor weather conditions. As well as having sensors for intrusion and shock detection the unit is packed with built-in cybersecurity features such as Axis Edge Vault which prevents unauthorised access and safeguards the system.
Included Accessories:
- Installation guide
- Windows decoder 1-user license
- Drill hole template
- Terminal block connectors for DC and I/O
- RESISTORX L-key
- Connector guard
- Cable gasket
- Conduit adapter
- Mounting bracket
- Weathershield
