Axis Q3839-PVE 29MP Panoramic Multisensor Camera
SKU: 02657-001
Contact Us for Stock Levels
Key features:
- 4 x 8.3MP 1/1.8” Progressive Scan RGB CMOS Sensors
- 8K Resolution
- 180° Horizontal and 90° Vertical Field of View
- Horizon Straightening
- Lossless Zoom
- Zipstream
- DLPU compute capabilities (Deep Learning Processing Unit)
- Built-in cybersecurity with Axis Edge Vault
- IP66-/IP67-, IK10, and NEMA 4X-rated
- Operating Conditions (temperature: -40°c to 50°c) (humidity: 10 to 100% RH (condensing)
- 5 year warranty
This product is powered by PoE.
Please note: this product does not come with a power supply.
Axis Q3839-PVE User Manual
Axis Q3839-PVE Installation Guide
Axis Q3839-PVE Dimensions
Axis Q3839-PVE Drill Template
Axis Q3839-PVE Repainting Instructions
Axis Product Comparison Table
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
With 29MP at 30fps and seamless stitching of all four images, the Axis Q3839-PVE delivers cohesive 180° panoramic overviews for complete situational awareness. Lossless zoom lets you zoom in without degrading image sharpness. Plus, remote pan/tilt/roll functionality ensures fast, cost-efficient installation. Built on a dual Axis system-on-chip, it includes a deep learning processing unit to run advanced features and powerful analytics on the edge. For instance, Axis Object Analytics can detect, classify, track, and count humans and types of vehicles. Furthermore, Axis Edge Vault safeguards the device and offers FIPS 140-2 Level 2 certified key storage and operations.
Features Explained:
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- AXIS Object Analytics comes pre-installed, and offers a selection of analytics for human and vehicle classification, powered by AI-based algorithms.
Object classes: humans / vehicles (types: cars, buses, trucks, bikes)
Features: line crossing, object in area, occupancy in area, up to 10 scenarios, visualised metadata (with trajectories and colour-coding), polygon include/exclude areas, and, ONVIF motion alarm event.
- Zipstream supports H.264 and H.265 video compression, and significantly reduces bandwidth and storage requirements. This allows for improved storage efficiency.
- Horizon Straightening is a feature in panoramic multisensor cameras that compensates for any physical tilt of the camera, thereby removing distortion and enabling the horizon to be straight even though it is not in the middle of the image.
DORI (Detect, Observe, Recognise, Identify):
| Detect | Observe | Recognise | Identify | |
| Definition | 25px/m | 63px/m | 125px/m | 250px/m |
| Distance | 88.3m | 35m | 17.7m | 8.8m |
Supported Analytics:
Box Content:
- Q3839-PVE Camera
- Weathershield
- Installation Guide
- Drill Template
- Connector Guard
- Cable Gaskets
- Conduit Adaptor
- IO Connector
- Owner Authentication Key

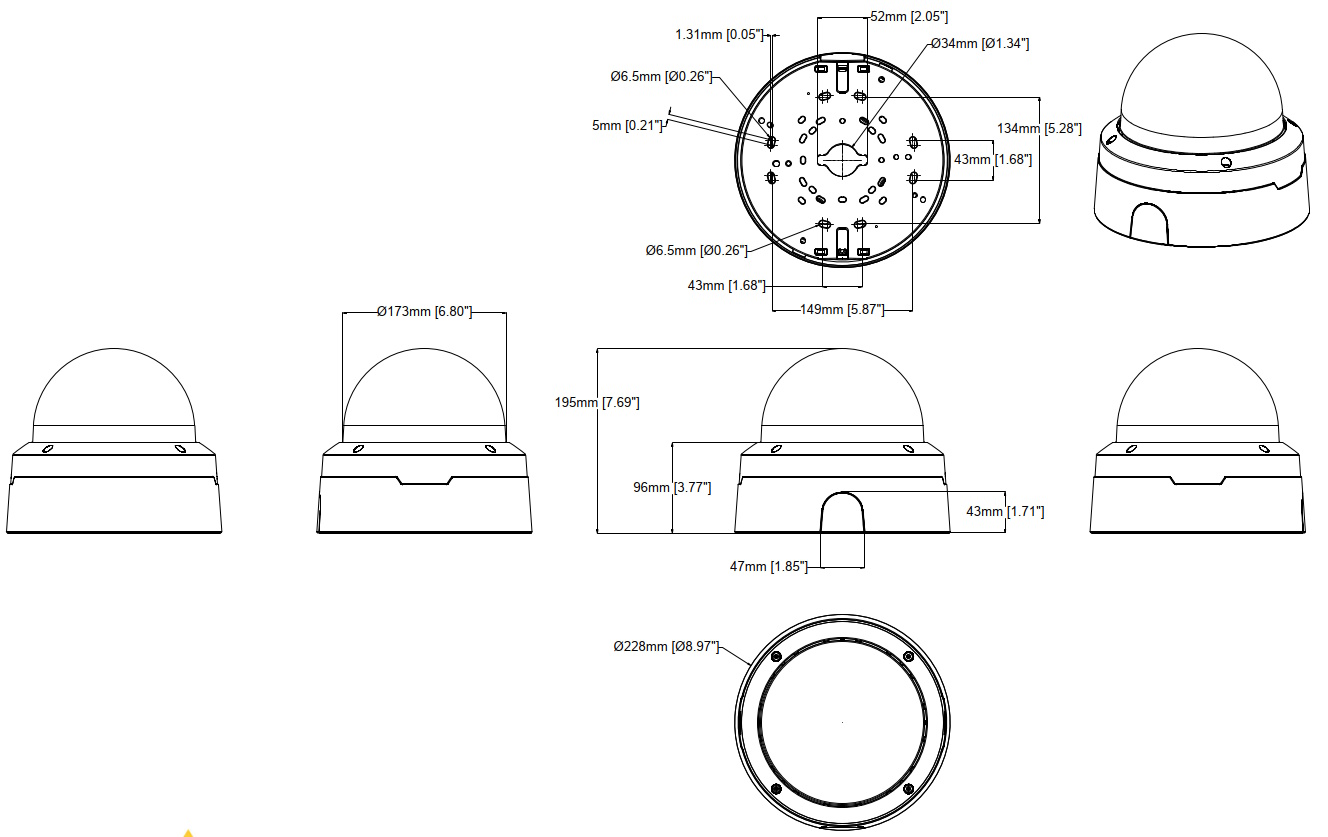

Dimensions:
