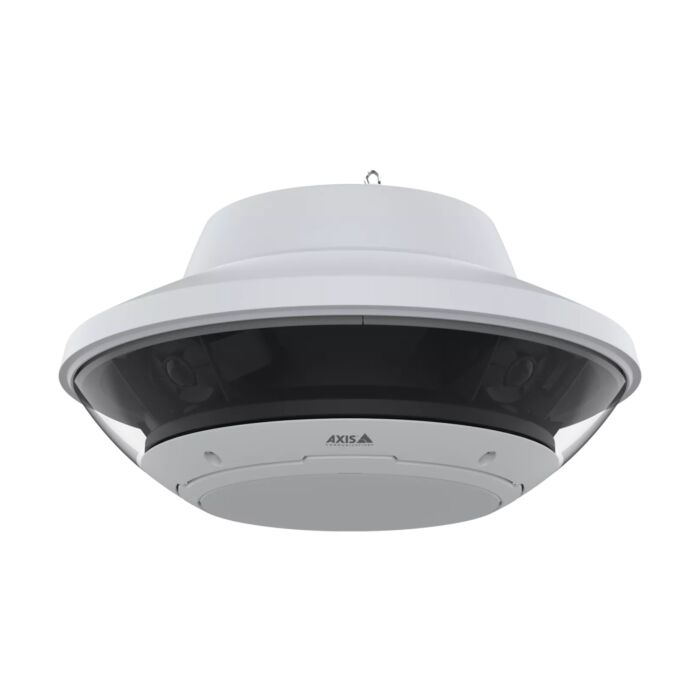

Axis Q6020-E Multisensor Panoramic Camera
SKU: 02956-001
Contact Us for Stock Levels
Key features:
- 360° Field of View
- 4 x 5MP Sensors
- Can be used with current Axis Q60 PTZ Series
- M14 Lens Mount, Fixed Iris
- Forensic WDR up to 120dB
- Easy installation
- Support for Wi-Fi dongle
- Autofocus
- Auto-alignment functionality
- Built-in cybersecurity with Axis Edge Vault
- Operating Conditions (temperature: -50°c to 55°c) (humidity: 10 to 100% RH (non-condensing)
- 5 year warranty
This product is powered by PoE.
Please note: this product does not come with a power supply.
Axis Q6020-E User Manual
Axis Q6020-E Installation Guide
Axis Q6020-E Repainting Instructions
Axis Q6020-E Dimensions
Axis Product Comparison Table
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
The Axis Q6020-E offers 4 x 5MP with four 1/2" sensors. Designed for operation with Axis Q60 PTZ Series, you can move from overview to zoomed-in details in one click. A deep learning processing unit lets you run advanced features and powerful analytics at the edge. Autofocus and auto-alignment functionality can automatically adjust the camera sensors and PTZ camera, eliminating the need for hands-on fine-tuning. Furthermore, Axis Edge Vault safeguards the device and protects sensitive information from unauthorised access. A USB port allows installers to insert a Wi-Fi dongle and quickly see the camera view as they adjust it.
Please Note: The TQ6820-E Solo Kit is sold separately.
Features Explained:
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- AXIS Object Analytics comes pre-installed, and offers a selection of analytics for human and vehicle classification, powered by AI-based algorithms.
Object classes: humans / vehicles (types: cars, buses, trucks, bikes)
Features: line crossing, object in area, occupancy in area, up to 10 scenarios, visualised metadata (with trajectories and colour-coding), polygon include/exclude areas, and, ONVIF motion alarm event.
- WDR (Wide Dynamic Range) helps to ensure that camera images are usable and clear. In some scenes, there can be a contrast between the darkest and brightest spots in a scene, this can cause the image to be under or overexposed making it difficult, even impossible to identify objects and people. WDR technology can help rectify this issue, producing clear images regardless of difficult light scenarios.
Supported Analytics:
Included Accessories:
- Q6020-E Camera
- Adapter Bracket
- Installation Guide
- Owner Authentication Key

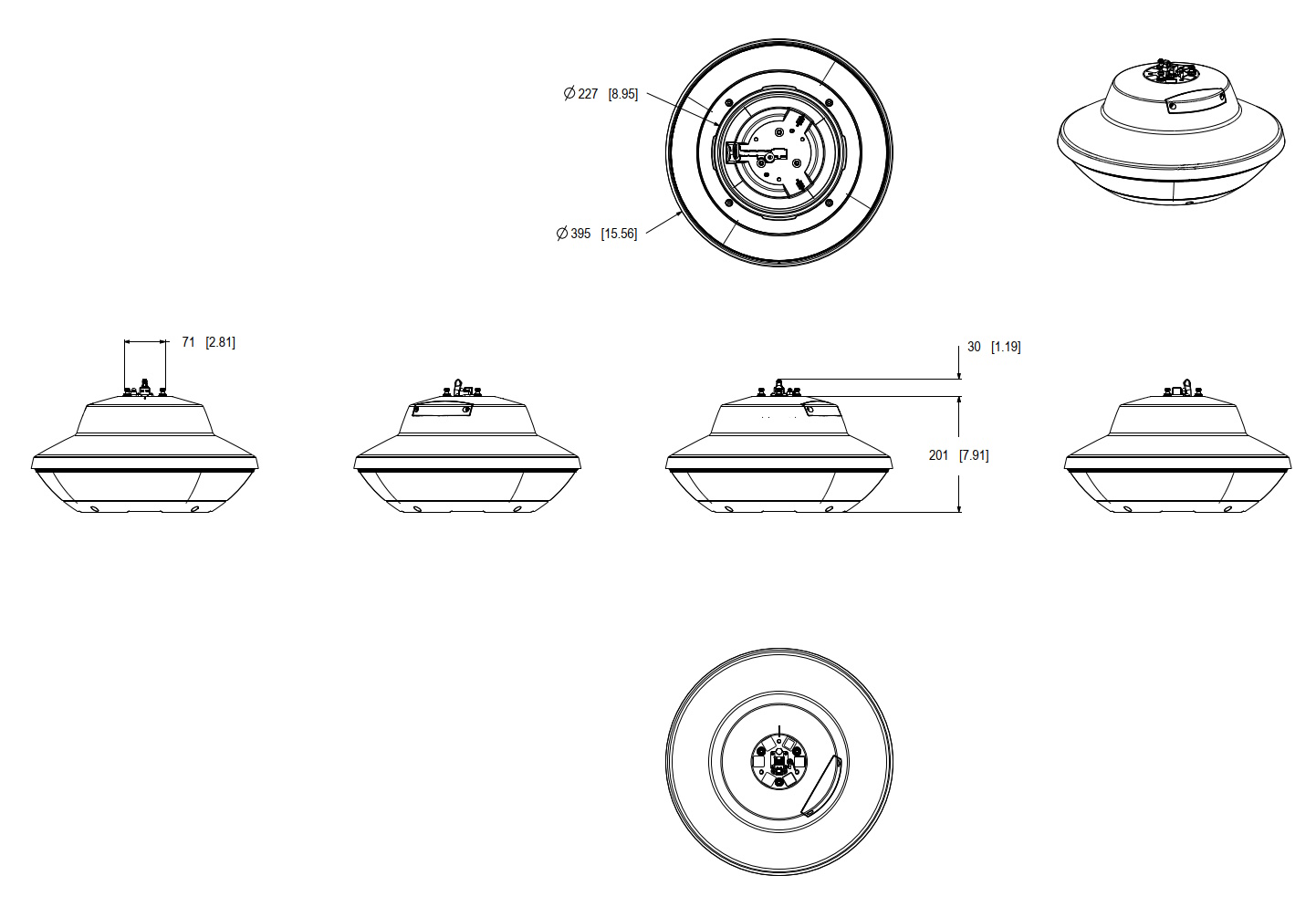

Dimensions:
