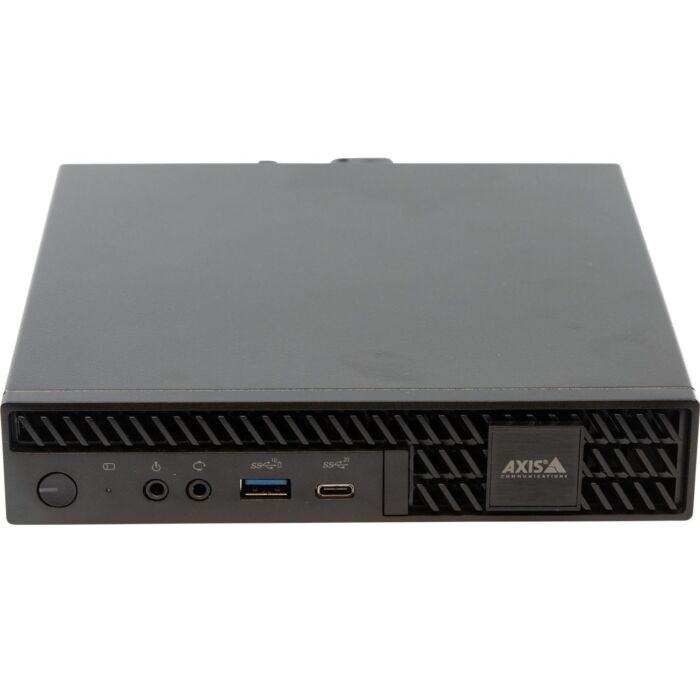

Axis Camera Station S9301 Workstation 02693-003
SKU: S9301~EOL
Out of stock
The Axis S9301 is now End of Life.
We recommend the Axis S9301 Mk II as a suitable replacement.
Key Features:
- Flexible and compact solution
- Intel Core processor
- 8GB memory (2 x 4GB)
- Supports up to two 4K monitors
- Axis Camera Station client software included
- 0°C ~ 45°C operating temperature
- Extensive support and 5-year warranty



This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.

Details
The Axis S9301 is a compact and flexible workstation that can be used either as a client when connected to the server, or as a server when used in combination with the Axis S30 Recorder Series. The unit is able to support up to two 4K resolution monitors for optimal overview.
With a sleek design, the S9301 is ideal for use in applications where space is limited. Created with quick installation in mind, the device comes preloaded with Axis Camera Station client software to enable a quick connection to the server. As well as this, the Axis Recorder Toolbox is integrated and features an intuitive installation wizard making it easy to set up, hostname, network settings and date and time settings.
| Processor | Intel Core processor |
| Memory | 8GB (2 x 4GB) |
| Graphics Card | Intel UHD graphics |
| Power | Max. 90W, 100-240V AV, 1.5A 50/60Hz, 19.5V DC, 4.62A External AC/DC adapter |
| Connectors | Front Side: 1 x Audio line in/out 1 x Universal audio jack 1 x USB 3.2 1 x USB 3.2 gen 2 2x2 USB-C port Rear Side: 1 x RJ45 Ethernet 4 x USB 3.2 2 x DisplayPort 1.4a |
| Video Streaming | Live View: 1 stream x 4K at 30fps 4 split x 1080p at 30fps 9 split x 720p at 30fps 16 split x 360p at 15fps 25 split x 360p at 15fps 36 split x 360p at 15fps Any combination of the above for maximum of two 4K monitors where only one monitor can show streams at 30 fps Playback: Supports the same split scenarios as for live view |
| Operating System | Microsoft Windows 10 IoT Enterprise LTSC 2021 Built-in operating system recovery: yes Operating system drive: 256GB SSD |
| Security | Support for encrypted operating system drive FIPS 140-2 level 2 certified Trusted Platform Module (TPM 2.0) |
| Compliance | NDAA (National Defence Authorisation Act) TAA (Trades Agreements Act) |
| Dimensions | 182 x 36 x 178mm |
