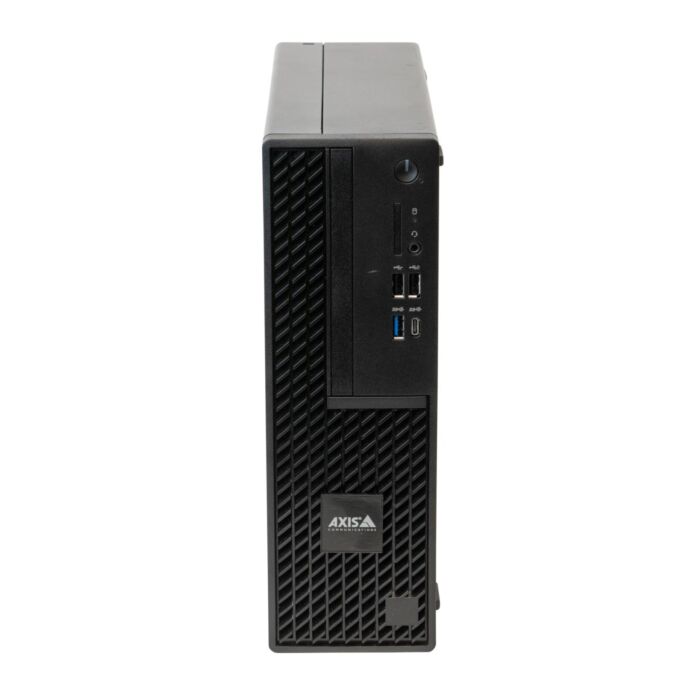

Axis Camera Station S9302 Workstation 02692-003
SKU: 02692-003~EOL
Out of stock
The Axis S9302 is now End of Life.
We recommend the Axis S9302 MkII as a suitable replacement.
Key Features:
- Powerful and compact solution
- Intel Core processor
- 16GB memory (2 x 8GB)
- Supports up to four 4K monitors
- Axis Camera Station client software included
- 0°C ~ 45°C operating temperature
- Extensive support and a 5-year warranty



This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.

Details
The Axis S9302 is a compact and flexible workstation that can be used either as a client when connected to the server, or as a server when used in combination with the Axis S30 Recorder Series. The unit is able to support up to four 4K resolution monitors for optimal overview.
With a sleek design, the S9302 is ideal for use in applications where space is limited. Created with quick installation in mind, the device comes preloaded with Axis Camera Station client software to enable a quick connection to the server. As well as this, the Axis Recorder Toolbox is integrated and features an intuitive installation wizard making it easy to set up, hostname, network settings and date and time settings.
| Processor | Intel Core processor |
| Memory | 16GB (2 x 8GB) |
| Graphics Card | Intel UHD graphics |
| Power | 300 W 80+ Platinum (100–240 V AC, 4.2 A, 50/60 Hz) |
| Connectors | Front side: 1x Universal audio jack 2x USB 2.0 1x USB 3.2 1x USB 3.2 gen 2 2x2 USB-C port Rear side: 1x Universal audio jack 1x DisplayPort™1.4a 1x Header for remote power button 4x USB 3.2 2x USB 2.0 1x RJ45 Ethernet 3x Mini DisplayPort™1.4 |
| Video Streaming | Live view: 1 stream x 4K at 30 fps 4 split x 1080p at 30 fps 9 split x 720p at 30 fps 16 split x 360p at 15 fps 25 split x 360p at 15 fps 36 split x 360p at 15 fps Any combination of the above for maximum four 4K monitors where only two monitors can show streams at 30 fps. Playback: Supports the same split scenarios as for live view. |
| Operating System | Microsoft® Windows® 10 IoT Enterprise LTSC 2021 Built-in operating system recovery: yes Operating system drive: 256 GB SSD |
| Security | Support for encrypted operating system drive FIPS 140-2 level 2 certified Trusted Platform Module (TPM 2.0) |
| Compliance | TAA (Trades Agreements Act) |
| Dimensions | 290 x 93 x 293 mm |
