Veracity LONGSPAN MAX VLS-LSM-C Camera Device
SKU: VLS-LSM-C
Contact Us for Stock Levels
Key Features:
- LONGSPAN enhanced with 90W PoE capability
- Camera device, for base device see VLS-LSM-B
- Long range point-to-point Ethernet over Cat5e or Cat6 cable
- Unrestricted 100Base-TX with PoE at over 820m
- Can deliver 60W at 200m, 40W at 350m
- Ruggedised for high performance over a wide temperature range
- Smart PoE power and diagnostic display for reliable installation
- Fully automatic, simple to install and maintenance-free
- LED Status indicators
- Dimensions: 113mm(L) x 75mm(W) x 22mm(H)
Please note that the VLS-LSM-C may not be available for Next Working Day delivery. Please contact our sales team at [email protected] for stock inquiries.
Veracity LONGSPAN VLS-LSM-C Quick Guide
Veracity Product Guide
Details
The Veracity LONGSPAN MAX VLS-LSM-C camera device delivers PoE for even the most power-hungry external PTZ cameras at considerable distances. The Camera Device is used alongside the Base Device (sold separately) to achive the LONGSPAN link with higher POE power.
Designed to connect IP cameras at ranges of up to 820 metres (with Cat6 cable), supporting the 200Mbps aggregate bandwidth required for full-duplex 100Base-TX Ethernet. LONGPSAN devices ensure perfect image quality at all times, even at the longest vable ranges.
LONGSPAN devices have built-in surge protection, but for long external runs additional surge protection is strongly recommended.
POE power levels drop quickly with distance. For maximum power delivery to the IP camera, a local PSU may be used to power the LONGSPAN Max Camera devce, in which case, LONGSPAN Max Base could be replaced with a LONGSPAN Lite. LONGSPAN Max Base and Camera extenders deliver full bandwidth Ethernet up to 820 metres. The Base unit can output the maximum POE permitted by the 802.3bt standard.
This unit has been designed for installers with self-configure for the best performance every time they are connected. No user setup, no DIP switch settings and no system pairings are required. Veracity's SAFEVIEW smart LED display provides instant, visible confirmation of link status, power availability and useful diagnostic information, from each device at either end of the cable.

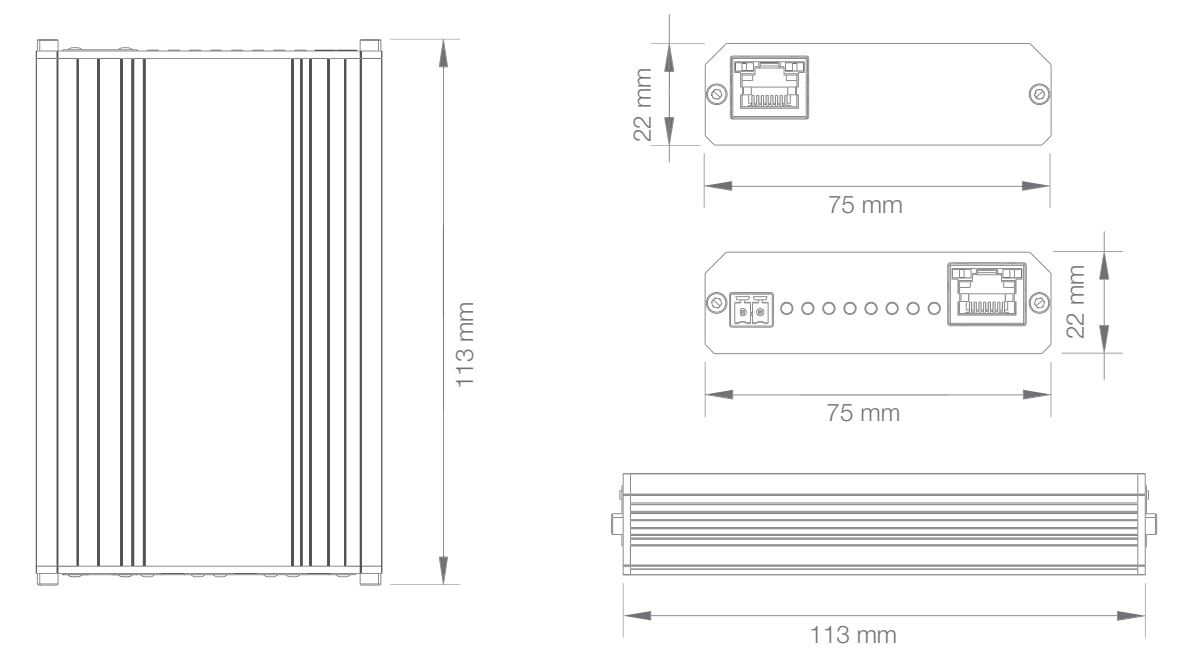

Veracity VLS-LSM-C Camera Unit Dimensions
