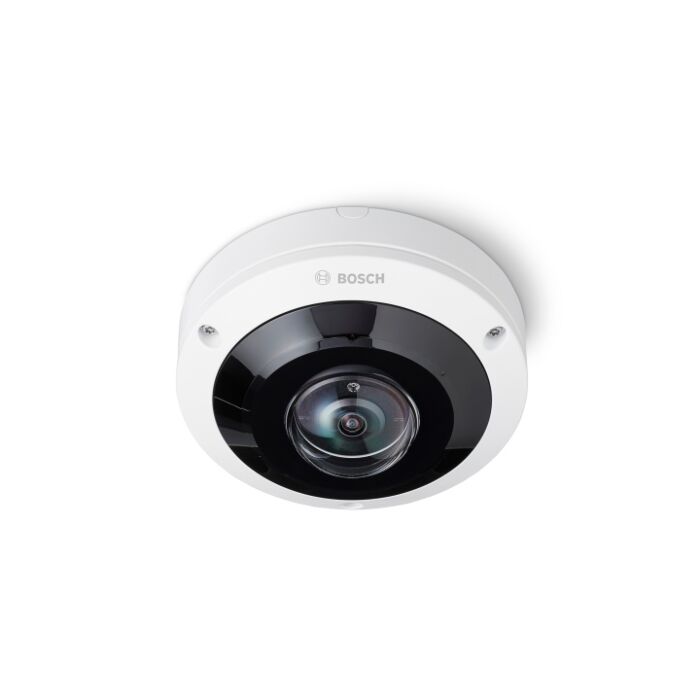

Bosch NDS-5703-F360LE 6MP Flexidome Panoramic 5100i Outdoor Fixed Dome Camera
SKU: NDS-5703-F360LE
Contact Us for Stock Levels
Key Features:
- 360° panoramic view
- 6MP resolution
- Up to 30fps
- High dynamic range
- Built-in intelligent video analytics
- Compact design
- IP66 rated
- IK10 rated
- Integrated IR
This product can be powered by 12V DC, 24V AC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Bosch NDS-5703-F360-LE Installation Guide
Bosch NDS-5703-F360-LE Installation Manual
Bosch NDS-5703-F360-LE User Manual
This product may not be immediately available from UK stock, in which case it will take 7 days to fetch it from their European warehouse.
Details
The Bosch NDS-5703-F360LE is a 6MP panoramic camera that has been designed for indoor and outdoor use with its IP66 and IK10-rated housing. This safeguards the camera against, dust, rain and harsh outdoor weather conditions as well as protecting the camera against tampering and vandal attempts.
The stereographic, panoramic lens provides full 360° coverage without blind spots which makes the NDS-5703-F360LE ideal for use in applications that require a wide area of cover in a single view. As well as this the camera is equipped with a 6MP sensor offering up to 30fps to ensure real-time motion. The image circle offers a 4.5MP effective resolution with the help of the stereographic lens.
Bosch's Intelligent Video Analytics software is combined with the full panoramic vision to provide an extremely powerful surveillance tool to enrich full situational awareness. As well as this the camera features intelligent tracking which enables movement to be followed continuously throughout the full image circle.
Fitted with an integrated microphone array with three digital microphones for audio analytics and Audio AI. This provides users with the functionality to hear events including glass breaking, gunshot detection, screaming and other loud noises. Sounds can be classified and location can be detected, users do not need to record audio as it is possible to examine sound characteristics only. It is worth noting that the microphone can be permanently blocked via a secure key if it is required by local laws.
DORI is a standard system used to define the ability of a camera to distinguish persons or objects within a covered area. The maximum distance at which a camera/lens combination can meet these criteria is shown below:
| DORI | Detect | Observe | Recognise | Identify |
| 1.155mm | 28m | 11.5m | 5.5m | 2.1m |
Parts Included:
- Mount plate
- Camera base
- Camera dome cover
- TR20 Allen key for camera installation
- 8-pin audio and I/o connector
- 2-pin power connector
- RJ45 punch through aid
- M320 rubber grommets (attached to the camera)
- Quick installation guide
- Safety information
- Installer UX labels
