Bosch NBE-7604-AL DINION Inteox 7100i IR 8MP Bullet Camera
SKU: NBE-7604-AL~EOL
Out of stock
The NBE-7604-AL is now End of Life.
We recommend the NBE-7704-AL as a suitable replacement.
Key Features:
- 8MP (3840x2160) resolution
- 3.6-10mm motorised lens
- 97° ~ 46° Horizontal FOV
- Up to 30fps
- IR range up to 40m
- H.265 reduces bit rate up to 80%
- Built-in Intelligent Video Analytics
- Open platform that allows third party apps from the App Store from Azena
- Easy installation when using PoE
This product can be powered by 24VAC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Bosch DINION 7100i IR Installation Guide
Bosch DINION 7100i IR User Manual
This product may not be immediately available from UK stock, in which case it will take 7 days to fetch it from their European warehouse.
Please contact us before purchasing.
Details
The NBE-7604-AL is a bullet camera from Bosch's DINION 7100i IR range that provides 8MP (3840x2160) resolution for exceptional 4K UHD image quality. The lens is motorised and 3.6-10mm in focal length.
The NBE-7604-AL also includes built-in Intelligent Video Analytics that enforces combinable alarm rules such as line crossing and loitering. When alarm rules are triggered, the user receives an alert and the data is quickly retrieved with incredibly high levels of accuracy. We recommend using PoE to power this camera as the installation is easier and more cost effective, as the cameras so not require a local power source.
DORI is a standard system used to define the ability of a camera to distinguish persons or objects within a covered area. The maximum distance at which a camera/lens combination can meet these criteria is shown below:
| DORI | Detect | Observe | Recognise | Identify |
| 3.6~10mm | 68m/181m | 27m/72m | 14m/36m | 7m/18m |
Parts Included:
- NBE-7604-AL Camera
- Quick installation guide
- Safety information

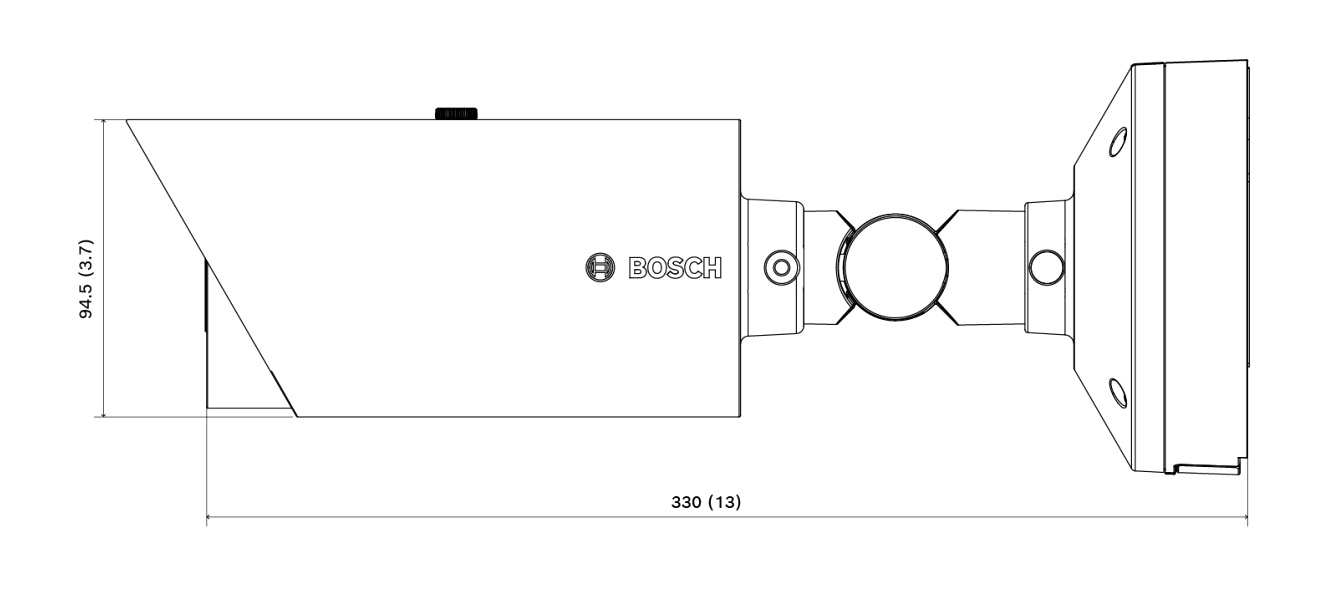

Dimensions in mm (inch):
