Bosch NBE-7704-ALX DINION 7100i IR 8MP HDR X 5.9-13mm Bullet Camera
SKU: NBE-7704-ALX
Contact Us for Stock Levels
Key Features:
- 8MP (3840x2160) resolution
- 5.9-13mm motorised lens
- Starlight X technology
- HDR (High Dynamic Range) X
- Deep learning based detection with IVA PRO
- Intelligent IR range up to 80m
- Multiple configurable scene modes
- Easy installation when using PoE
- IP66-, IP67-, and IK10-rated
This product can be powered by 12VDC, 24VAC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Bosch DINION 7100i IR Installation Guide
Bosch DINION 7100i IR User Manual
This product may not be immediately available from UK stock, in which case it will take 7 days to fetch it from their European warehouse.
Please contact us before purchasing.
Details

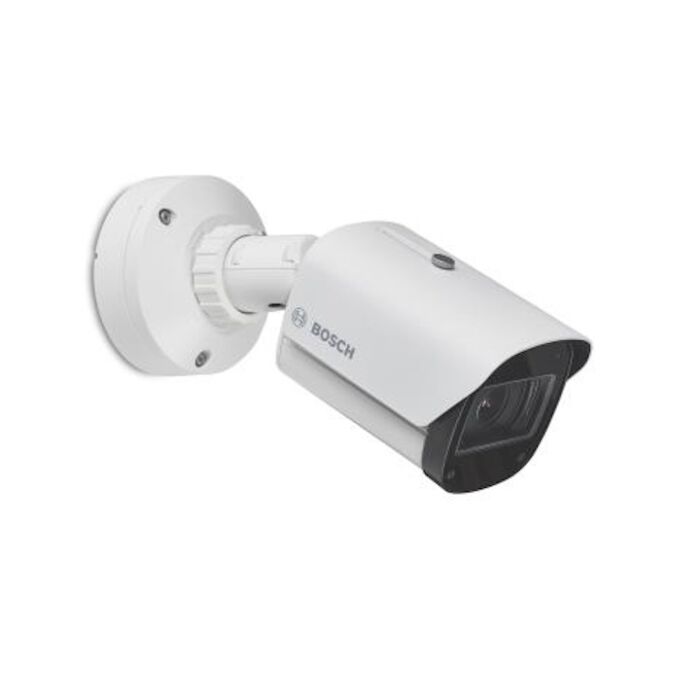

The NBE-7704-ALX is a bullet camera from Bosch's DINION 7100i IR range that provides 8MP (3840x2160) resolution and multiple scene modes. Its incredibly stable design with corrosion resistance and IP67 Ingress Protection rating makes it perfect for demanding outdoor applications, including traffic monitoring, critical infrastructure and perimeter security.
The NBE-7704-ALX includes Starlight X technology and HDR X, ensuring that the exceptional image quality is maintained in low lighting without HDR motion blur and artefacts. The excellent low-light performance of this camera can also be guaranteed with the IR range of up to 80m, so users can be certain that no detail is missed.
The built-in Intelligent Video Analytics Pro (IVA Pro) supplies the camera with IVA Pro Building and IVA Pro Perimeter, bringing incredibly reliable deep-learning-based detection and tracking of persons and vehicles to a variety of scenes while also resisting false triggers. We recommend using PoE to power this camera as the installation is easier and more cost-effective, as the camera so not require a local power source.
DORI is a standard system used to define the ability of a camera to distinguish persons or objects within a covered area. The maximum distance at which a camera/lens combination can meet these criteria is shown below:
| DORI | Detect | Observe | Recognise | Identify |
| 5.9~13mm | 53m/172m | 21m/68m | 10m/34m | 5m/17m |
Parts Included:
- NBE-7704-ALX Camera
- TR20 key
- Mini screwdriver
- Grommet (IP66)
- Grommet (IP67)
- Quick installation guide
- Safety information
- 3x Installer UX labels

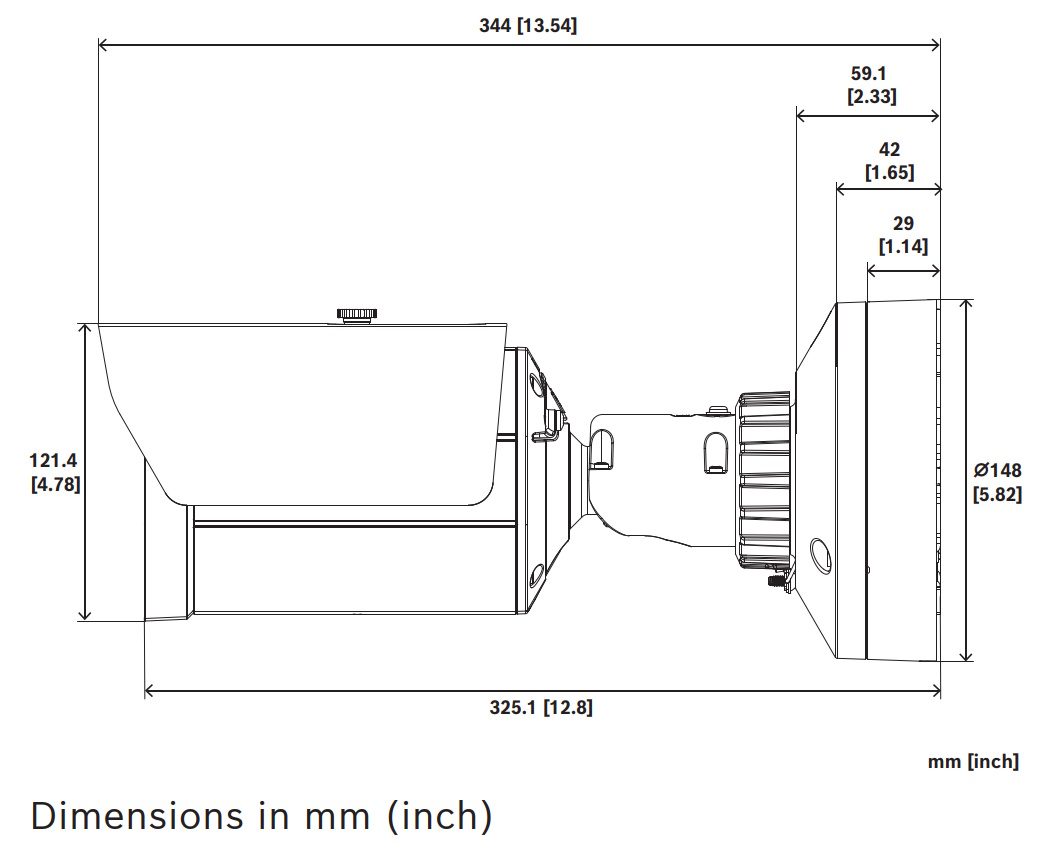

Dimensions in mm (inch):
