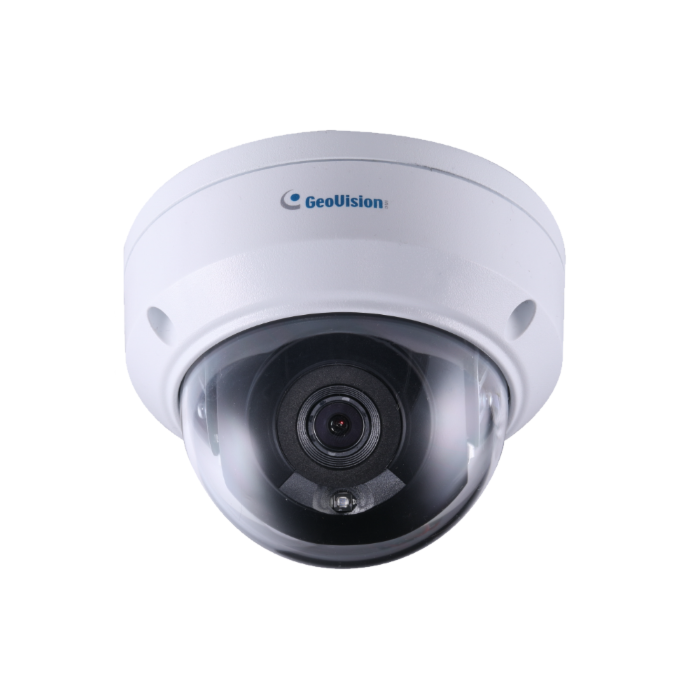

Geovision GV-ADR2701 2MP 2.8mm Mini Rugged Dome

Availability: Out of stock

£108.00 Incl VAT Excl VAT. £90.00

GeoVision GV-ADR2701 ~ EOL

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The GV-ADR2701 is now End of Life.
May we recommend the GV-ADR2702 as replacement or please feel free to browse our Geovision category.

The GV-ADR2701 is a 2MP mini dome camera from Geovision with a 2.8mm fixed lens and intelligent IR LEDs effective up to 30m. With IP67 rated weatherproof housing and the ability to pan (0°~360°) and tilt (0°~68°) this camera is a versatile choice for both internal and external applications.

The GV-ADR2701 uses wide dynamic range to improve image quality in areas with intense bright and dark areas which would normally cause an issue. The camera configuration allows users to adjust brightness, contrast, saturation, sharpness and orientation to provide the perfect image in any application. It also supports features such as motion detection to further improve security.

This camera supports triple streams from H.264, H,264 and MJPEG and can be powered by either PoE or a 12VDC power supply. Remote access is possible through internet explorer or through the GV-Eye app.

GV-ADR2701 packing list


Quick Start GuideUser ManualGeovision Brochure

Geovision Mount Guide

Product Datasheets

Geovision GV-ADR2701 2MP 2.8mm Mini Rugged Dome Datasheet (0.39MB)


GV-EYE app for mobile viewing

- GV-EYE app for android

- GV-EYE app for iOS

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Frequently bought together


Key Features

- 2MP
- 25fps @ 1920 x 1080
- 2.8mm focal length
- Triple streams from H.265, H.264, MJPEG
- IR distance up to 30m
- Day and night function
- IP66 weatherproof housing
- 12V DC/POE
- Wide dynamic range
- Defog
- 3D noise reduction
- Motion detection

GV-ADR2701 dimensions

2.8mm - Horizontal field of view: 105.2°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.

GV-ADR2701 overview

Additional Information

Weight 300.0000
Image chip size 1/2.7"
Image chip type Progressive Scan CMOS
Image Compression H.265,H.264,MJPEG
Audio N/A
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 1920 X 1080
Lens Mount M12 mount
Lens Focal Length 2.8mm
Viewing Angle 105.2°  Horizontal Field of View
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
IR Range Up to 30m
Max. Images per second 25
ONVIF Compatible Yes
Power Consumption max. 5W
Warranty 2 Years
Launch Date Spring 2018
