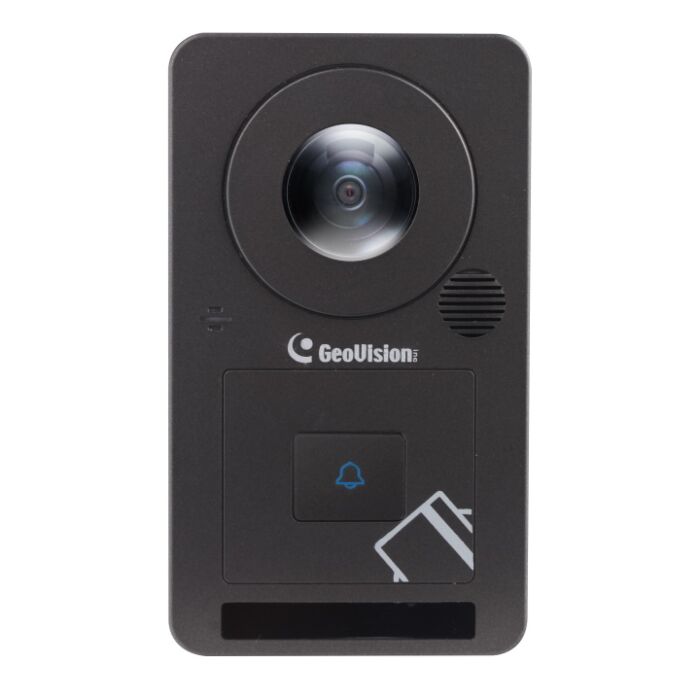

Geovision GV-CS1320 2MP H.264 Camera Access Controller with built-in reader

Availability: Contact Us for Stock Levels

£488.40 Incl VAT Excl VAT. £407.00

GeoVision GV-CS1320

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview


The Geovision GV-CS1320 is an access controller with built-in 2 megapixel cameras and 13.56MHz reader.

This unit recognises identification cards and grants access to up to 100,000 users. With a wide angle camera, the card and face mode enables the GV-CS1320 to perform face detection along with card verification before access can be granted.

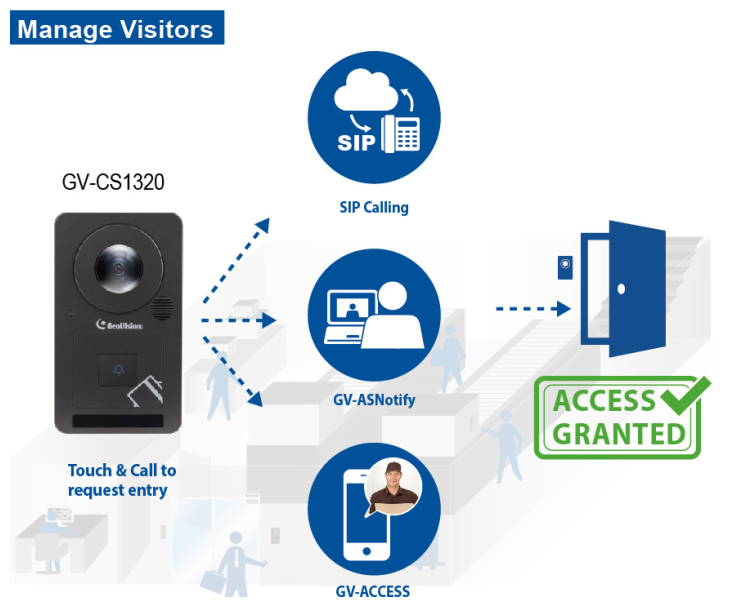

Visitors requesting entry permits can use the touchpad to be granted access. Operators can receive three types of notifications to grant access:

GV-ASNotify Program: when the GV-CS1320 is connected to GV-ASManager over the network, GV-ASNotify generates a notification message and snapshot whenever the touchpad is activated. The operator can use GV-ASNotify to watch live view and talk with the surveillance site

GV-Access Mobile App: the operator can also launch mobile app GV-Access to enable live view and voice communication with visitors at the door before permitting entry. The operator will receive an alert notification upon the trigger of the touchpad.

VoIP Calls: when the touchpad is activated, the GV-1320 will place a call to the operator through VoIP. The operator can then communicate with the visitor and enter the access code to open the door.

This solution eliminates the need of installing and maintaining a separate camera in addition to the card reader and a door entry system.


Packing List:
- Mounting plate
- Standard screw x 2
- Plastic screw anchor x 2
- Security screw
- Torx wrench
- Silica gel bag
- MicroSD card 2GB (formatted and installed)
- Software DVD
- Warranty card


Geovision GV-CS1320 User Manual
Geovision GV-CS1320 Installation Guide
Geovision Brochure
Geovision Mount Guide

Product Datasheets

Geovision GV-CS1320 2MP H.264 Camera Access Controller with built-in reader Datasheet (0.62MB)


THIS PRODUCT IS SHIPPED FROM GEOVISION'S EUROPEAN WAREHOUSE ~ PLEASE ALLOW 7-10 WORKING DAYS FOR DELIVERY.


GV-CS1320 Access

GV-EYE

GV-EYE app for mobile viewing

- GV-EYE app for android

- GV-EYE app for iOS


Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Key Features

Camera:
- 2MP progressive scan super low lux CMOS
- Minimum illumination at 0.02 lux
- Dual streams from H.264 and MJPEG
- Up to 15fps at 1920 x 1080
- Day and night function (with removable IR-cut filter)
- Built-in IR with effective distance up to 3m
- Ingress protection (IP66)
- 12V DC, 2.5A / PoE+ (IEEE 802.3at)
- Built-in microphone and speaker
- Wide dynamic range (WDR)
- Built-in microSD card slot
- Provides 180° panorama view
- ONVIF (Profile S) conformant

Reader:
- Built-in 13.56MHz reader (MIFARE DESFire, MIFARE Plus and MIFARE Classic)
- Support for GV-Proximity cards with GID (Geovision Identifier) to enhance security
- Access by card plus face detection
- RS-485 and network interface for connecting up to 2 readers

Access Control:
- Enabling different access control modes according to the Authentication Schedule: card only mode (default), card and face mode
- 1 door (one-way and two-way control)
- Touch pad for talk mode
- Receiving live view and capturing snapshots when card is presented
- iOS or Android app for event notifications
- SIP/VoIP calling support
- Anti-passback (APB) support
- 2 inputs, dry contact (Door Sensor / Exit Button)
- 1 relay outputs (Electric Lock)
- Support for GV-I/O Box 4 ports for sensor, alarm application and door bell activation


GV-CS1320 Dimensions

Additional Information

Weight 315.0000
Image chip size 1/2.8"
Image chip type Progressive scan super low lux CMOS
Image Compression H.264 & Motion JPEG
Audio Microphone and Speaker
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 1920 X 1080
Min. low-light lux 0.02
Lens Mount fixed lens
Lens Focal Length 1.7mm
Viewing Angle 180° Horizontal Field of View
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
IR Range Up to 3m
White Light Range N/A
Max. Images per second 15
ONVIF Compatible Yes
Power Consumption max. 25.5W
Warranty 1 Year
Launch Date Summer 2020
