Geovision GV-FER12700 12MP Fisheye Camera
- 1/1.7’’ progressive scan CMOS
- Triple streams from H.265, H.264 and MJPEG
- Up to 30 fps at 4000 x 3000
- Day and night (with removable IR‐cut filter)
- Wide Dynamic Range (WDR)
- Intelligent IR
- Vandal resistance (IK10+ for metal casing)
- Ingress protection (IP67)
- 12V DC / PoE+ (IEEE 802.3at)
- Built‐in micro SD card slot (SD/SDHC/SDXC/UHS‐I) for local storage
- USB slot for WiFi adapter or USB hard drive
- One sensor input and alarm output
- Built‐in microphone
- Digital Object Tracking
- Provides 360° and 180° panorama view
- Stereographic projection to reduce the distortion of the image
- Different angle of view accessible by multiple users at the same time
- Playback from any view angle and zoom level
- No mechanical moving parts
- 31 languages on Web interface
- ONVIF (Profile S) conformant
- Recording assigned by GV‐Edge Recording Manager (Windows version)
- TAICS IoT Cyber Security certified
Quick Start GuideGeovision BrochureGeovision Mount Guide

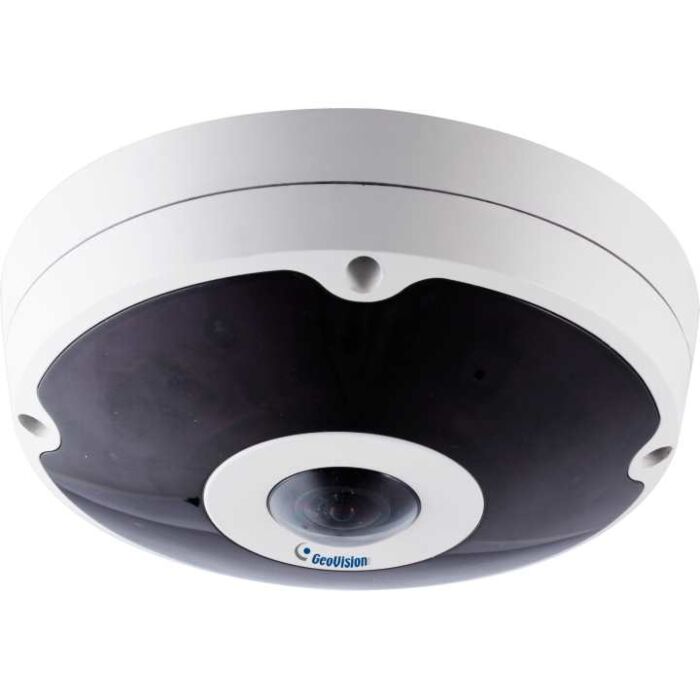

The Geovision GV-FER12700 is a 12 megapixel outdoor fisheye camera that allows users to monitor all angles of a location, whilst being ceiling mounted. This unit can also be wall mounted which will provide a different angle of view.
The GV-FER12700 supports the H.265 video compression, which enables users to save on bandwidth costs whilst maintaining the high quality video Geovision users have come to expect.
This Geovision camera is equipped with an automatic IR-cut filter and IR LEDs that are effective up to 30 metres, which makes the camera ideal for use in both day and night settings. The GV-FER12700 also has an IP67 and IK10+ housing which protects the camera against both harsh outdoor weather conditions and vandal attempts.
As well as this the GV-FER12700 has a range of exciting features including; stereographic projection in order to reduce any distortion of an image, playback from any angle of view and level or zoom and multiple users are able to access different angles of view of the camera for playback at the same time. The camera also has two-way audio with a built-in microphone which would be ideal for applications in public areas such as; shops, offices, schools and reception areas in healthcare settings.
Users can watch live view and utilise functions such as video recording, privacy mask and alert notification through the web interface without having to install any software. As well as this the camera is able to seamlessly integrate with Geovision's GV-DVR/NVR/VMS, providing advanced monitoring and video management features for users.
- Back Plate
- Plate Screw x 3
- Plastic Screw Anchor x 3
- Torx Wrench
- RJ-45 Connector
- Data Cable
- Terminal Block
- Installation Sticker
- Silica Gel Bag x 2
- Download Guide
- Warranty Card
|Country Of Origin||Taiwan|
|Image chip size||1/1.7"|
|Image chip type||Progressive Scan CMOS|
|Indoor / Outdoor||Indoors or Outdoors|
|Colour / monochrome||True Day/Night|
|POE Class||PoE Plus (802.3at)|
|Max. Resolution||4000 X 3000|
|Min. low-light lux||0.05|
|Supply Volts||12V DC or PoE+|
|Lens Mount||M12 mount|
|Lens Focal Length||1.2mm|
|Viewing Angle||180° Horizontal Field of View|
|Supplied with lens||Yes|
|IR Range||Up to 30m|
|Max. Images per second||30|
|Power Consumption||max. 17W|
|Launch Date||Spring 2021|
