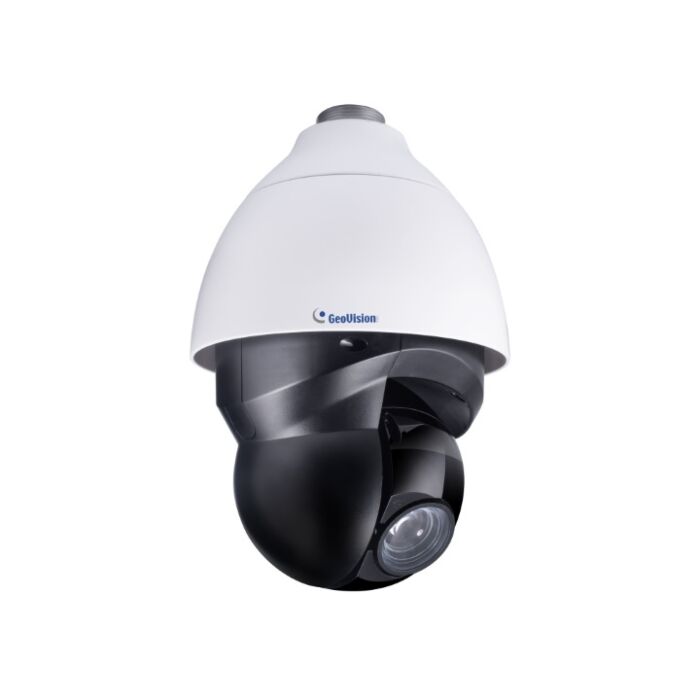

Geovision GV-QSD5731-IR 5MP IP Speed Dome Camera

Contact Us for Stock Levels
£2,148.00 £1,790.00

Key Features:

- 1/2.8" progressive scan low lux CMOS sensor

- Quad streams from H.265, H.264 or MJPEG

- Up to 30 fps at 2592 × 1944

- Min. illumination at 0.002 lux

- 33x optical zoom and 10x digital zoom

-vDay and Night function (with removable IR-cut filter)

Intelligent IR

- IR distance up to 150 m (500 ft)

- Wide Dynamic Range Pro (WDR Pro)

- Ingress protection (IP66)

- Vandal resistance (IK10 for housing)

- Temperature tolerance (-40°C ~ 50°C / -40°F ~ 122°F)

- Support for TV-out

-Two-way audio

- Built-in SD card slot (SDHC/SDXC, Class 10) for local storage

- High PoE (PoE++, 60W)

- Pan 360° endlessly

- Tilt from -20° to 100°

- Pan and tilt speed of up to 280°/sec

- PTZ movement (Preset, Cruise, Auto Pan, Sequence)

- PTZ auto tracking

- Electrical Image Stabilizer (EIS)

- Servo Feedback, returning the camera view to the previous position upon encountering external forces

- 3D noise reduction

- Privacy mask

- 12 languages on Web interface

- ONVIF (Profile G, S, T) conformant



Geovision GV-QSD5731-IR User Manual Geovision GV-QSD5731-IR Quick Start Guide Geovision Brochure Geovision Mount Guide

Product Datasheets

Geovision GV-QSD5731-IR 5MP IP Speed Dome Camera Datasheet (0.32MB)


GV-EYE app for mobile viewing

- GV-EYE app for android

- GV-EYE app for iOS

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

The Geovision GV-QSD5731-IR is a 5 megapixel outdoor speed dome camera featuring a 33x optical zoom and 10x digital zoom lens.

The camera features 360° endless pan and -20° ~ 100° tilting capacity to provides users with wide coverage. Users can programme and activate PTZ functions such as preset, auto pan and patrol by schedule. The GV-QSD5731-IR supports pan/tilt speeds ranging from a fast patrol of 280° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.

Servo Feedback and Electronic Image Stabiliser (EIS) technology is a feature of the GV-QSD5730 and the Servo Feedback technology will ensure the camera view returns to the previous position when encountering external force or environmental vibration. EIS technology is able to effectively produce stable images by actively sensing directional movement of the images and compensating according.

Packing List:

- M4 screw with rubber

- 3-Pin power terminal block (AC 24V)

- Pendant cap

- 14-Pin alarm/audio I/O terminal block

- Download guide

- Warranty card

Geovision GV-QSD5731-IR Dimensions
Country Of Origin Taiwan
Commodity Code 8525801990
Image chip size 1/2.8"
Image chip type Progressive Scan CMOS
Image Compression H.265,H.264,MJPEG
Audio Two-way
Indoor / Outdoor Outdoor
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 2592 X 1944
Min. low-light lux 0.002
Supply Volts 24V AC, PoE+
Lens Mount optical zoom lens
Lens Focal Length 4.6 ~ 152mm
Viewing Angle 55° ~ 2° Horizontal Field of View
Aspect ratio 4:3
Megapixels 5 MP
Supplied with lens Yes
Accepts auto-iris lens Yes
IR Range Up to 150m
Max. Images per second 30
PSU included N/A
ONVIF Compatible Yes
Power Consumption max. 44w
Warranty 2 Years
Launch Date Summer 2020
