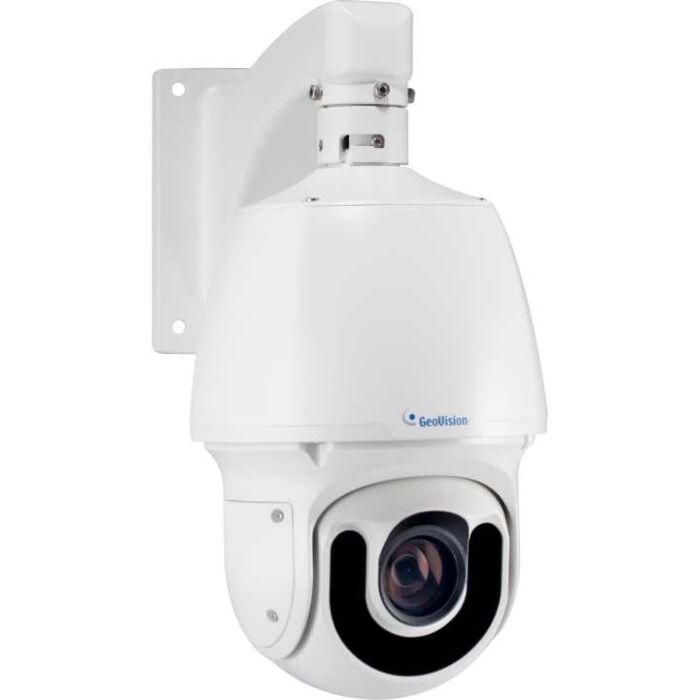

Geovision GV-SD3732-IR HD Speed Dome
- 1/2.8" progressive scan low lux CMOS sensor
- Min. illumination at 0.003 lux
- Triple streams from H.265, H.264 or MJPEG
- 33x optical zoom and unlimited digital zoom
- Intelligent IR
- IR distance up to 150 m (492 ft)
- Day and night function (with removable IR‐cut filter)
- Two sensor inputs and one alarm output
- Wide Dynamic Range Pro (WDR Pro)
- Vandal resistance (IK10 for metal casing)
- Two‐way audio
- Built‐in micro SD card slot (SDHC/SDXC, Class 10) for local storage
- Pan 360° endlessly
- Tilt from ‐15° to 90°
- Pan and tilt speed of up to 300°/sec and 240°/sec, respectively
- PTZ movement (Preset, Auto Pan and Patrol) PTZ patrol by schedule
- Smart settings (Cross line, Intrusion, Auto tracking)
- Intelligent Mark
- ONVIF (Profile G, S, T) conformant
Quick Start GuideGeovision BrochureGeovision Mount Guide
The Geovision GV-SD3732-IR HD speed dome 3 megapixel PTZ camera can simultaneously deliver three video streams in resolutions up to 2048 x 1536 at 30 frames per second.
Wide surveillance coverage is made possible thanks to features such as 33x optical zoom, unlimited digital zoom, 360° endless panning and -15°~90° tilting capacity.
Using built-in WDR Pro, the camera is able to process excellent, clear images of scenes subject to contrasting intensity of lights.
Capturing clear images is further improved when night vision is enhanced with its high-power LEDS which allow up to 150 meters (492ft) effective IR distance, even in low light settings
- 24V AC Power Adapter
- M4 Hex Key
- Waterproof Rubber Set
- Waterproof Guidelines
- Download Guide
- Warranty Card
|Image chip size||1/2.8"|
|Image chip type||Progressive scan super low lux CMOS|
|Indoor / Outdoor||Indoors or Outdoors|
|Colour / monochrome||True Day/Night|
|Max. Resolution||2048 X 1536|
|Min. low-light lux||0.003|
|Supply Volts||24V AC, 24V DC|
|Lens Focal Length||4.5~148.5mm|
|Viewing Angle||62.93° ~ 3.51° Horizontal Field of View|
|Supplied with lens||Yes|
|Accepts auto-iris lens||Yes|
|IR Range||Up to 150m|
|Max. Images per second||60|
|Power Consumption||max. 52.5W|
|Launch Date||June 2019|
