Geovision GV-TDR2704 2MP Mini Fixed Rugged Dome Camera
SKU: GV-TDR2704~EOL
Out of stock
The GV-TDR2704 is now End of Life.
May we recommend the GV-TDR2705 as a direct replacement for this model.
Key Features:
- 1/2.7" progressive scan low lux CMOS sensor
- Choice of focal lengths (2.8mm or 4mm)
- Min. illumination at 0.01 lux
- Dual streams from H.265, H.264 or MJPEG
- Up to 30 fps at 1920 × 1080
- Intelligent IR, IR distance up to 30 m (100 ft)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHSâ€I, Class 10) for local storage
- 3-axis mechanism (pan / tilt / rotate)
- Day and Night function (with removable IR-cut filter)
- Ingress protection (IP67), Vandal resistance (IK10)
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- Defog
- 3D noise reduction, Motion detection, Tampering alarm, Line crossing detection
- Text overlay
- Privacy mask
- 12 languages supported
- ONVIF (Profile G, S, T) conformant
This camera can be powered via 12V DC or PoE.
We recommend using PoE for ease of use.
Please note: this product is supplied without a power supply and so this will need to be purchased separately.
Geovision Camera User Manual
Geovision Camera Quick Start Guide
Geovision Brochure
Geovision Mount Guide
This product will need to be fetched from European stock.
Please contact us for stock levels of this product.
If in stock in Europe please allow 7-10 working days for delivery.
- GV-EYE app for android
-GV-EYE app for iOS
Details

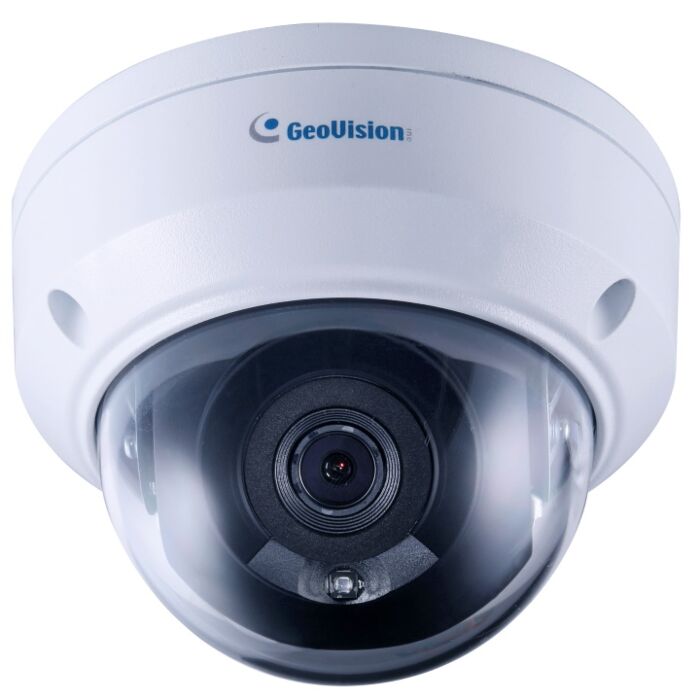

The Geovision GV-TDR2704 is a 2-megapixel mini fixed rugged dome camera that has been designed for outdoor use with its IP67 weather-resistant and IK10 vandal resistant housing. The camera's housing protects the camera against harsh outdoor weather conditions such as rain, as well as dust and the IK10 rating protects the camera against vandal attempts. This makes the camera ideal for use in a wide range of outdoor applications including to secure the outside of office buildings, home and shops.
As well as this the GV-TDR2704 comes with a choice of focal lengths, users can select either a 2.8mm or 4mm lens. The 2.8mm provides users with a 113° horizontal field of view and the 4mm provides a 91° horizontal field of view. The focal length options enable users to select which lens would best suit their application.
The GV-TDR2704 supports H.265 video codec which enables the camera to achieve a better compression ratio whilst maintaining high-quality images at reduced network bandwidths. Using the H.265 codec over H.264 saves users up to 80% on storage costs when compared to the costs of running on H.264.
This camera can be powered by either PoE (Power over Ethernet) or 12 V DC power supply, enabling users to select which best suits their requirements. We would normally recommend using PoE as this means you will only need to run one cable to the camera for both power and data.
Other features of the camera include; an automatic IR-cut filter and IR LEDs which allow the camera to provide surveillance in both day and night scenarios, a 3-axis mechanism (pan/tilt/rotate) for ease of installation, a built-in microSD/SDHC/SDXC/UHS-I for onboard storage and WDR (Wide Dynamic Range) Pro, enabling the camera to produce clear images regardless of conditions.
GV-TDR2704 Packing List:
- Waterproof rubber set
- Screw kit
- Torx wrench
- Drill template paster
- Download guide
- Warranty card
