Geovision GV-TDR4704 4MP Mini Fixed Rugged Dome Camera
SKU: GV-TDR4704~EOL
Out of stock
The GV-TDR4704 is now End of Life.
We recommend the GV-GDRF4800 as a suitable replacement.
Key Features:
- 1/3" progressive scan super low lux CMOS sensor
- Min. illumination at 0.003 lux
- Dual streams from H.265, H.264 or MJPEG
- UP to 30fps at 2688 x 1520
- 2.8mm or 4mm focal length options
- Intelligent IR
- Day and night function with removable IR-cut filter
- Wide Dynamic Range Pro (WDR Pro)
- IR distance up to 30m
- Built-in microSD/SDHC/SDXC/UHS-I card slot for local storage
- 3-axis mechanism (pan/tilt/rotate)
- Ingress protection (IP67)
- Vandal resistance (IK10)
- 12V DC / PoE IEEE802.3af
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- 12 languages supported
- ONVIF (Profile G, S, T) conformant
This camera can be powered via 12V DC or PoE.
We recommend using PoE for ease of use.
Please note this camera is supplied without a power supply.
Geovision Camera User Manual
Geovision Camera Quick Start Guide
Geovision Brochure
Geovision Mount Guide
This product will need to be fetched from European stock.
Please contact us for stock levels of this product.
If in stock in Europe please allow 7-10 working days for delivery.
- GV-EYE app for android
-GV-EYE app for iOS
Details

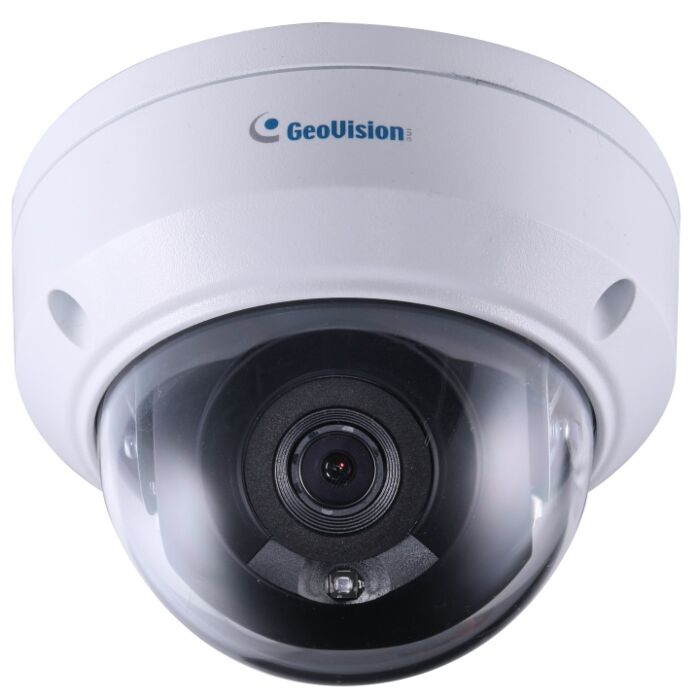

The Geovision GV-TDR4704 is a 4-megapixel mini dome camera equipped with an automatic IR-cut filter and IR LEDs effective up to 30m for high-quality images both day and night surveillance. Not only this but WDR (Wide Dynamic Range) Pro enables the GV-TDR4704 to process scenes with contrasting intensities of light and still produce clear quality images.
The GV-TDR4704 has two focal length options for the user to choose from:
- 2.8mm ~ 101° Horizontal Field of View
- 4mm ~ 83.7° Horizontal Field of View
The camera has an IP67 weather-resistant and IK10 vandal-resistant housing which protects the camera against both harsh outdoor weather conditions and vandal attempts.
The GV-TDR4704 supports the H.265 video codec to enable the device to achieve a better compression ratio compared to H.264 and MJPEG. This means the camera is able to maintain the high-quality images customers have come to expect all whilst reducing network bandwidth.
With a choice of either 12V DC or PoE (Power over Ethernet) power, the device could not be easier to install. Selecting PoE will make the installation even simpler as both the power and data will be transported across the one cable saving both installer time and cost. This is why we recommend using PoE to power your device. Our recommended PoE injector can be found in the related products section on the product page.
Packing List:
- GV-TDR4704
- Water-resistant rubber set
- Screw kit
- Torx wrench
- Drill template paster
- Download guide
2.8mm Lens - Horizontal field of view: 101°
4mm Lens - Horizontal field of view: 83.7°
For help on figuring out which focal length is best for you please see here.
