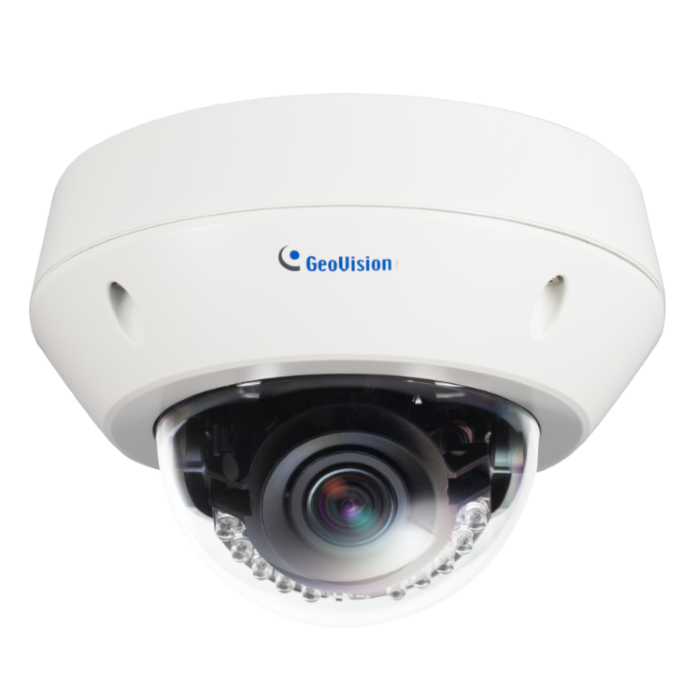

Geovision GV-EVD5100 5MP Vari-Focal Dome Camera

Out of stock
GV-EVD5100 ~ EOL
£440.40 £367.00

The Geovision GV-EVD5100 is now End of Life.

There is no direct replacement but please feel free to browse our Geovision category

The Geovision GV-EVD5100 is a 5MP dome camera with a vari-focal 2.8mm~12mm lens and intelligent IR LEDs effective up to 30m. Fitted with IP67 rated weatherproof housing and IK10 vandal resistant housing, this camera is a sturdy choice for outdoor applications. The GV-EVD5100 has a 3-axis mechanism for precise set up ensuring any area of interest can be easily covered. This camera also supports two way audio for the connection of an external microphone and speaker. With a range of image enhancers such as wide dynamic range, back light compensation, 3D noise reduction and image configuration such as contrast, brightness and saturation, the GV-EVD5100 can provide excellent video quality day or night. Security is further improved with the use of motion detection, tampering alarm and privacy mask. This camera supports on board storage and H.264 compression. It can be powered by a 12VDC power supply or by PoE and remote access is possible through internet explorer or the GV-Eye app.

GV-VD5100 packing list

Vandal Resistant Dome Quick Start GuideGeovision Brochure

Geovision Mount Guide

Product Datasheets

Geovision GV-EVD5100 5MP Vari-Focal Dome Camera Datasheet (1.39MB)


GV-EYE app for mobile viewing

- GV-EYE app for android

- GV-EYE app for iOS

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Frequently bought together

  1. Geovision GV-EVD5100 5MP Vari-Focal Dome Camera
  2. +
  3. Level One POI-2002 Single Port POE Injector
  4. +
  5. HIKV12VDC 12V DC PSU for Hikvision Cameras
Total price: £0.00INCL VAT
Ex Vat: £0.00

- 5MP - Dual streams from H.264, MJPEG - 30fps @2592 x 1944 - IK10 vandal resistant housing - IP67 weatherproof housing - P-iris lens for auto iris control - Intelligent IR effective up to 30m - 3-axis mechanism - DC 12V/PoE - Two-way audio - Wide dynamic range - 3D noise reduction technology - Smart streaming - Defog - Motion detection - Tampering alarm - 31 languages on web interface


2.8mm - 12mm: Horizontal field of view: 92° to 32°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.

GV-VD overview

Image chip size 1/3.2"
Image chip type Progressive Scan CMOS
Image Compression H.265,H.264,MJPEG
Audio Two-way
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP67
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 2592 X 1944
Min. low-light lux 0 Lux (IR LED ON)
Lens Mount Φ14
Lens Focal Length 2.8~12mm
Viewing Angle 92° ~ 32° Horizontal Field of View
Aspect ratio 4:3
Megapixels 5 MP
Supplied with lens Yes
Accepts auto-iris lens P-Iris control
IR Range Up to 30m
Max. Images per second 30
PSU included No
ONVIF Compatible Yes
Power Consumption max. 7W
Warranty 2 Years
Launch Date Spring 2018
