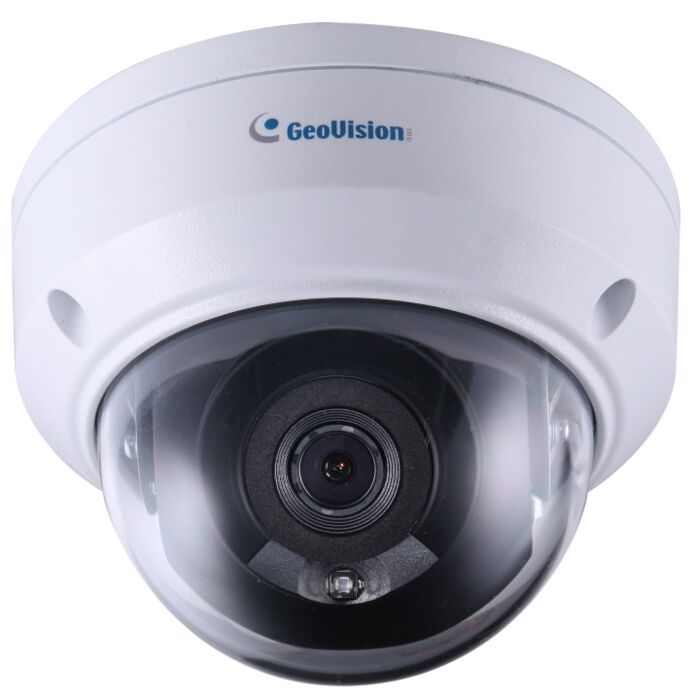

Geovision GV-TDR4803 4MP AI Mini Fixed Rugged Dome Camera
SKU: GV-TDR4803
Contact Us for Stock Levels
Key Features:
- AI deep learning
- AI Perimeter Protection & Classification (human, vehicle)
- 1/3" progressive scan super low lux CMOS sensor
- Min. illumination at 0.003 lux
- Triple streams from H.265, H.264 or MJPEG
- Wide Dynamic Range Pro (WDR Pro)
- Up to 30fps at 2688 x 1520
- 2.8mm or 4mm focal length options
- Intelligent IR
- Day and night function with removable IR-cut filter
- IR distance up to 30m
- Built-in microSD/SDHC/SDXC/UHS-I card slot for local storage
- 3-axis mechanism (pan/tilt/rotate)
- Ingress protection (IP67)
- Vandal resistance (IK10)
- Two-way audio
- 12V DC / PoE IEEE802.3af
- Operating temperature -30°C ~ 60°C
- Multiple language options
- ONVIF (Profile G, S, T) conformant
This camera can be powered via 12V DC or PoE.
We recommend using PoE for ease of use.
Please note this camera is supplied without a power supply.
Geovision Camera User Manual
Geovision Camera Quick Start Guide
Geovision Brochure
Geovision Mount Guide
This product will need to be fetched from European stock.
Please contact us for stock levels of this product.
If in stock in Europe please allow 7-10 working days for delivery.
- GV-EYE app for android
-GV-EYE app for iOS
Details
The Geovision GV-TDR4803 is a 4-megapixel mini rugged dome camera empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. Integrated with Geovision Video Management Software (VMS), it supports AI perimeter protection, real-time alert, events playback and more.
The GV-TDR4803 has two focal length options for the user to choose from:
- 2.8mm ~ 101° Horizontal Field of View
- 4mm ~ 83.7° Horizontal Field of View
The camera is ideal for use in a wide range of indoor and outdoor applications thanks to the unit's IP67 weather-resistant and IK10 vandal-resistant housing. The camera is protected against both harsh outdoor weather conditions and vandal attempts. The GV-TDR4803 is ideal for use in applications including homes, offices, shops, schools, banks, train stations, city centres, car parks etc.
Equipped with an automatic IR-cut filter and IR LED effective up to 30m, the camera is able to produce high-quality images in both day and night scenarios. Not only this but WDR (Wide Dynamic Range) Pro enables the GV-TDR4803 to process scenes with contrasting intensities of light and still produce clear quality images.
The GV-TDR4803 supports the H.265 video codec to enable the device to achieve a better compression ratio compared to H.264 and MJPEG. This means the camera is able to maintain the high-quality images customers have come to expect all whilst reducing network bandwidth.
With a choice of either 12V DC or PoE (Power over Ethernet) power, the device could not be easier to install. Selecting PoE will make the installation even simpler as both the power and data will be transported across the one cable saving both installer time and cost. This is why we recommend using PoE to power your device. Our recommended PoE injector can be found in the related products section on the product page.
Packing List:
- GV-TDR4803
- Water-resistant rubber set
- Screw kit
- Drill template paster
- Torx wrench
- Download guide
2.8mm Lens - Horizontal field of view: 101°
4mm Lens - Horizontal field of view: 83.7°
For help on figuring out which focal length is best for you please see here.
