Geovision GV-TMEB5800 5MP AI Thermal & Optical IR Eyeball Dome Camera
SKU: GV-TMEB5800
Available for delivery in 7~10 days
Key Features:
Optical:
- 1/2.7" progressive scan CMOS sensor
- AI deep learning: AI Perimeter Protection & Classification (human and vehicle)
- Min. illumination 0.02lux
- Triple streams from H.265, H.264 and MJPEG
- Up to 30fps at 2592 x 1944
- Intelligent IR
- IR distance up to 30m
- Day and night function
- IP66 rated
- Built-in microphone and speaker
- 3-axis mechanism
- WDR pro
- AI analytics (line crossing, target counting, face detection)
- Sound and light warning on AI detection events
- Built-in microSD card slot
Thermal:
- Vanadium oxide uncooled focal plane detector, 12 um pixel size
- Thermal sensitivity: ≤50 mK
- Spectral range: 8~14 um
- Up to 17fps at 256 x 192 (output resolution 1280 x 720)
- AI analytics (fire detection, temperature exception alarm)
- Sound and light warning
This camera can be powered via 12V DC or PoE.
We recommend using PoE for ease of use.
Please note this camera is supplied without a power supply.
Geovision Thermal Camera User Manual
Geovision Thermal Camera Quick Start Guide
Geovision Brochure
Geovision Mount Guide
This product will need to be fetched from European stock.
Please contact us for stock levels of this product.
If in stock in Europe please allow 7-10 working days for delivery.
- GV-EYE app for android
-GV-EYE app for iOS
Details

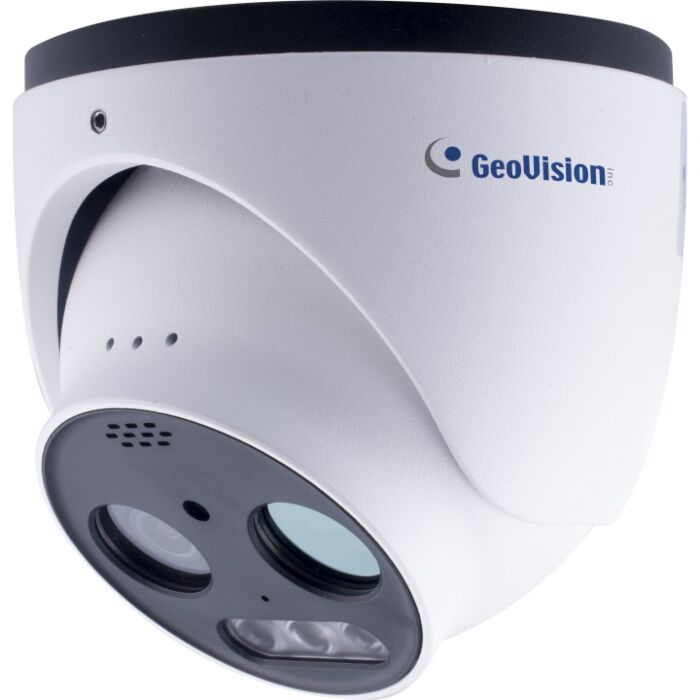

The Geovision GV-TMEB5800 is a 5-megapixel AI-enabled thermal eyeball camera that combines dual thermal and optical images for perimeter protection and fire prevention.
The camera features one thermal lens and one optical lens, the thermal lens detects fires and measures predefined temperatures, triggering lighting and alarms.
With a focal length of 4mm, the optical lens provides users with an 81° horizontal field of view. As well as this the camera features 2 IR LEDs with a maximum IR distance of 30m. This makes the GV-TMEB5800 ideal for use in both day and night-time scenarios. As well as this, the unit features an IP66-rated housing which makes the camera suitable for use in both indoor and outdoor applications.
Thermal Specs:
| Image Sensor | Vanadium oxide uncooled focal plane detector |
| Picture Elements | 256 (H) x 192 (V) (resolution of output image 1280 x 720 |
| Pixel Size | 12 um |
| Thermal Sensitivity | ≤50 mK (@25°C, F#=1.0) |
| Spectral Range | 8~14 um |
| Gain Control | Auto, Manual |
| Focal Length | 3.2mm |
| Maximum Aperture | F/1.1 |
| Horizontal Field of View | 56° |
| Minimum Focusing Distance | 0.5m |
| Colour Palettes | Black hot, White hot, Iron Oxide Red, Rainbow, Lava |
(Optical lens specs can be found in the section below)

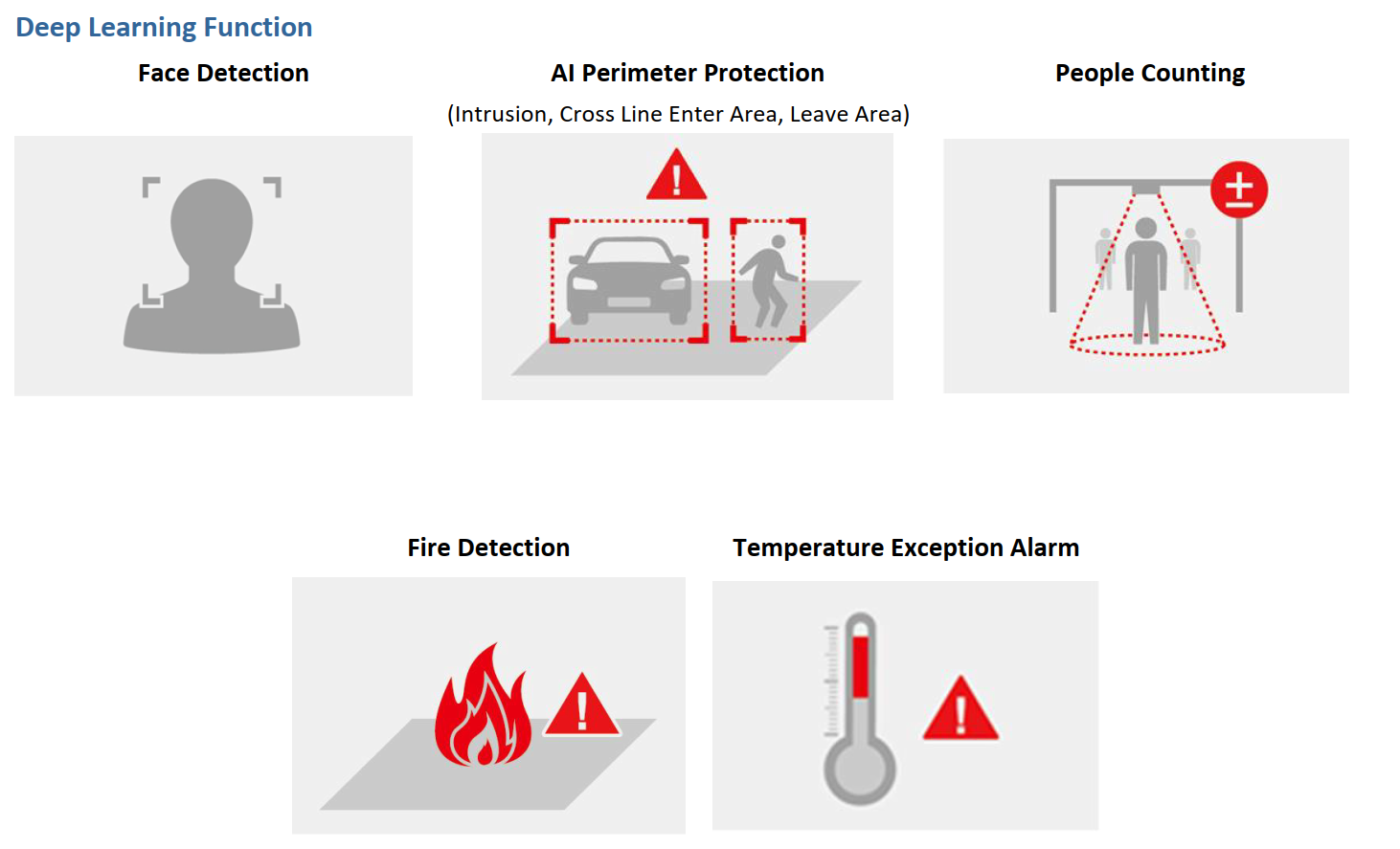

Deep learning algorithms enable the GV-TMEB5800 to identify and classify objects. The optical lens is able to distinguish humans and vehicles from other moving objects for more accurate detection. As well as this both the optical and thermal features AI perimeter analytics:
| Thermal | Optical |
| Fire detection | Line Crossing |
| Temperature Exception Alarm | Region Entrance |
| Line Crossing | Region Exiting |
| Region Intrusion: with Human & Vehicle classification | Region Intrusion: with Human & Vehicle classification |
| Target Counting | |
| Face Detection |
Packing List:
- Waterproof rubber
- Screw kit
- Hex key
- Drill template paster
- Download guide
