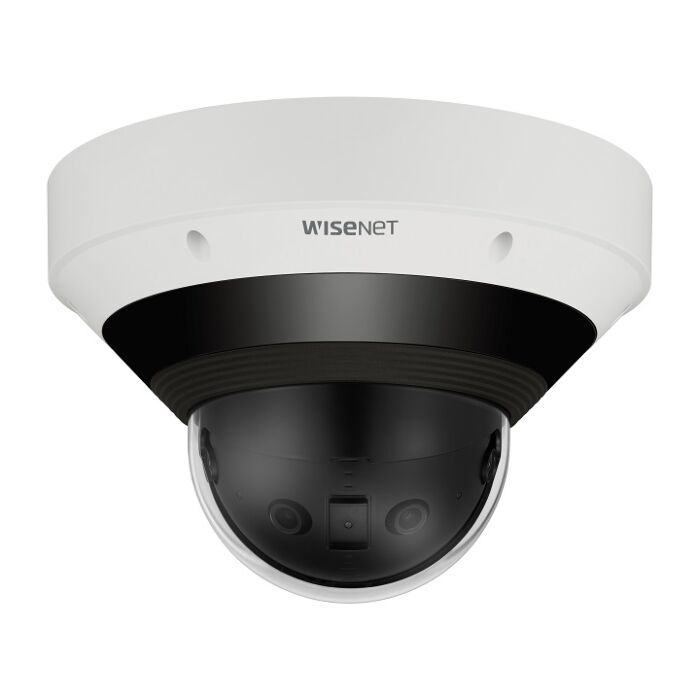

Wisenet PNM-9031RV 15MP H.265 Panoramic Camera
SKU: PNM-9031RV
Contact Us for Stock Levels
Key Features:
- Max. 15MP 192° panoramic stitching image
- Panoramic channel
- IR viewable length maximum 20m, WiseIR
- H.265/H.264 : Max. 20fps
- MJPEG : Max. 15fps
- H.265, H.264, MJPEG codec, WiseStreamII supported
- Motion, defocus detection, virtual line, enter/exit
- (Dis)Appear, Audio detection, Motion detection, Handover, Heatmap
- MicroSD/SDHC/SDXC 2 slots
- PoE+ or 12V DC power
- IP66 rating
- IK10 rating
- NEMA4X
- TPM 2.0 (FIPS 140-2 Level 2)
- ONVIF
This product can be powered by 12V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Wisenet PNM-9031RV User Manual
Wisenet PNM-9031RV Quick Guide
Wisenet PNM-9031RV Online Help
Hanwha Solutions Brochure
Hanwha Techwin Product Portfolio
This product may not be immediately available from UK stock, in which case it may take 7~14 days to fetch it from their European warehouse.
Please contact us before purchasing for an accurate lead time.
Useful Wisenet Tools
- Wisenet Viewer
- Wisenet WAVE
- Wisenet Device Manager
Details
The Wisenet PNM-9031RV is a 15-megapixel 4x lens panoramic camera. With this camera, operators can use fewer cameras to monitor events with 4 lenses built into one. This makes the PNM-9031RV a highly cost-effective option for areas that require high-quality images over a large area.
The camera features WiseIR integrated illuminators as well as independent zones with auto and manual adjustments, this ensures uninterrupted monitoring in low-light conditions. IR is effective up to 30m, for all four lenses of the device. The 192° horizontal field of view and 65° vertical field of view provides users with a wide area of coverage.
Not only this but the unit is equipped with a range of video analytics including motion detection, defocus detection, virtual line, enter/exit detection, audio detection, heat-mapping and appear/disappear. The PNM-9031RV is easy to install with its hanging hinge design, metal cord harness and push mount clips. A USB connector makes for easy setup via a computer or via WiFi using an optional USB dongle and the Wisenet Installation App.
The PNM-9031RV features an IP66 weather-resistant and IK10 vandal-resistant housing protecting the camera against both harsh outdoor weather conditions and vandal attempts. This enables the camera to be installed in a range of indoor and outdoor applications including, shopping centres, car parks, warehouses, parks, city centres etc.
Key Benefits:
- Reduce installation and infrastructure costs by replacing multiple cameras with on multi-sensor camera, seamlessly providing HD panoramic view over one Ethernet connection
- Save on VMS licenses, Wisenet WAVE and other leading VMS, only requires one channel license
- Excellent image quality in low-light conditions with multiple auto IR illuminating the scene for all image sensors
- Creating multiple virtual channels from any area of the panoramic view
- Robust and durable in any weather with IP66, IK10 and NEMA4X certifications
- Installation aids such as WiFi dongle (optional) and CVBS video output
- NDAA compliant

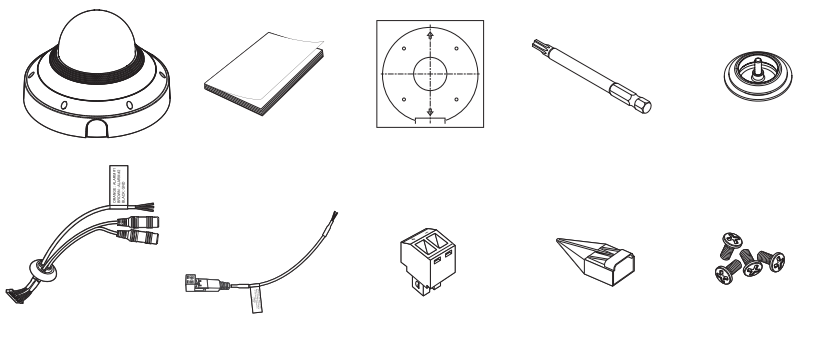

Packing List:
- PNM-9031RV x 1
- Quick guide x 1
- Power terminal block x 1
- Template x 1
- Power cable x 1
- Audio/alarm cable x 1
- Cable bushing x 1
- Machine screws x 4
- Cap installer x 1
- Screw bit x 1
4.3mm: Horizontal field of view: 192°
For help on figuring out which focal length is best for you please see here.
