Wisenet PNM-C9022RV 8MP AI IR Panoramic Camera
SKU: PNM-C9022RV
Contact Us for Stock Levels
Key Features:
- Max. 8MP panoramic stitched image
- 2.8mm fixed focal x 4
- IR viewable length max. 20m
- WiseIR
- Max. 20fps
- H.265, H.264, MJPEG codec
- Day and Night (ICR)
- extremeWDR (120dB)
- WiseNR II (based on AI engine)
- WiseStream III (based on AI engine)
- Hard-coated dome bubble
- IP66 weather-resistant
- IK10 vandal-resistant
- NEMA 250 type 4X
This product can be powered by either PoE+ or 12V DC PSU.
We usually recommend PoE+ for ease of installation.
Please note: this product does not come with a power supply.
Wisenet PNM-C9022RV User Manual
Hanwha Solutions Brochure
Hanwha Product Portfolio
This product may not be immediately available from UK stock, in which case it will take 7~14 days to fetch it from their European warehouse.
Please contact us before purchasing for an accurate lead time.
Useful Wisenet Tools
- Wisenet Viewer
- Wisenet WAVE
- Wisenet Device Manager
Details

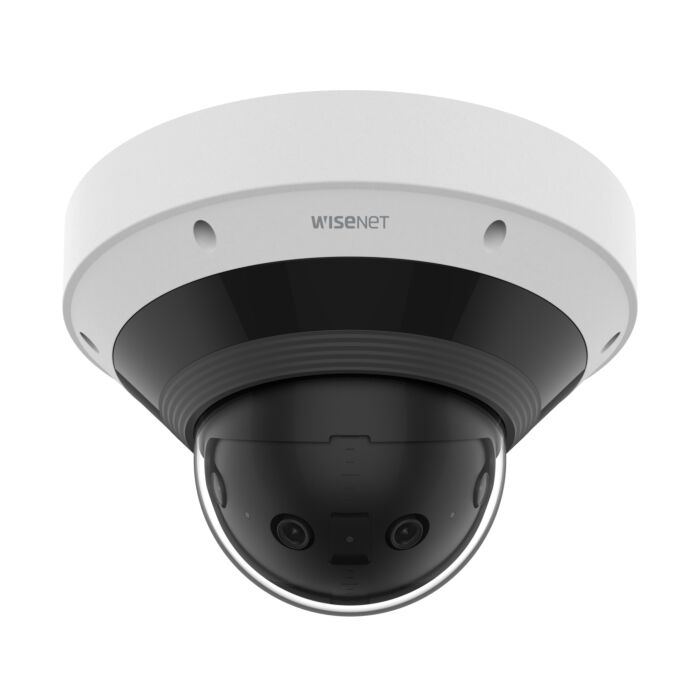

The Wisenet PNM-C9022RV is an 8-megapixel panoramic camera which has been designed to be a cost-effective solution for applications that require high-quality images over a large area.
Featuring WiseIR the PNM-C9022RV has a maximum IR viewable length of 20m, enabling the camera to provide high-quality images in both day and night applications. With an IP66 and IK10-rated housing, the camera is protected against both harsh outdoor weather conditions and vandal attempts.
Equipped with four lenses the camera provides an 8-megapixel stitched image with a 209° horizontal field of view making it ideal for use in a wide range of applications including car parks, shopping centres, warehouses, parks, city centres etc.
The PNM-C9022RV features a range of analytics including; object detection, virtual line (crossing/direction), virtual area (loitering/intrusion/enter/exit), defocus detection, motion detection, tampering, audio detection, sound classification, and virtual area (appear/disappear). As well as this the camera is equipped with object classification (person/vehicle).
Please Note: we are aware of growing concern for public safety and privacy regarding CCTV cameras. Hanwha Europe has stated: "To be clear, Hanwha doesn't offer a live facial recognition solution in Europe. And, as a Korean NDAA-compliant manufacturer with complete control over its supply chain and a strong background in cyber security, we are strong advocates for the responsible use of video surveillance technology".
DORI
This is a standard system used to define the ability of a camera to distinguish persons or objects within a covered area. The maximum distance at which a camera/lens combination can meet these criteria is shown below:
| Detect | Observe | Recognise | Identify |
| 52.2m | 20.9m | 10.4m | 5.2m |

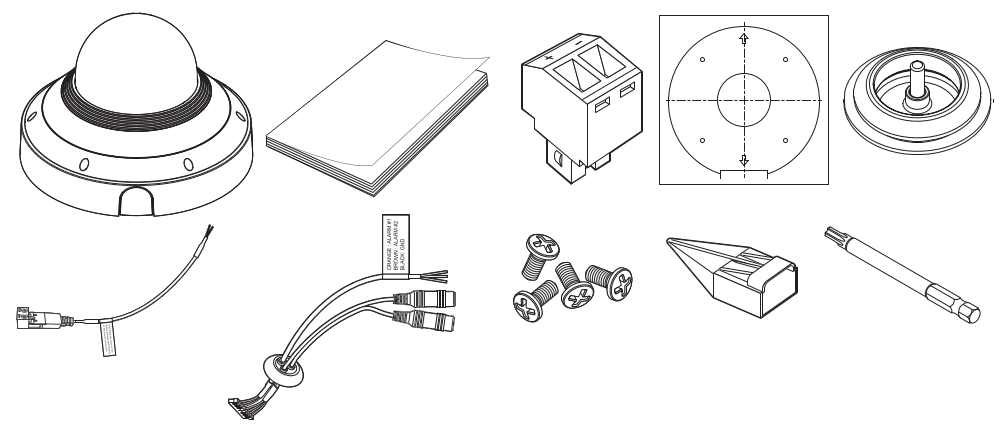

Packing List:
- PNM-C9022RV x 1
- Quick guide x 1
- Power terminal block x 1
- Template x 1
- Power cable x 1
- Audio/alarm cable x 1
- Cable bushing x 1
- Machine screw x 4
- Cap installer x 1
- Screw bit x 1
