Wisenet XRN-420S 4 Channel PoE Network Video Recorder
SKU: XRN-420S
Contact Us for Stock Levels
Key Features:
- Up to 4 channels
- Up to 8 megapixels supported
- H.265, H.264, MJPEG codec
- AI Search: Object Attribute(when integrated with Wisenet AI camera)
- 50Mbps network camera recording
- Plug and play by 4 PoE (LAN, 10/100), 1 PoE (WAN, 1Gbps)
- Max. 1HDD (Max. 6TB)
- HDMI/VGA local monitor
- ARB supported
- P2P service (QR code connect) support
- Multiple language options
- Operating system Linux
- Operating temperature 0°C ~ 40°C
- ONVIF
Wisenet NVRs are supplied without hard drives, we recommend the WD Purple HDDs or the Toshiba HDDs for this product.
Wisenet NVR User Manual
Wisenet NVR Quick Guide
Wisenet X Series Brochure
Hanwha Brochure 2021
Wisenet Product Line Up
This product may not be immediately available from UK stock, in which case it will take 7~14 days to fetch it from their European warehouse.
Please contact us before purchasing for an accurate lead time.
Useful Wisenet Tools
- Wisenet Viewer
- Wisenet WAVE
- Wisenet Device Manager
Details
The Wisenet XRN-420S is a 4 channel network video recorder with a 4 Port PoE (Power over Ethernet) switch built-in. The switch enables users to directly connect up to 4 x 8-megapixel network cameras to the unit.
The XRN-420S can be integrated with the Wisenet AI (artificial intelligence) cameras enabling the AI search: Object Attribute function which includes people, face, vehicle and license plate.
As well as this the NVR supports H.265, H.264 and MJPEG codecs, H.265 compression improves bandwidth efficiency compared to H.264 compression. This saves users on storage costs whilst maintaining the high quality that users have come to expect.
The XRN-420S has 1 x hard disk drive bay, and features HDD overwrite so when the disk is full it will automatically start writing over the oldest footage.
The unit is ideal for small-scale applications such as homes and small offices that require a robust, reliable and cost-effective recording solution.
NVR Features:
- New UI 2.0
- Supports instant viewer
- Supports BestShot view
- Bookmark function
- Thumbnail function
- Supports thermal imaging cameras/PTZ linked camera
- Supports a range of 4K camera resolutions
- Outputs a 4K high definition image using HDMI
- Supports ONVIF Profile S standard and RTP/RTSP protocols
- Display the HDD operation status by HDD SMART
- HDD overwrite enabled
- Simultaneous play of 4 channels
- Various search modes (time, event, smart, text, export ARB)
- Function to export using USB memory and external hard disk
- Alarm Input/Output
- Supports smartphone remote monitoring feature by P2P support

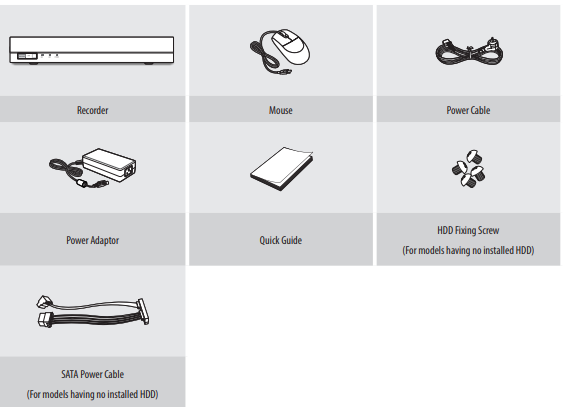

Package Contents:
- XRN-420S
- Mouse
- Power cable
- Power adapter
- Quick guide
- HDD fixing screw
- SATA power cable
