Wisenet QNV-7012R/QNV-7022R/QNV-7032R 4MP IR Vandal-Resistant Dome Camera
SKU: QNV-70x2R
Contact Us for Stock Levels
Key Features:
- Maximum 4MP resolution
- Colour: 0.15Lux (F2.0, 1/30sec), B/W: 0Lux (IR LED on)
- Maximum 30fps @ 4MP all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported
- Multiple streaming
- Motion detection, Tampering, Defocus detection
- Hallway view (90°/270°), LDC support
- MicroSD/SDHC/SDXC memory slot (128GB)
- IR viewable length 30m
- IP66 weather-resistant
- IK10 vandal-resistant
- ONVIF
This product can be powered by 12V DC or PoE.
We recommend using PoE.
Please note: this product does not come with a power supply.


Wisenet Q Series User Manual
Wisenet Q Series Quick Guide
Wisenet Q Series Online Help
Hanwha Solutions Brochure
Hanwha Techwin Product Portfolio

This product may not be immediately available from UK stock, in which case it will take 7 days to fetch it from their European warehouse.
Please contact us before purchasing for an accurate lead time.


Useful Wisenet Tools
- Wisenet Viewer
- Wisenet WAVE
- Wisenet Device Manager
Details
The Wisenet QNV-70x2R is a 4-megapixel dome camera, with a choice of 2.8mm, 4mm or 6mm focal lengths. This enables users to select the lens which provides them with the best area of coverage for their requirement.
The camera features an IP66 weather-resistant and IK10 vandal-resistant housing protecting the unit against both harsh outdoor weather conditions and vandal attempts. This makes the camera ideal for use in a wide range of both indoor and outdoor applications including offices, homes, shops and car parks.
Fitted with IR LEDs effective up to 30m and an auto (ICR) day and night lens, the QNV-70x2R can provide clear, quality images in both day and night scenarios. As well as this the camera features H.265, H.264 and MJPEG compressions, using the H.265 compression will save users on storage costs compared to H.264 and MJPEG compressions without compromising the quality of the images.
With a choice of either 12V DC or PoE power, the device could not be easier to install. Selecting PoE will make the installation even simpler as both the power and data will be transported across one cable, saving the installer on both time and cost.
Other features of the QNV-70x2R include motion detection, tampering detection, defocus detection, hallway view and LDC support. The camera is also equipped with a MicroSD/SDHC/SDXC memory slot for onboard storage.

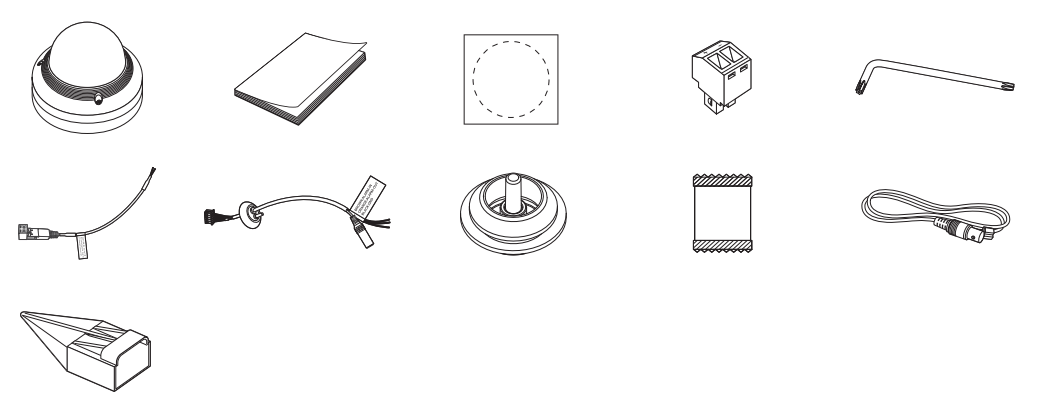

Packing List:
- QNV-70x2R x 1
- Quick guide x 1
- Template x 1
- Power terminal block x 1
- Torx L wrench x 1
- Card-type moisture absorbent x 1
- Power cable x 1
- Audio/alarm cable x 1
- Cable for the testing monitor x 1
- Cable bushing x 1
- Cap installer x 1
