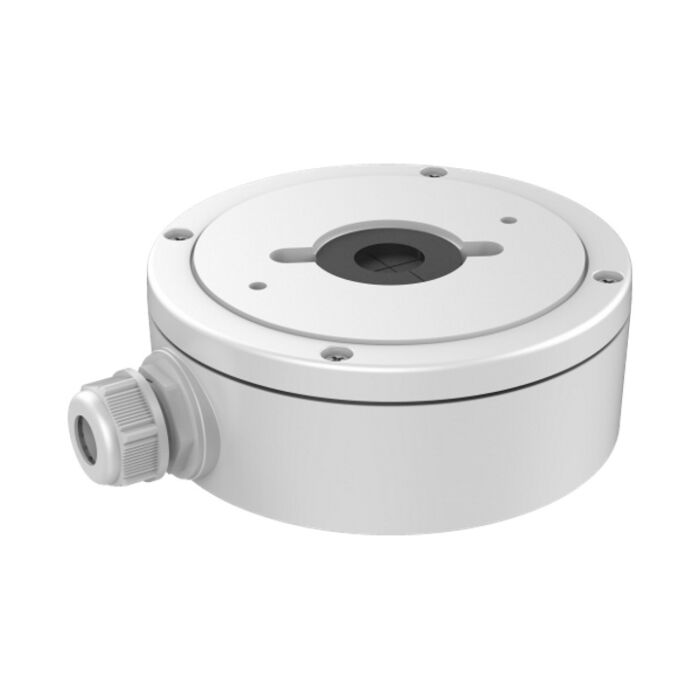

Hikvision DS-1280ZJ-DM22 Junction Box
SKU: DS-1280ZJ-DM22
Contact Us for Stock Levels
The DS-1280ZJ-DM22 is a junction box to be used with Hikvision's mini dome cameras.
A junction box offers a water tight space to contain the pig tail leads of the turret camera when mounting externally. We also recommend using a junction box in order to help with achieving the required viewing angle.
The junction box should be installed on the flat surface, the maximum load capacity of the bracket is 4.5Kg. If using within an outdoor application, the waterproof rubber seal is necessary. The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the bracket.
Details
Hikvision DS-1280ZJ-DM22 junction box for the below Hikvision Mini Dome cameras.
Easy IP 3.0 DS-2CD2545FWD-I
Easy IP 2.0+ DS-2CD2543G0-IS DS-2CD2563G0-IS DS-2CD2563G0-IWS
Reviews
Customer Reviews
The entry gland allows a Cat 5 connector to pass through, but doesn't close fully to the cable size. (It isn't possible to have an entry which is 20mm to close to a 6mm cable. I just blocked the whole from the inside to stop insects getting in)
